Page 32

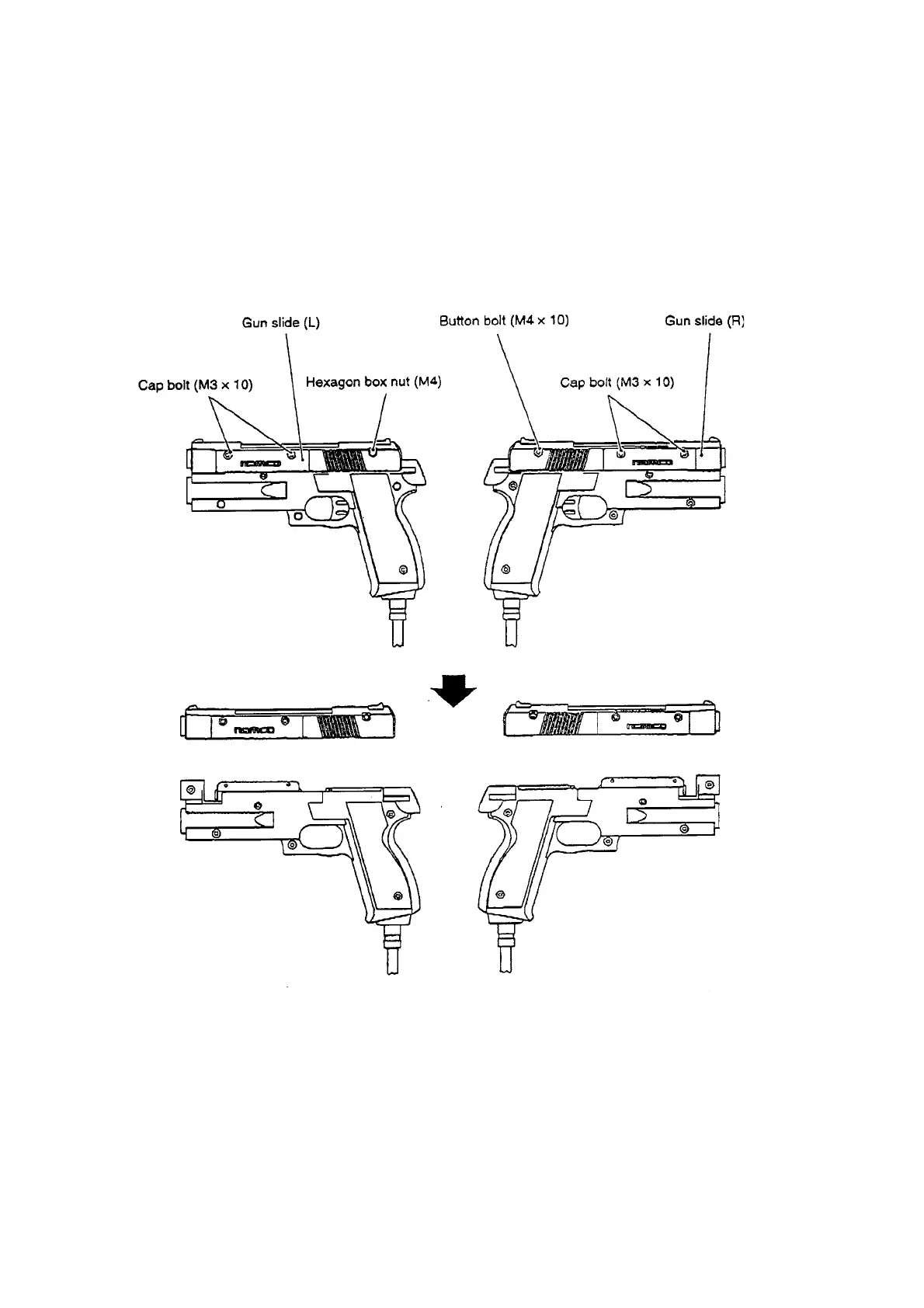

7-6-2 Removing the Gun Slide
1. Remove 4off cap screws (M3x10), 1off button screw (M4x25), and
1off hex nut (M4), and detach the gun slides (L) and (R).
2. Reassemble in reverse order.
