Page 38
5-2 Adjusting the Level Adjusters

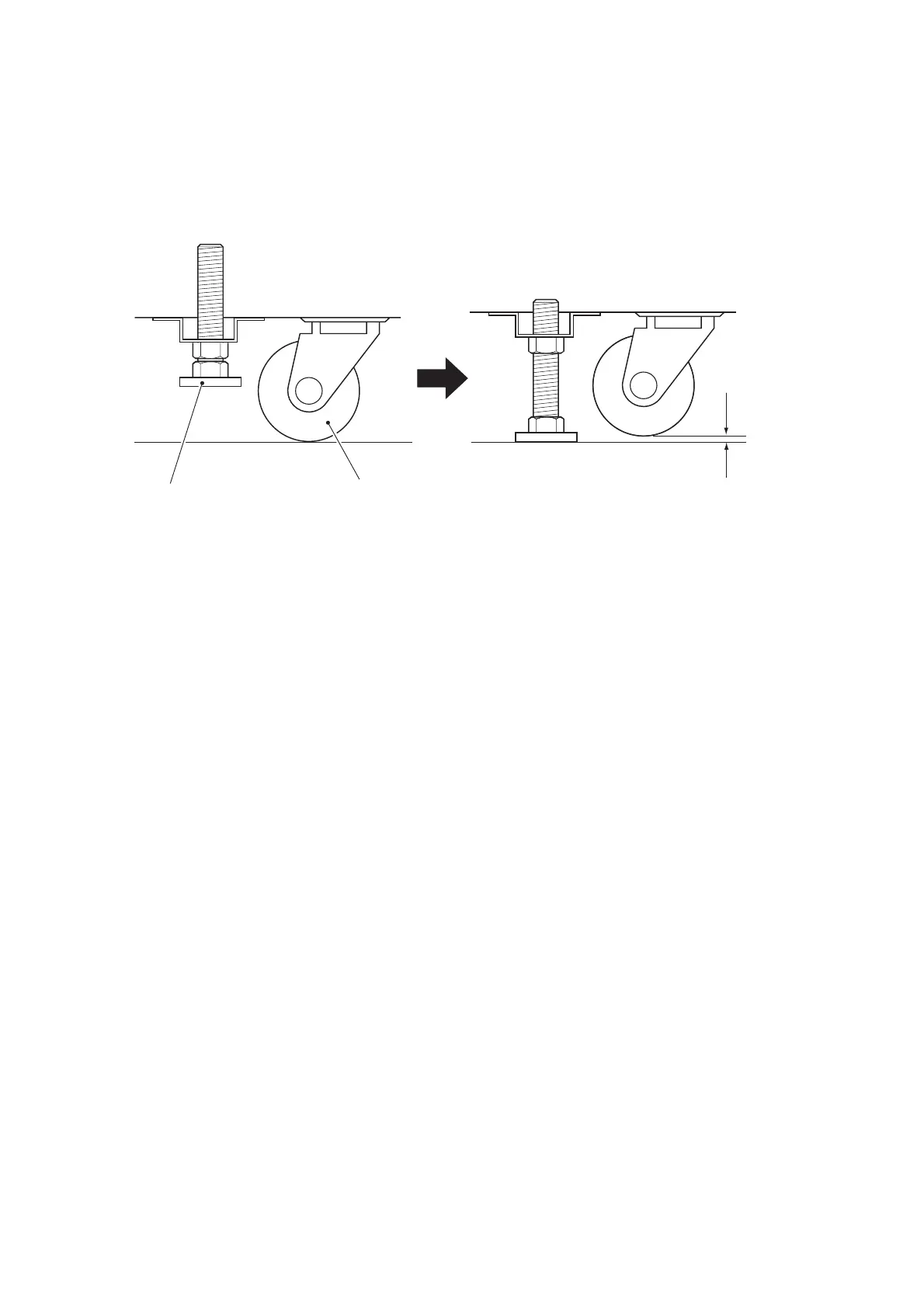

1. When the game is in its final position, lower the four (4) Level adjusters on the
Monitor Cabinet, with a spanner, so that all castors are raised from the floor by
approximately 5mm. Tighten the lock nuts with a spanner to ensure that the Level
Adjusters do not move.
Note: If the site of this game has a smooth or polished floor, it is recommended that
rubber pads are fitted under the Level Adjusters to prevent the game sliding on
the floor when in use.
Approx. 5mm
Castor
Level adjuster
