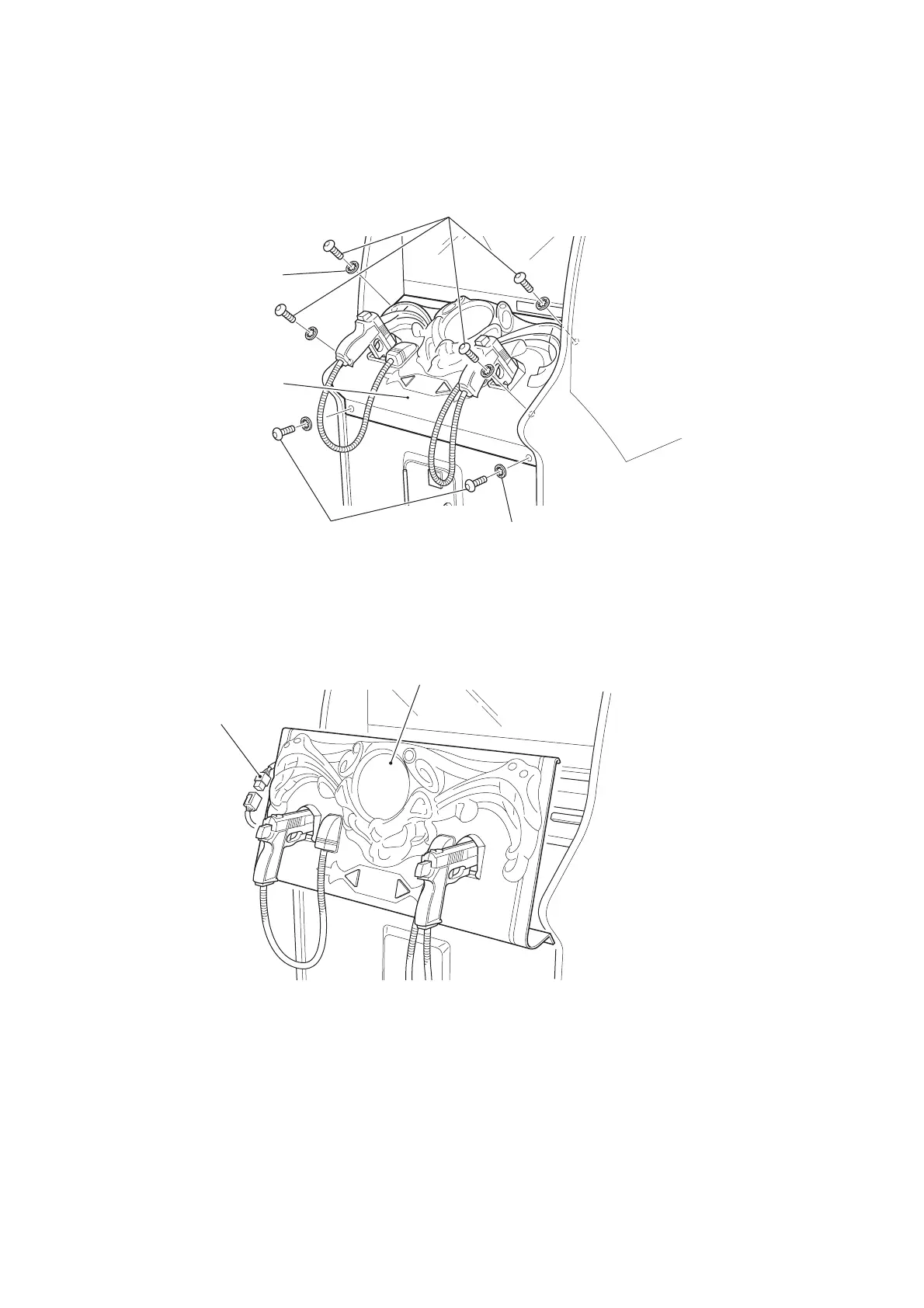

7-5 Removing the Play Panel Assy
1. Remove 6off security screw (M5x12), with flat washer, and lift the Play Panel
Assy.
2. Disconnect the connectors and remove the Play Panel Assy.
3. Reassemble in reverse order.
Play panel
Security screws (M5
×
20)
Flat washer
(M5)
Flat washer (M5)
Security screws (M5
×
20)
Connector
Play panel
