1. Angle fixing knob: For adjusting and fixing the vertical illumination direction of fixture.
2. L shaped bracket: For connecting the spot light on light stand and adjusting the illumination angle of fixture.
3. Bracket fixing knob: For connecting the spot light and camera equipment,
and adjusting the horizontal illumination direction of fixture.
4. Lock catch: For installing and disassembling reflector and other accessories.
5. LCD display: For displaying functions and operating datas.
6. Dimmer knob: For adjusting brightness, user could adjust brightness as their requirest for different shooting
environment.
7. Function knob: For providing the application of light mode / adress code / fan mode.
8. Power socket: For DC power input.
9. Power switch: For on / off the fixture.
10. LED indicator: For determining the status of power input. Being on, power supply is normal. Flashing or being off,
power supply is abnormal or no power input.
11. Reflector: For gathering light to improve central illumination.
Detailed description
Usage

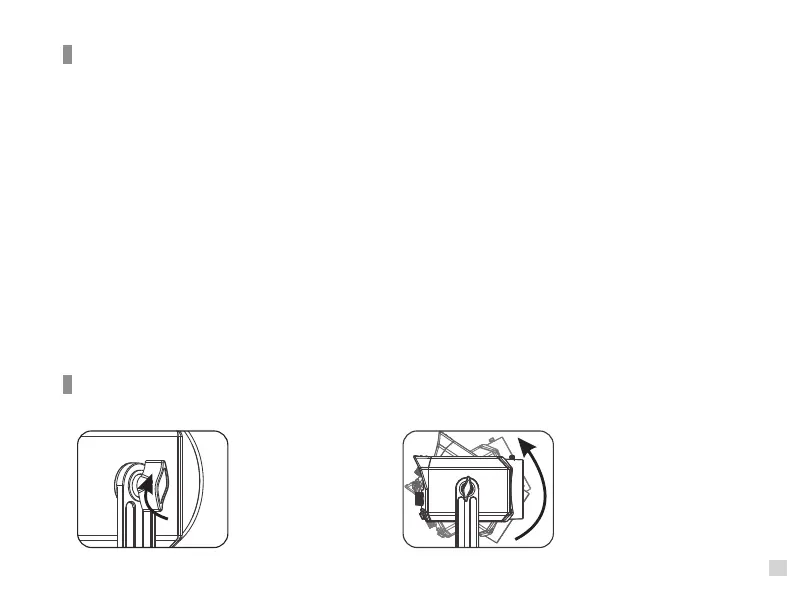

1. Installation of Bracket
Fixing the LED spot light
on light stand and rotating
the bracket fixing knob to
adjust the angle of this light for
different shooting needs.
Locking the angle fixing knob
clockwise and loosening
it anticlockwise.
