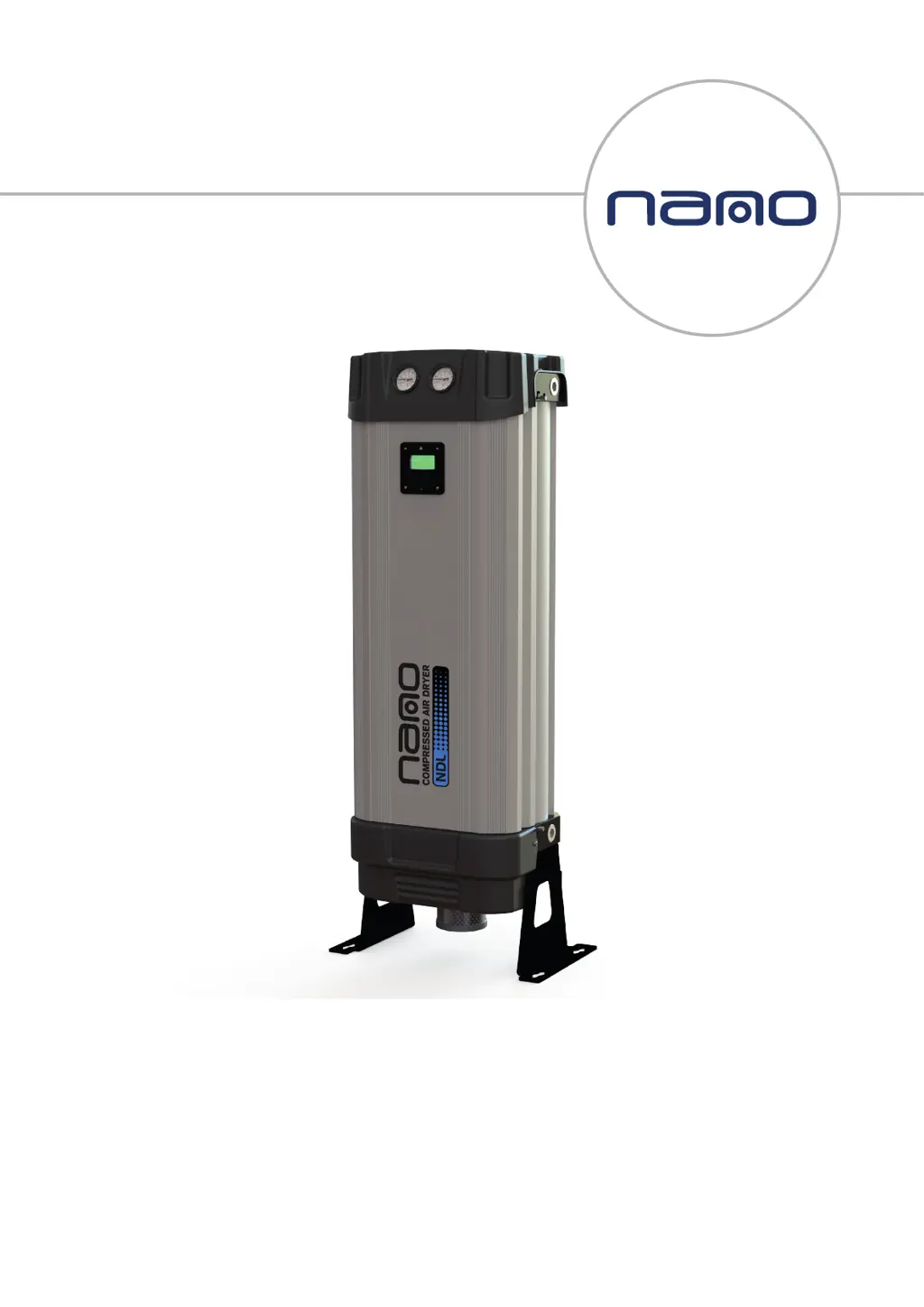

User guide
heatless desiccant air dryer
revision: 2022-116 document: 17-100-0120
© 2022 Air & Gas Solutions LLC.
www.n-psi.co.uk

Table of Contents

Other manuals for NANO NDL-070

Preview: Maintenance Service Manual
Maintenance Service Manual26 pages

Questions and Answers

  • J
    Jason ValenzuelaAug 9, 2025
    What to do if my NANO NDL-070 is not cycling?
    • O
      ocampbellAug 10, 2025
      If your NANO Dehumidifier isn't cycling, first ensure the controller is powered and check the on-screen column status to confirm it's powering the solenoid valves during normal operation. Also, check the power to the unit and the fuse (T2A 250V) located at Fig 8.A. Insufficient inlet pressure could also be the culprit; ensure it's at least 4 barg and adjust the inlet pressure settings if needed. A failure to de-pressurize during cycling could indicate a solenoid valve malfunction. If the coil has power, replace the valve. A working valve should produce an audible click when energized. Finally, check the inlet air supply if the outlet flow stops.
  • A
    Ashley GarciaAug 19, 2025
    Why does my NANO Dehumidifier have poor dew point performance?
    • J
      Jill ShepardAug 19, 2025
      If your NANO Dehumidifier shows poor dew point performance, start by checking the inlet pressure; it should be a minimum of 4 barg. Adjust the inlet pressure settings if necessary. Ensure the power is on, the dryer front panel is illuminated, and the dryer is cycling correctly. If the desiccant is moist or contaminated, identify and eliminate the source of contamination and replace the cartridges, avoiding reuse. Confirm that the dryer's performance matches the required system air consumption. Verify the inlet air temperature against the technical specifications. Insufficient purge air can also cause this issue; consult service personnel to adjust the settings, as they are factory pre-set. Lastly, a blocked exhaust silencer may be the cause, requiring assistance from service personnel.
  • A
    Aaron Robinson DDSAug 28, 2025
    What to do if my NANO NDL-070 Dehumidifier has constant depressurization?
    • R
      Rachel DavisAug 28, 2025
      If your NANO Dehumidifier is constantly depressurizing, try switching it off and restarting it. Make sure the dryer is pressurized before powering it on to allow it to initialize before starting operation. Erratic airflow from the exhaust may indicate a faulty or damaged valve, requiring service.

Summary

General Information

General Safety

Details safety precautions, modifications, and compliance with regulations.

Technical Specification

Typical System Layout

Illustrates a recommended system configuration with filtration and bypass options.

Operation

Details the steps and precautions for starting and operating the heatless desiccant air dryer.

Remote Start;Stop Control

Explains how to connect and use the remote start/stop functionality for the dryer.

Remote Stop Control

Shutdown Procedure

Monitoring Dryer Performance

Adjusting Dewpoint Settings

Guides users on how to adjust dewpoint set-points and alarm levels for optimal performance.

Maintenance

Maintenance Operations

Details safety procedures and general guidelines for performing maintenance.

Service Schedule and Breakdown

Troubleshooting

NANO NDL-070 Specifications
