Napoleon BGD34NT - VENTING; VENTING LENGTHS AND AIR TERMINAL LOCATIONS

5
W415-0341 / K / 10.05.07
33
1
/ 8 "
29
5
/ 8 "
6
3
/ 4 "
17"
34
1
/ 4 "
17
1
/ 8 "
13"
4" DIA.
7" DIA.
15"
11"
33
17"
13
1
/2"
34
1
/4"
8
1
/2"
4" DIA.
7" DIA.
11"
2
5
/8"
5
3
/4"
GAS
INLET
ELECTRICAL INLET
LEFT SIDE
13"
35"
29
5
/8"
20
1
/4"
6” STAND OFF
Use only Wolf Steel, Simpson Dura-Vent, Selkirk Direct
Temp or American Metal Amerivent venting components.
Minimum and maximum vent lengths, for both horizontal
and vertical installations, and air terminal locations for
either system are set out in this manual and must be
adhered to. For Simpson Dura-Vent, Selkirk Direct Temp
and American Metal Amerivent, follow the installation
procedure provided with the venting components.
All outer pipe joints of these venting systems must be
sealed using Red RTV High Temperature Sealant.
A starter adaptor must be used with the following vent
systems and may be purchased from the corresponding
supplier:
PART 4"/7" SUPPLIER
Duravent W175-0053 Wolf Steel
Amerivent 4DSC-N2 American Metal
Direct Temp 4DT-AAN Selkirk
For vent systems that provide seals on the inner exhaust
flue, only the outer air intake joints must be sealed using
a red high temperature silicone (RTV). This same
sealant may be used on both the inner exhaust and the
outer intake vent pipe joints of all other approved vent
systems except for the exhaust vent pipe connection to
the fireplace flue collar which must be sealed using the
black high temperature sealant Mill Pac.
VENTING LENGTHS AND AIR TERMINAL LOCATIONS
The maximum allowable vertical vent length is 40 feet.
For optimum flame appearance and fireplace performance,
keep the vent length and number of elbows to a minimum.
The air terminal must remain unobstructed at all times.
Examine the air terminal at least once a year to verify that it
is unobstructed and undamaged.
Horizontal runs may have a 0 inch rise per foot in all
cases using Wolf Steel, Simpson Dura-Vent, Selkirk
Direct Temp, or American Metal Amerivent rigid vent
components and Wolf Steel flexible vent components.
For optimum performance, it is recommended that
horizontal runs have a minimum 1/4 inch rise per foot
when using Simpson Dura-Vent, Selkirk Direct Temp,
American Metal Amerivent or Wolf Steel rigid vent
components and a minimum 1 inch rise per foot when
using Wolf Steel flexible vent comonents. For safe and
proper operation of the fireplace,
follow the venting instructions exactly.

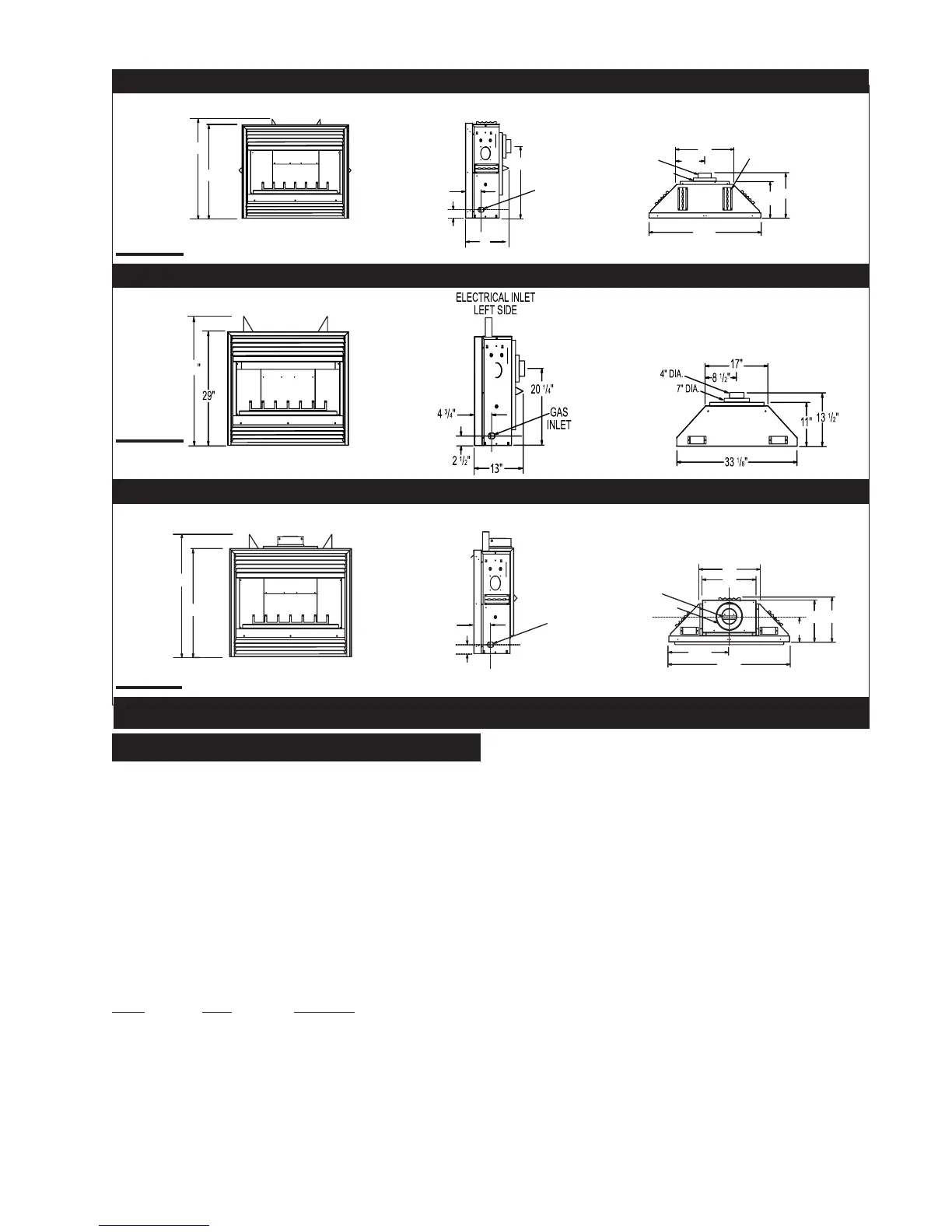

BGD33NR
B/GD34NT
FIGURE 1a
FIGURE 1b
FIGURE 1c
When using Wolf Steel venting components, use only
approved Wolf Steel rigid / flexible components with the
following termination kits:Wall Terminal Kit GD222, or 1/12
to 7/12 Pitch Roof Terminal Kit GD110, 8/12 to 12/12 Roof
Terminal Kit GD111, Flat Roof Terminal Kit GD112 or
Periscope Kit GD201 (for wall penetration below grade).
With flexible venting, in conjunction with the various
terminations, use either the 5 foot Vent Kit GD220 or the 10
foot Vent Kit GD330.
2
5
/ 8 "
5
3
/ 4 "
GAS
INLET
ELECTRICAL INLET
LEFT SIDE
VENTING
GD33NR
