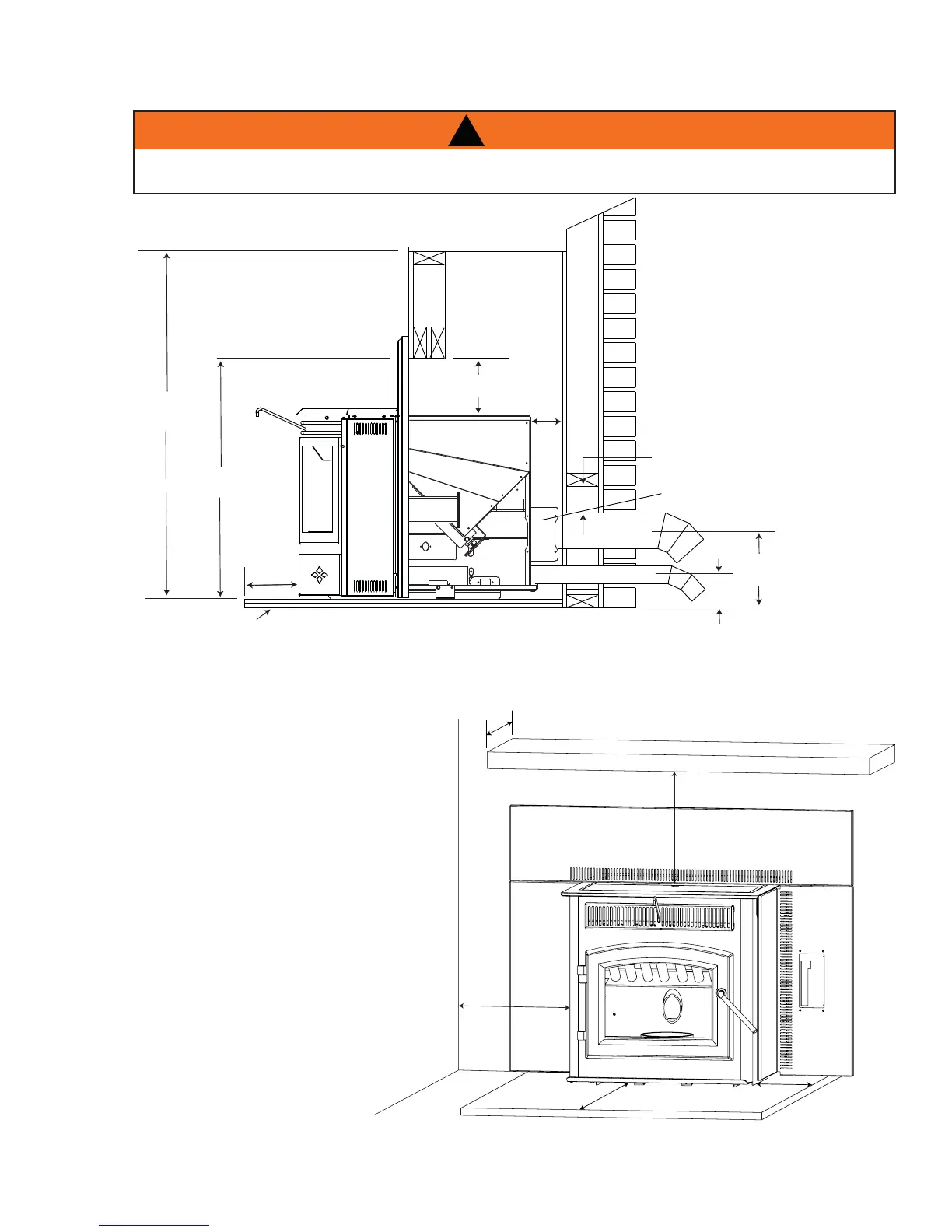

5.2 MINIMUM ENCLOSURE CLEARANCES
5.3 MINIMUM CLEARANCE TO COMBUSTIBLES
!
WARNING
The stand-offs located on the back of the insert must not be removed when installing the insert into a
built-in combustible enclosure.
6”
Non-combustible
floor protection
40”
2 3/4”
7 5/8”
27”
Stand-offs
3” all around (Refer to vent
manufacturer’s instructions)
2 1/4”
6 3/8” Minimum
Side wall to appliance 8"
Mantel to top of appliance 8"
Top facing to appliance 6 3/8"
Side facing to appliance 6"
Floor protection* 6"*
* Floor Protection: Minimum 6" in front of door
and to either side.
8”
MIN
Side Wall
8” MIN
10”
10” Mantel
6”
6”
