Napoleon PRO285 - Parts Diagram

18
EN
www.napoleon.com
N415-0309-AU JUL 18.19

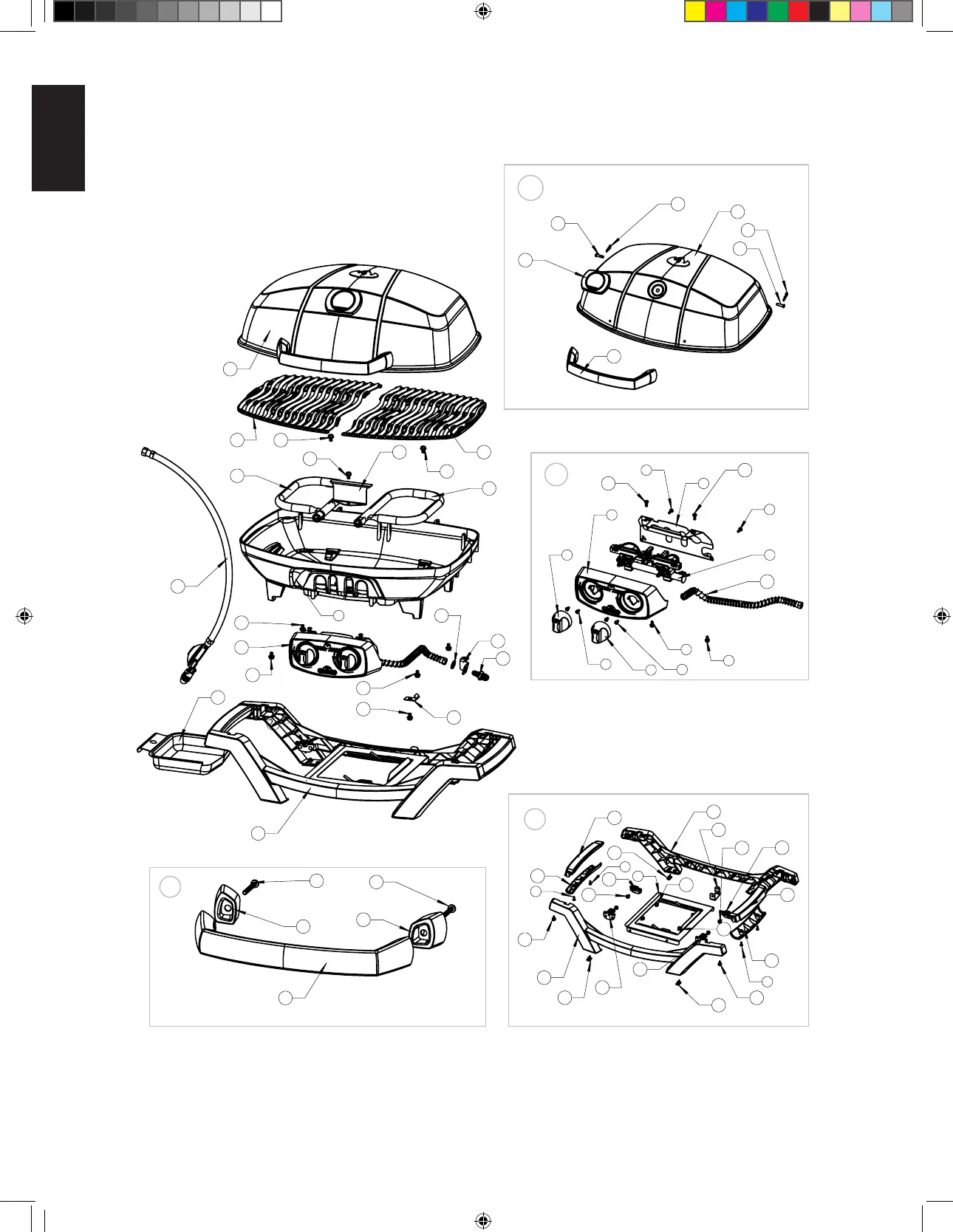

Parts Diagram
39
24
25
10
14
23
13
10
10
1
10
40
10
10
41
28
10
31
29
32
27
11
33
22
21
20
18
42
21
22
12
7
8
38
3
5
4
9
6
9
6
3
41
10
7
34
34
37
37
28
8
37
8
36
35
35
36
28
8
17
19
15
16
19
30
2
26
28
26
26
26
28
28
28
39
40
42
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 N135-0045 CASTING, BASE 1
2
N500-XX49 PLATE, DRIP 1
3
N570-0104
SCREW, #10-24x3/8"
HEX WSHR HEAD STN STL
4
4
N475-0319 PANEL, CONTROL 1
5
N432-0020 MANIFOLD TUBE 1
6
N570-0078 SCREW, M4 X 8MM PAN HD PHIL ZINC 4
7
N585-0089 SHIELD HEAT CONTROL PANEL 1
8
N570-0076 SCREW, #8x1/2 HI/LO TAPPING PHIL FLAT HD 8
9
N380-0019A KNOB, CONTROL 2
10
N570-0073 SCREW, 1/4-20 X 3/8 S/S HEX WASHER HD 8
11
N710-0079 PAN, DRIP 1
12
Z570-0033 SCREW,10-24 X 1/2" STN STEEL 4
13
N100-0047 1
14
N100-0046 BURNER TUBE 1
15
N325-XX83 HANDLE, LID 1
16
N655-0179 SUPPORT, LID HANDLE LEFT 1
17
N655-0180 1
18
TEMP-F002 1
19
Z570-0029 SCREW, 10-24 35 MM STN STL PAN HEAD 2
20
N135-XX46-F001 CASTING, PRO285 LID 1
21
N485-XX23 PIN, CLEVIS 6x20MM 2
22
N485-0021 PIN, HAIRPIN COTTER 4
23
N080-0302 CROSS LIGHTING TUBE 1
24
N305-0087 IGS 1
25
N305-0088 IGS 1
26
N080-0303 BRACKET, FOLDING LEG 4
27
N160-0025 CLIP, FLEX LINE 1
28
N570-0068 SCREW, 14 X 1/2 STN STL HEX HD AB 13
29
N080-PROTO2 BRACKET, FLEX LINE TO REG HOSE 1
30
N080-REGHOSE BRACKET, FLEX LINE TO REG HOSE 1
31
N255-0057 FITTING, UNION 3/8" MF TO 1/4"MF 1
32
W450-0027 NUT, 1/2-20 BRASS 1
33
REGULATOR HOSE FOR MANUAL 1
34
N075-0091 2
35
N325-0088 2
36
N325-0089 2
37
N510-0013-MC BUMPER, RECTANGULAR BLK SILICONE 4
38
FLEX LINE-PRO285-BETTER 1
54
N485-0023 PIN, CLEVIS 6x20MM 2
55
EURO REGULATOR 701-790-1042 1
56
HOSE CLAMP FOR N530-0035 2
57
N530-0035 REGULATOR NUT 1
