EN
W415-2837 / 08.11.20
9
installation planning
2.0 installation planning
2.1 appliance placement

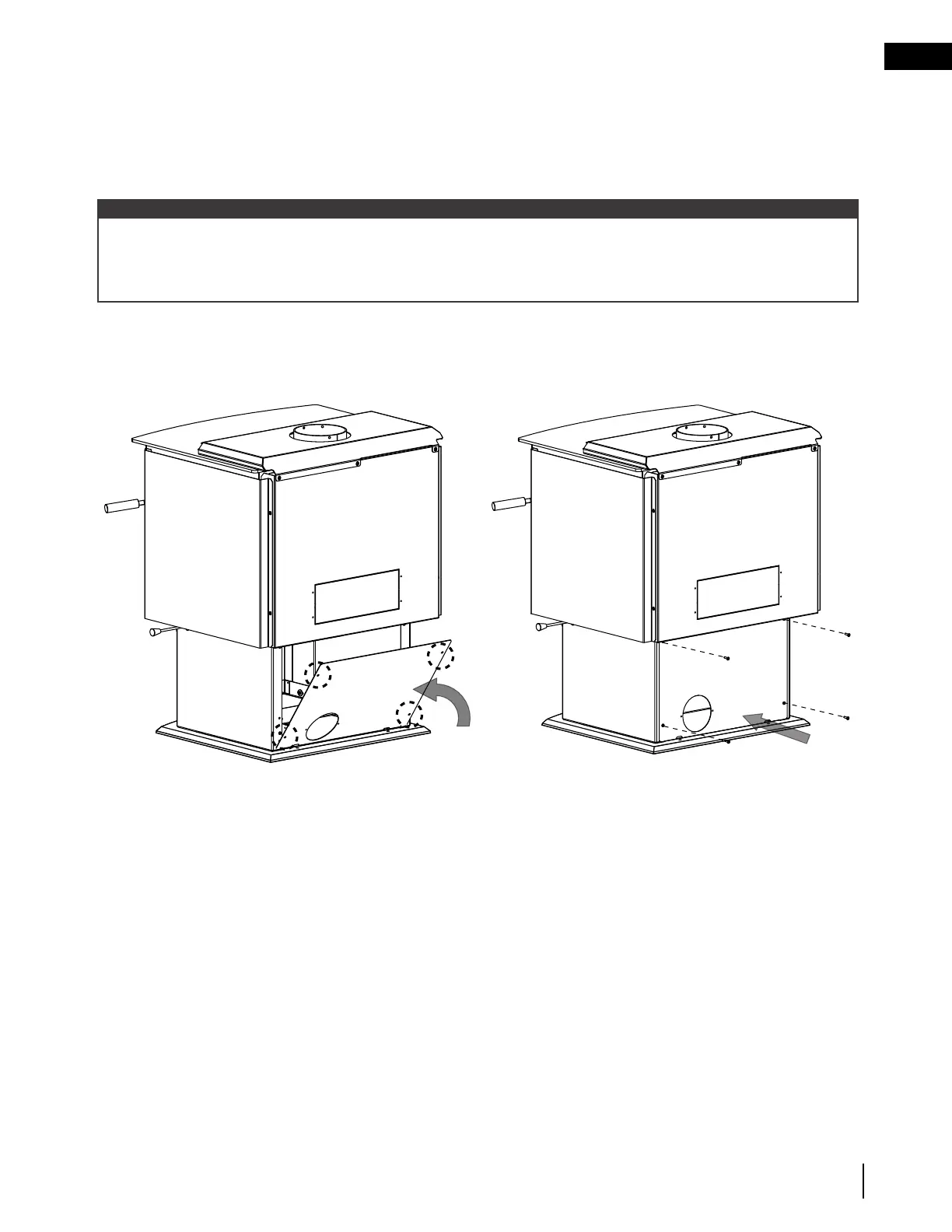

2.2 pedestal back plate installation
1. Place the back plate in position, ensuring the holes in the back plate align with the holes in the appliance
(Fig. 2-1).
2. Install four screws (supplied) to secure the back plate in position (Fig. 2-2).
We recommend having your Napoleon wood burning appliance installed by a qualified technician. However,
should you choose to install the appliance yourself, it is extremely important that you follow all installation
instructions for the appliance, the chimney and connector if applicable, as well as local building codes. At the very
least, draw a detailed plan of your installation, including clearance dimensions to combustibles, and have your
authorized dealer review them to confirm that they conform to the relative installation parameters.
When positioning the appliance, it may be necessary to adjust its position to prevent the chimney/vent system
from intersecting with a framing member and to meet the minimum combustible clearance requirements. Its
location should also avoid the potential for drapes or doors to swing within 48” (122cm) in front of the appliance
to prevent a fire hazard.
note:
Fig. 2-2
Fig. 2-1
