Configuring the BNC-2110
This section describes how to configure your BNC-2110 accessory.

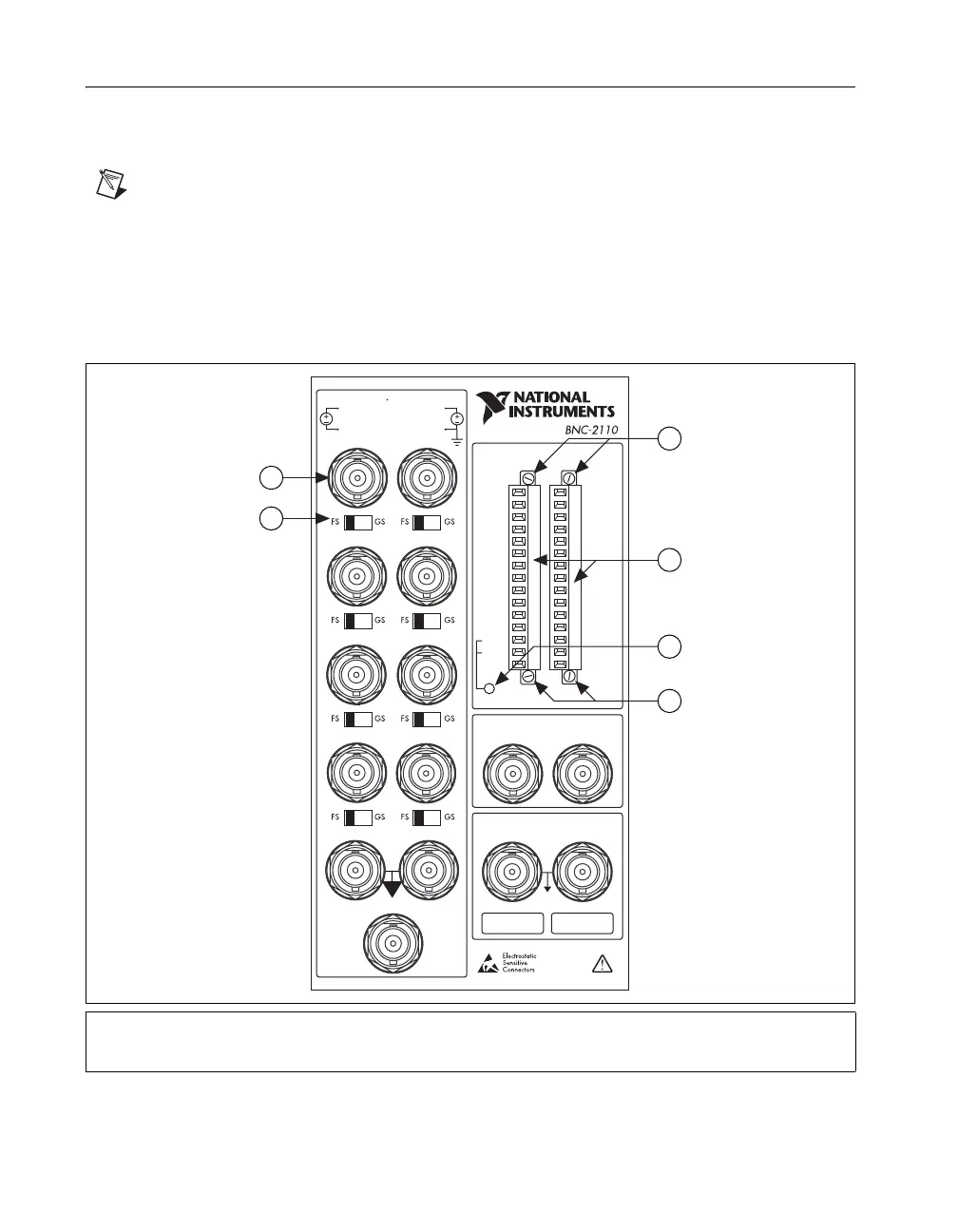

Figure 2 shows the front panel of the BNC-2110.
Note With NI-DAQmx, National Instruments has revised its terminal names so they are
easier to understand and more consistent among NI hardware and software products.
The revised terminal names used in this document are usually similar to the names they
replace. For a complete list of traditional NI-DAQ terminal names and their NI-DAQmx
equivalents, refer to the Terminal Name Equivalences table in the ESeries Help at
ni.com/manuals.
Figure 2. BNC-2110 Front Panel
1 Floating Source (FS)/Ground-Referenced
Source (GS) Switch
2 BNC Connectors
3 Terminal Block Retaining Screws
4 Terminal Blocks for Digital and Timing I/O
5 Power Indicator Light
2
1
AI 0
AI 2
.
AO 7 AI 3
.
AO 6
AI 4
.
AO 5 AI 5
.
AO 4
AI 6
.
AO 3 AI 7
.
AO 2 PFI 0 / AI START CTR 0 OUT
AO 1 AO 0 USER 1 USER 2
NAME NAME
AI 1
3
3
5
4
AO EXT REF
PFI 9
PFI 8
PFI 7
PFI 6
PFI 5
PFI 4
PFI 3
PFI 2
PFI 1
D GND
DGND
USER 2
F OUT
+ 5V
+ 5V
P0.7
P0.6
P0.5
P0.4
P0.3
P0.2
P0.1
P0.0
CTR1OUT
D GND
AI GND
USER 1
AI HOLD
EXTSTRB*
AI SENSE
D GND
ANALOG IN ANALOG OUT
**
**
**
*Set to FS
with Analog
Output Boards
DIGITAL AND TIMING I/O
TRIGGER/COUNTER
USER–DEFINED SIGNALS
Floating
Source (FS)
Ground Ref.
Source (GS)
AO
