You can also mount the NI 9147 in other orientations, on a nonmetallic surface, on a 35-mm
DIN rail, on a desktop, or in a rack. Mounting the NI 9147 in these or other configurations can
reduce the maximum allowable ambient temperature and can affect the typical accuracy of
modules in the NI 9147. For more information about typical accuracy specifications for
C Series modules and temperature deratings caused by different mounting configurations, visit
ni.com/info and enter the Info Code criotypical.
Caution Make sure that no C Series modules are in the NI 9147 before mounting
it.
Tip Before using any of these mounting methods, record the serial number from
the back of the NI 9147 so that you can identify the NI 9147 in MAX. You will be
unable to read the serial number after you mount the NI 9147.
Dimensions

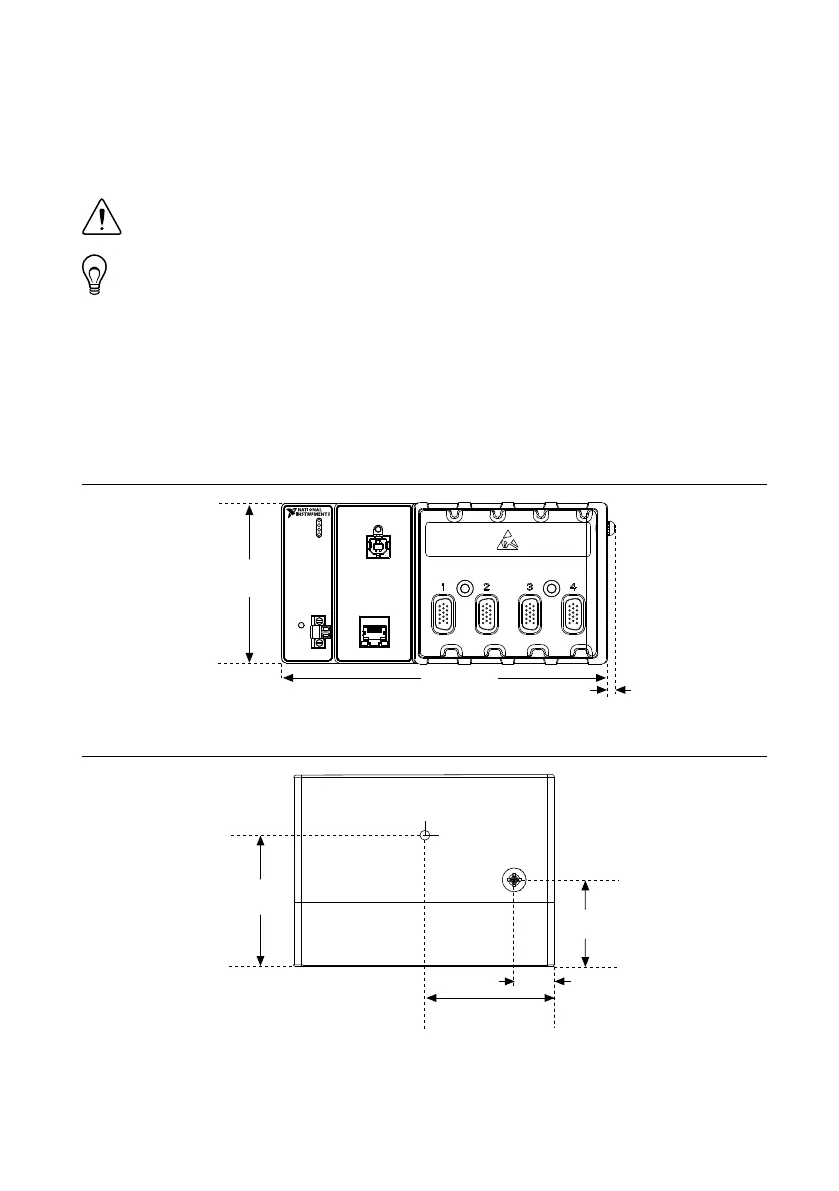

The following figures show the front and side dimensions of the NI 9147. For detailed
dimensional drawings and 3D models, visit ni.com/dimensions and search for the module
number.
Figure 7. NI 9147 Front Dimensions
87.3 mm
(3.44 in.)
178.1 mm
(7.01 in.)
4.1 mm
(0.16 in.)
Figure 8. NI 9147 Side Dimensions
44.1 mm
(1.74 in.)
29.1 mm
(1.15 in.)
44.1 mm
(1.73 in.)
14.1 mm
(0.55 in.)
12 | ni.com | NI 9147 User Manual
