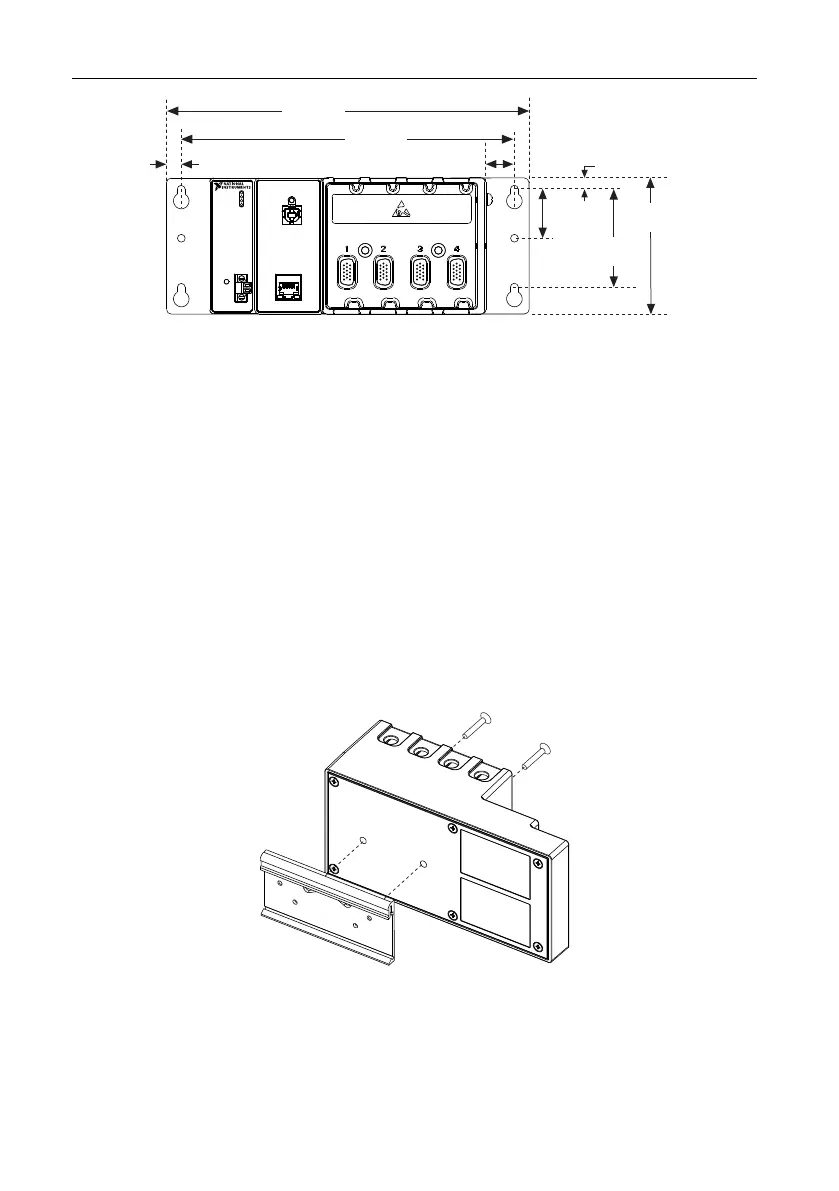

Figure 13. NI 9147 Panel Mounting Dimensions
235.0 mm
(9.25 in.)
215.9 mm
(8.50 in.)
9.5 mm
(0.38 in.)
27.3 mm
(1.08 in.)
88.1 mm
(3.47 in.)
31.7 mm
(1.25 in.)
63.5 mm
(2.50 in.)
7.2 mm
(0.29 in.)
Mounting the Device on a DIN Rail
You can use the NI DIN rail mounting kit to mount the NI 9147 on a standard 35-mm DIN
rail.
What to Use
• NI 9147
• Screwdriver, Phillips #2
• NI DIN rail mounting kit, 779019-01
– DIN rail clip
– M4 × 25 flathead screw (x2)
What to Do
Complete the following steps to mount the NI 9147 on a DIN rail.
1. Align the NI 9147 and the DIN rail clip.
NI 9147 User Manual | © National Instruments | 17
