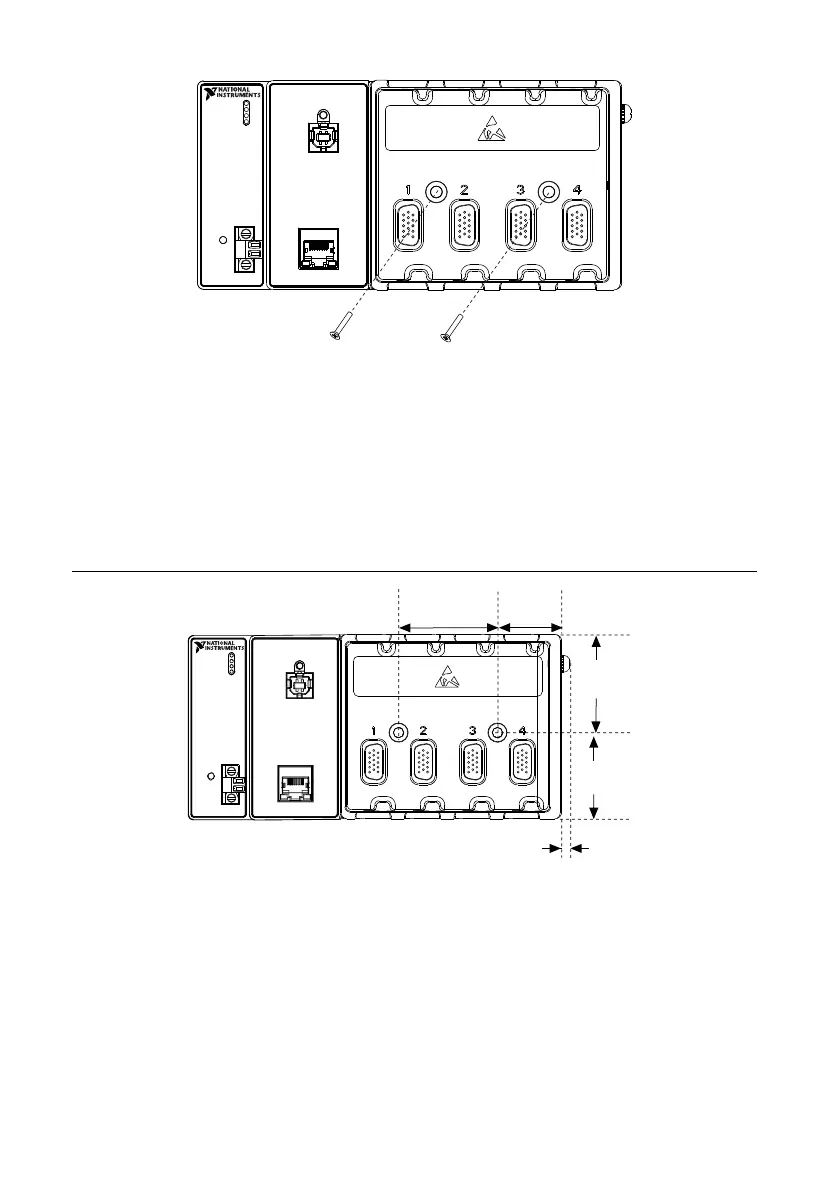

1. Prepare the surface for mounting the NI 9147 using the Surface Mounting Dimensions.
2. Align the NI 9147 on the surface.
3. Fasten the NI 9147 to the surface using the M4 or number 8 screws appropriate for the
surface. Tighten the screws to a maximum torque of 1.3 N · m (11.5 lb · in.).
Surface Mounting Dimensions
The following figure shows the surface mounting dimensions for the NI 9147.
Figure 12. NI 9147 Surface Mounting Dimensions
4.1 mm
(0.16 in.)
47.0 mm
(1.85 in.)
47.2 mm
(1.86 in.)
30.6 mm
(1.20 in.)
41.1 mm
(1.62 in.)
Mounting the Device on a Panel
You can use the NI panel mounting kit to mount the NI 9147 on a panel.
NI 9147 User Manual | © National Instruments | 15
