National Instruments NI 9751 User Manual

20 | ni.com | NI 9751 User Manual
Figures 18 through 31, show oscilloscope images that demonstrate current and voltage
waveforms for seven different IPhaseArray configurations for piezo injectors.

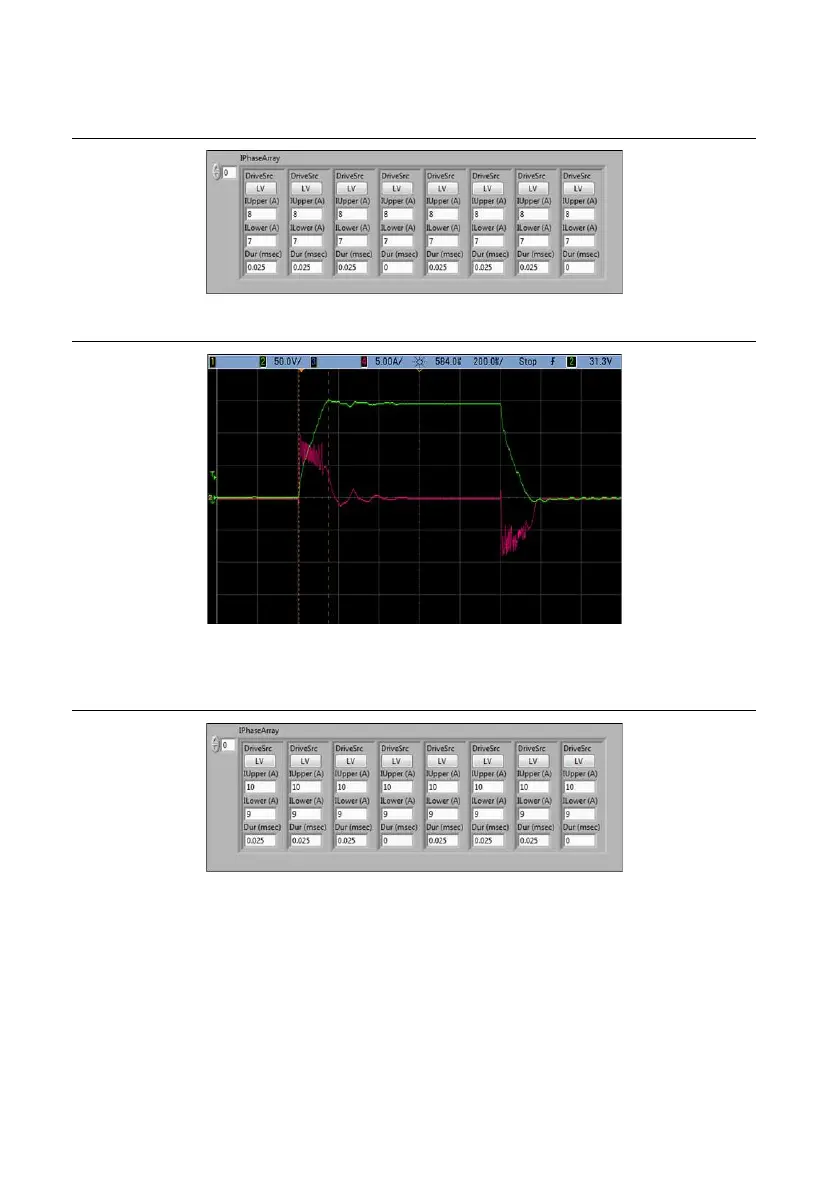

Figure 18. Piezo IPhaseArray Configuration Example 1
Figure 19. Current and Voltage Traces From Piezo IPhaseArray Configuration Example 1
HVTarget = 150 V. Charge time = 148 μs.
Figure 20. Piezo IPhaseArray Configuration Example 2
