Chapter 1 Getting Started with the cDAQ Chassis

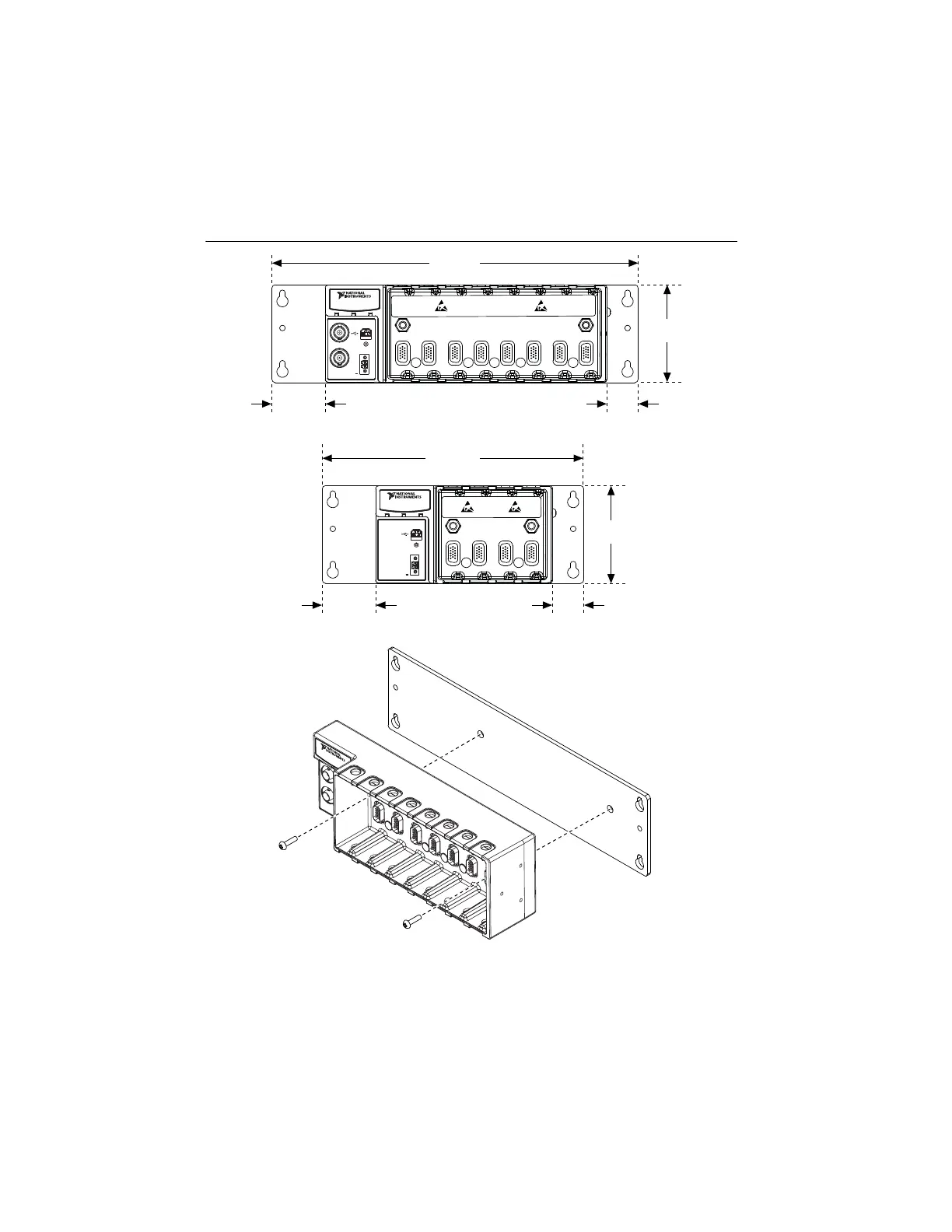

Figure 1-6. cDAQ-9174/9178 Panel Mount Dimensions and Installation
87654321
28.1 mm
(1.11 in.)
48.1 mm
(1.90 in.)
27.0 mm
(1.06 in.)
48.4 mm
(1.91 in.)
INPUT
9-30 V
15 W MAX
POWER READY ACTIVE
PFI 0
PFI 1
V
C
4321
INPUT
9-30 V
15 W MAX
POWER READY ACTIVE
V
C
NI cDAQ-9178
NI CompactDAQ
88.1 mm
(3.47 in.)
NI cDAQ-9174
NI CompactDAQ
88.1 mm
(3.47 in.)
234.95 mm
(9.250 in.)
NI cD
AQ-9178
NI C
ompactDA
Q
330.2 mm
(13.00 in.)
