National Instruments NI PXIe-4112 Getting Started Guide

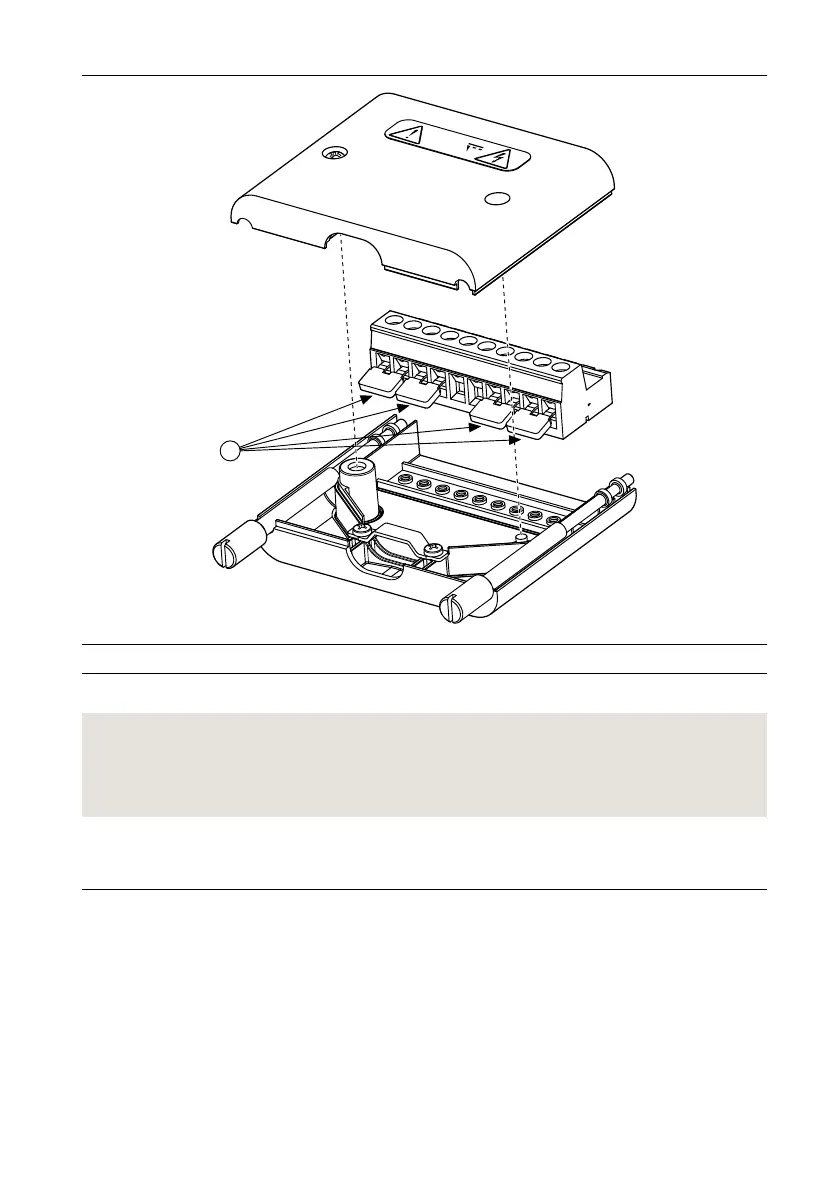

Figure 5. Sense Jumpers
150V
CATI
1
1. Sense Jumpers Installed on the Output Connector Plug
14. Power on the chassis.
Related Information
For information about local and remote sense configuration for specific devices, refer to the
NI DC Power Supplies and SMUs Help.
For information about wire gauge, refer to the NI DC Power Supplies and SMUs Help.
Configuring the NI 4112/4113 in MAX
Use Measurement & Automation Explorer (MAX) to configure your National Instruments
hardware. MAX informs other programs about which devices reside in the system and how
they are configured. MAX is automatically installed with NI-DCPower.
1. Launch MAX by navigating to Start»All Programs»National Instruments»NI MAX or
by clicking the NI MAX desktop icon.
2. In the Configuration pane, double-click Devices and Interfaces to see the list of installed
devices. Installed devices appear under the name of their associated chassis.
