NI 5114 Calibration Procedure | © National Instruments | 11

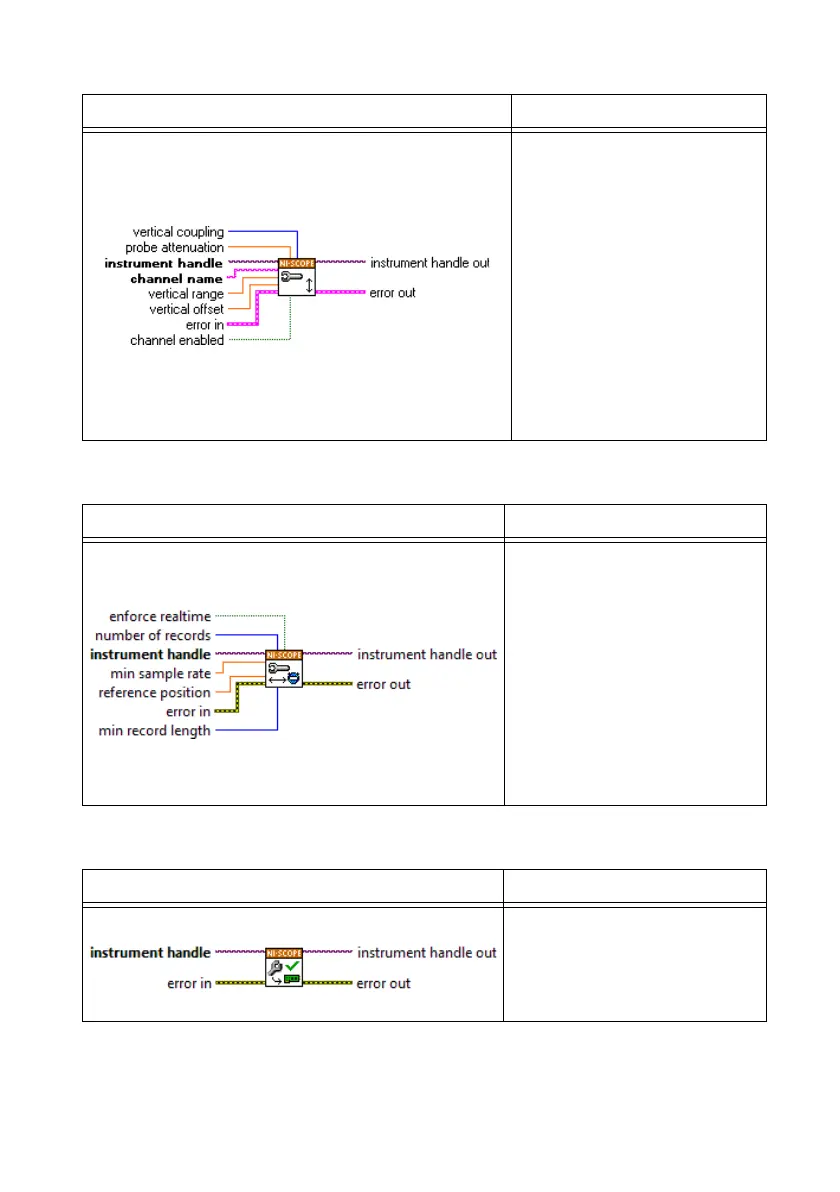

3. Configure the common vertical properties using the niScope Configure Vertical VI.
4. Configure the horizontal properties using the niScope Configure Horizontal Timing VI.
5. Commit all the parameter settings to hardware using the niScope Commit VI.
6. Short-circuit the channel 0 input of the device by connecting the calibrator test head directly
to the device and grounding the output of the calibrator.
LabVIEW VI C/C++ Function Call
Call niScope_Configure
Vertical
with the following
parameters:
coupling: NISCOPE_VAL_DC
probeAttenuation: 1.0
vi: The instrument handle from
niScope_init
channelList: "0"
range: The Range value in
Table 4 for the current iteration
offset:
0.0
enabled:
NISCOPE_VAL_TRUE
LabVIEW VI C/C++ Function Call
Call niScope_Configure
HorizontalTiming
with the
following parameters:
enforceRealtime:
NISCOPE_VAL_TRUE
numRecords: 1
vi: The instrument handle from
niScope_init
minSampleRate: 10,000,000
refPosition: 50.0
minNumPts: 100,000
LabVIEW VI C/C++ Function Call
Call niScope_Commit with the
following parameter:
vi: The instrument handle from
niScope_init

National Instruments PXI Specifications

General

Number of Slots	Varies by chassis (4, 8, 18)
Power Supply	Varies by chassis (typically AC or DC input)
Operating System Support	Windows, Linux
Typical Applications	Automated test, data acquisition
Compatibility	PXI
Cooling	Forced air
Operating Temperature	0 °C to 55 °C (Varies by module and chassis)
Relative Humidity	10% to 90% noncondensing (Varies by module and chassis)
