NI 5114 Calibration Procedure | © National Instruments | 7
4. Launch the Calibration dialog box by selecting Utility»Self Calibration.
5. Click OK to begin self-calibration.
NI-SCOPE
To self-calibrate the NI 5114 programmatically using NI-SCOPE, complete the following steps:
1. Disconnect or disable any AC inputs to the device.
2. Open a session and obtain a session handle using the niScope Initialize VI.
Note Throughout the procedure, refer to the C/C++ function call parameters for the
LabVIEW input values.
3. Self-calibrate the device using niScope Cal Self Calibrate VI.
.
Note Because the session is a standard session rather than an external calibration
session, the new calibration constants are immediately stored in the EEPROM.
Therefore, you can include this procedure in any application that uses the device.

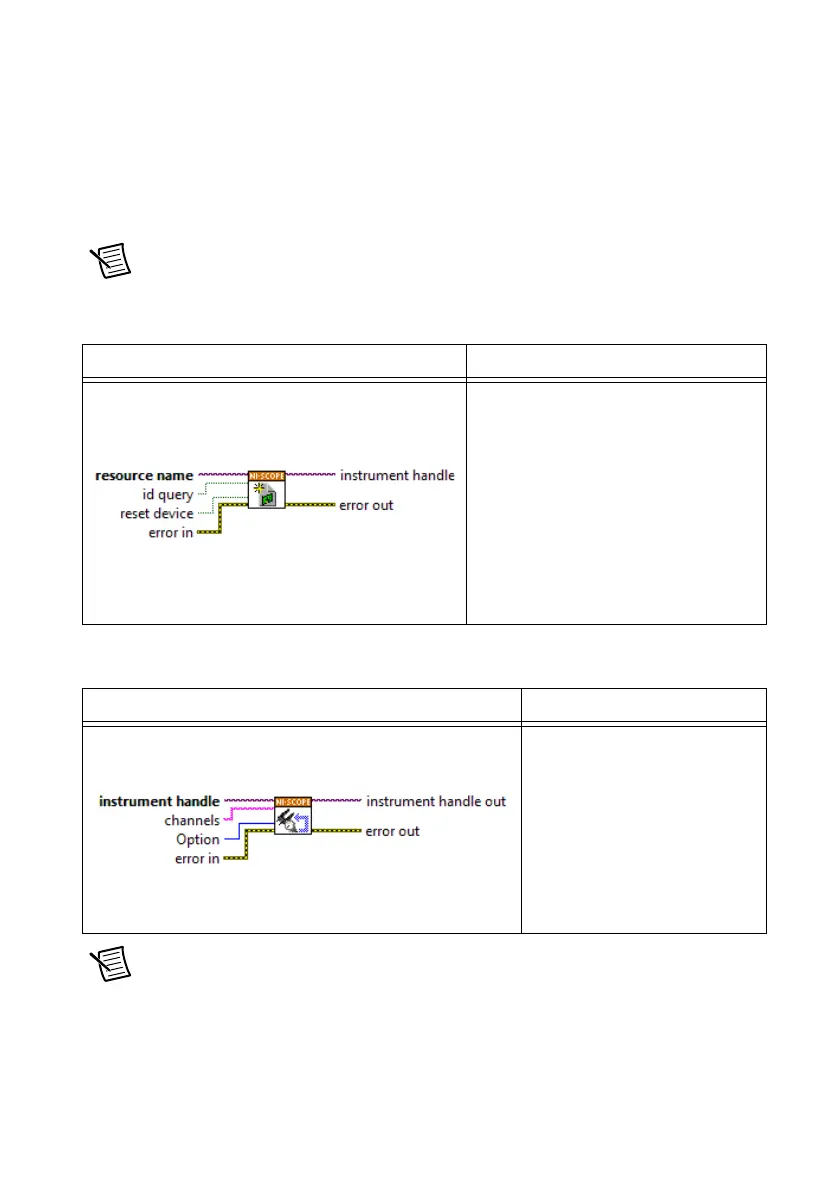

LabVIEW VI C/C++ Function Call
Call niScope_init with the
following parameters:
vi: The returned session handle that
you use to identify the instrument in all
subsequent NI-SCOPE driver function
calls
resourceName: The device name
assigned by MAX
idQuery:
VI_FALSE
resetDevice: VI_TRUE
LabVIEW VI C/C++ Function Call
Call niScope_CalSelf
Calibrate
with the
following parameters:
sessionHandle: The
instrument handle from
niScope_init
channelList: VI_NULL
option: VI_NULL

National Instruments PXI Specifications

General

Number of Slots	Varies by chassis (4, 8, 18)
Power Supply	Varies by chassis (typically AC or DC input)
Operating System Support	Windows, Linux
Typical Applications	Automated test, data acquisition
Compatibility	PXI
Cooling	Forced air
Operating Temperature	0 °C to 55 °C (Varies by module and chassis)
Relative Humidity	10% to 90% noncondensing (Varies by module and chassis)
