18 | ni.com | NI 5114 Calibration Procedure
Programmable Vertical Offset Accuracy
Complete the following steps to verify the programmable vertical offset accuracy for each
device channel.

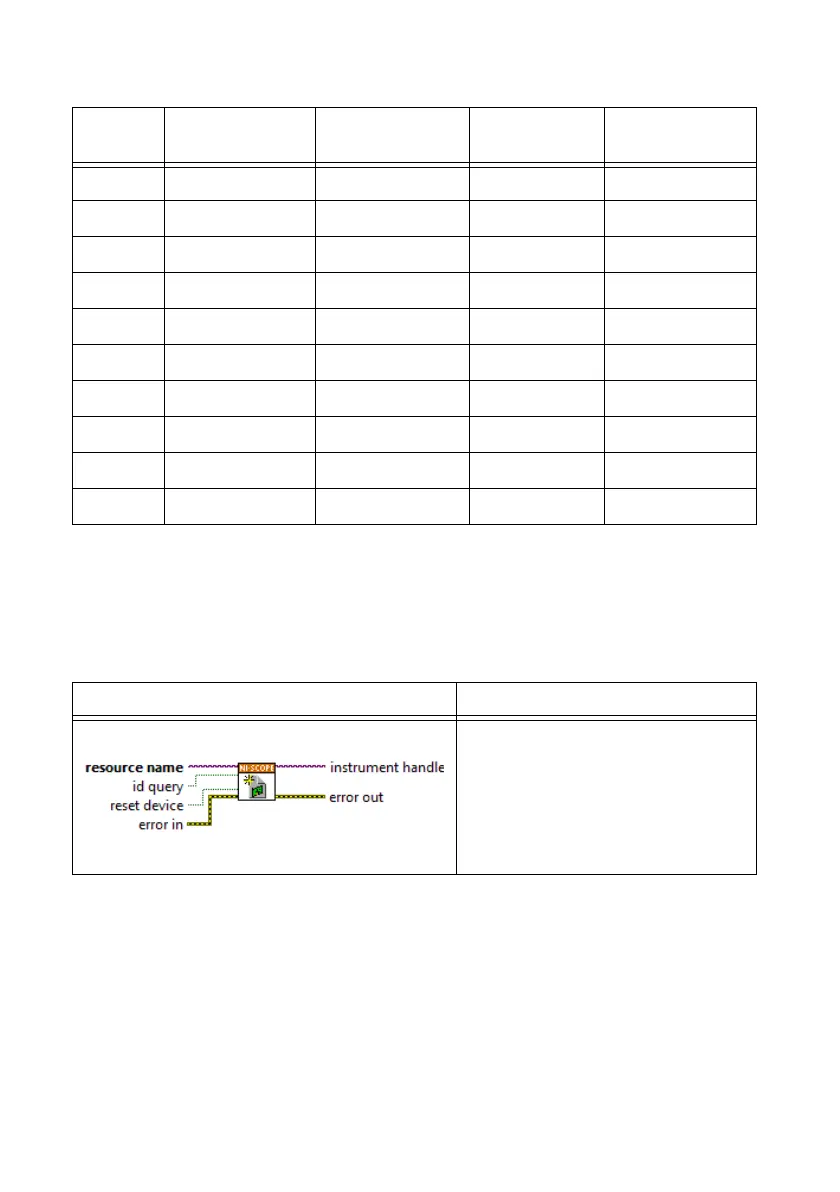

1. Open a session and obtain a session handle using the niScope Initialize VI.
Table 6. NI 5114 Vertical Gain Stimuli, Calibration Test Limits,
and Published Specifications
Range
(V)
Positive Input
(V)
Negative Input
(V)
Calibration
Test Limits
Published
Specifications
0.04 0.018 -0.018 ±1.3975% ±1.5%
0.1 0.045 -0.045 ±1.3975% ±1.5%
0.2 0.09 -0.09 ±1.3975% ±1.5%
0.4 0.18 -0.18 ±1.3975% ±1.5%
1 0.45 -0.45 ±1.3975% ±1.5%
2 0.9 -0.9 ±1.3975% ±1.5%
4 1.8 -1.8 ±1.3975% ±1.5%
10 4.5 -4.5 ±1.3975% ±1.5%
20 9 -9 ±1.3975% ±1.5%
40 18 -18 ±1.3975% ±1.5%
LabVIEW VI C/C++ Function Call
Call niScope_init with the
following parameters:
resourceName: The device name
assigned by MAX
idQuery:
VI_FALSE
resetDevice: VI_TRUE
