NI 5114 Calibration Procedure | © National Instruments | 19

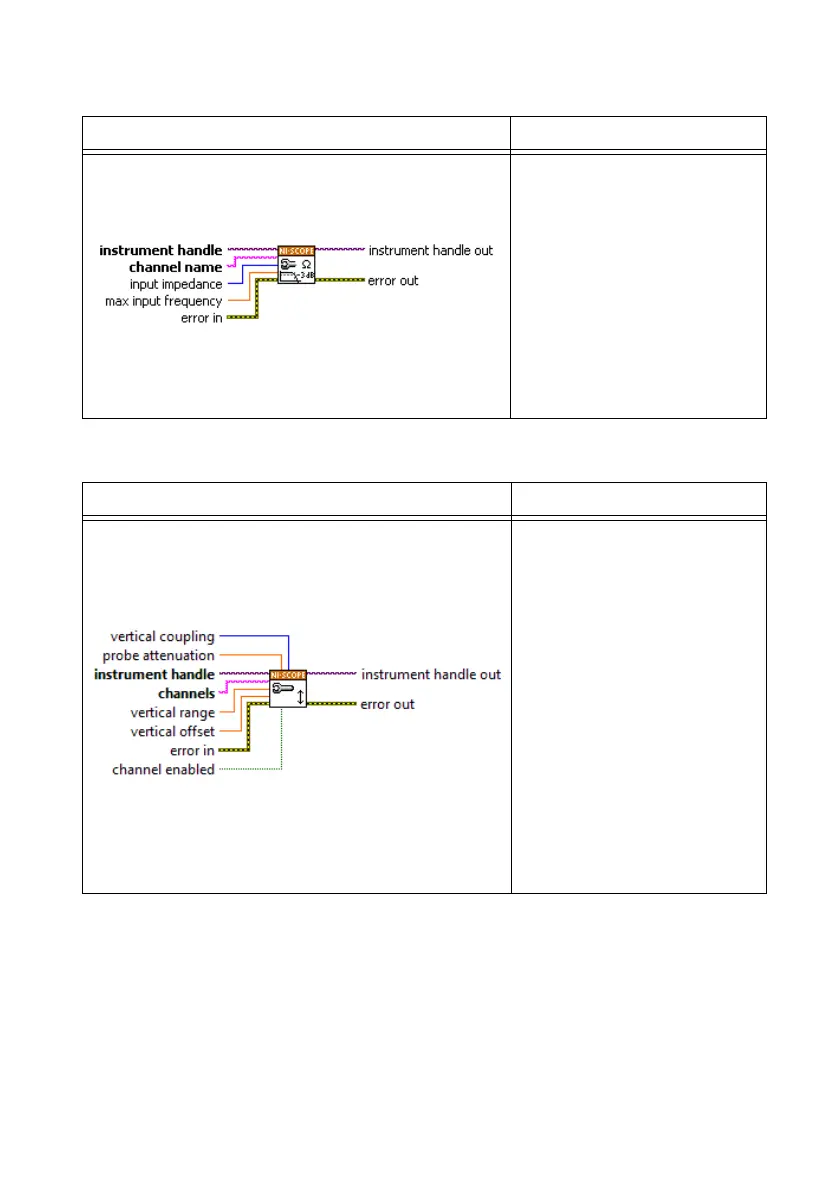

2. Configure the input impedance and the maximum input frequency using the
niScope Configure Chan Characteristics VI.
3. Configure the common vertical properties using the niScope Configure Vertical VI.
LabVIEW VI C/C++ Function Call
Call
niScope_ConfigureChan
Characteristics
with the
following parameters:
vi: The instrument handle from
niScope_init
channelList: "0"
inputImpedance:
NISCOPE_VAL_1_MEG_OHM
maxInputFrequency:
20,000,000
LabVIEW VI C/C++ Function Call
Call
niScope_ConfigureVerti
cal
with the following
parameters:
coupling: NISCOPE_VAL_DC
probeAttenuation: 1.0
vi: The instrument handle from
niScope_init
channelList: "0"
range: The Range value in
Table 7 for the current iteration
offset: The Positive Offset
setting value in Table 7 for the
current iteration
enabled:
NISCOPE_VAL_TRUE
