NI 5114 Calibration Procedure | © National Instruments | 23
Compare the resulting percent to the Published Specifications column listed in Table 7. If
the result is within the selected test limit, the device has passed this portion of the
verification.
18. Repeat steps 2 through 17 for each iteration in Table 7.
19. Move the calibrator test head to the device input channel 1 and repeat steps 2 through 18,
changing the value of the channelList parameter from "0" to "1".

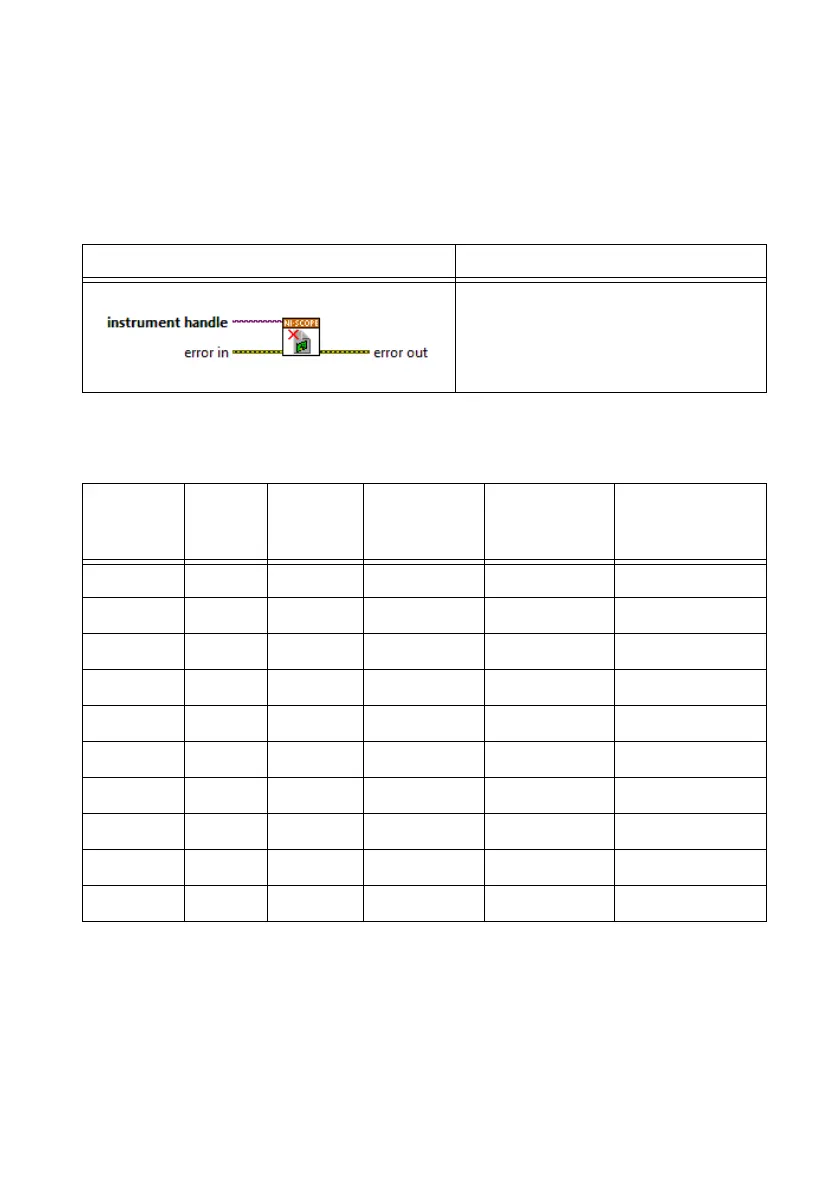

20. End the session using the niScope Close VI.
LabVIEW VI C/C++ Function Call
Call niScope_close with the
following parameter:
vi: The instrument handle from
niScope_init
Table 7.
NI 5114 Programmable Vertical Offset Accuracy Stimuli, Calibration Test Limits,
and Published Specifications
Iteration
Range
(V)
Positive
Offset
(V)
Negative
Offset
(V)
Calibration
Test Limits
Published
Specifications
1 0.04 0.8 -0.8 ±1.95% ±2%
2 0.1 0.8 -0.8 ±1.95% ±2%
3 0.2 0.8 -0.8 ±1.95% ±2%
4 0.4 0.8 -0.8 ±1.95% ±2%
5 1 8 -8 ±1.95% ±2%
6 2 8 -8 ±1.95% ±2%
7 4 8 -8 ±1.95% ±2%
8 10 30 -30 ±1.95% ±2%
9 20 25 -25 ±1.95% ±2%
10 40 15 -15 ±1.95% ±2%
