NI 5114 Calibration Procedure | © National Instruments | 27
12. End the session using the niScope Close VI.
Bandwidth and Flatness
Complete the following steps to verify the bandwidth and flatness of the NI 5114. You must
verify both channels with each iteration listed in Table 9.
Note Verification of bandwidth is optional.

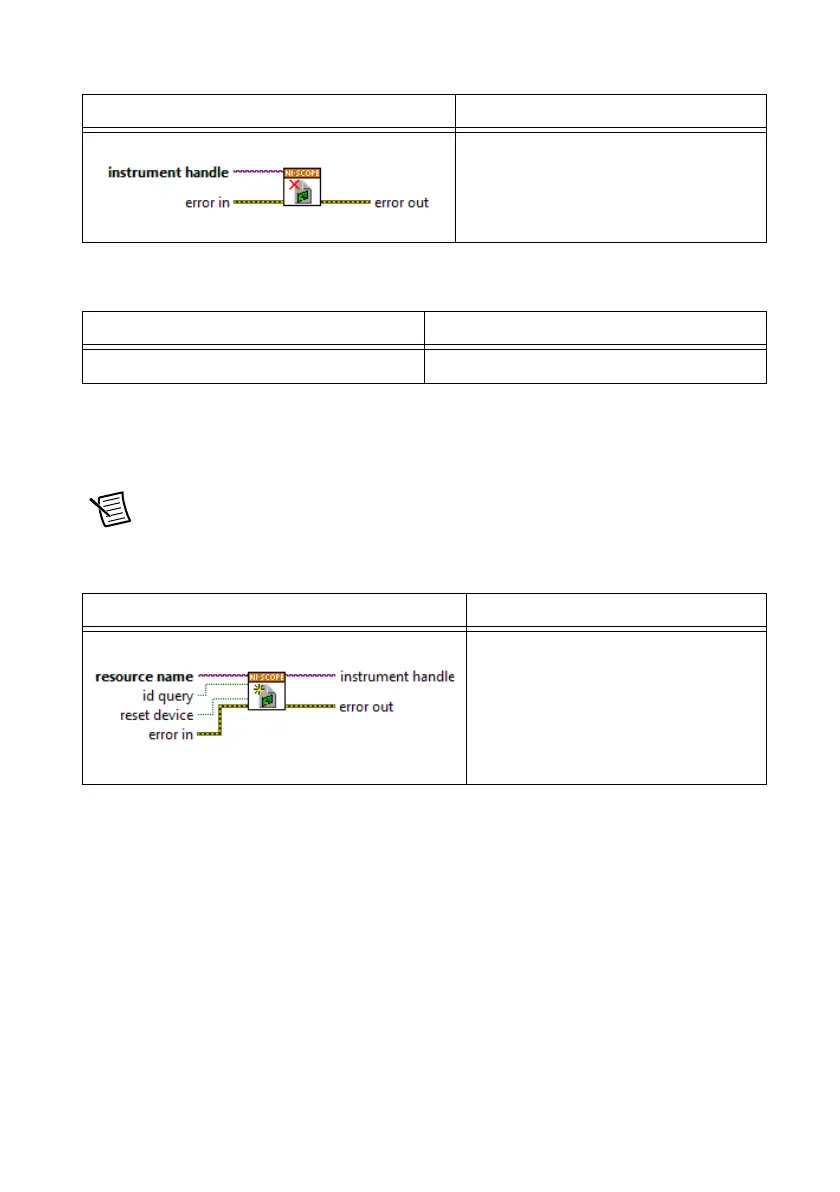

1. Open a session and obtain a session handle using the niScope Initialize VI.
LabVIEW VI C/C++ Function Call
Call niScope_close with the
following parameter:
vi: The instrument handle from
niScope_init
Table 8.
NI 5114 Timing Accuracy Limits and Published Specifications
Calibration Test Limits Published Specifications
±5.3 ppm ±25 ppm
LabVIEW VI C/C++ Function Call
Call niScope_init with the
following parameters:
resourceName: The device name
assigned by MAX
idQuery: VI_FALSE
resetDevice: VI_TRUE
