National Instruments PXIe-5413 Getting Started Guide

16
14
12
18
19
17
15
13
10
11
8
6
4
2
1
3
5
7
9

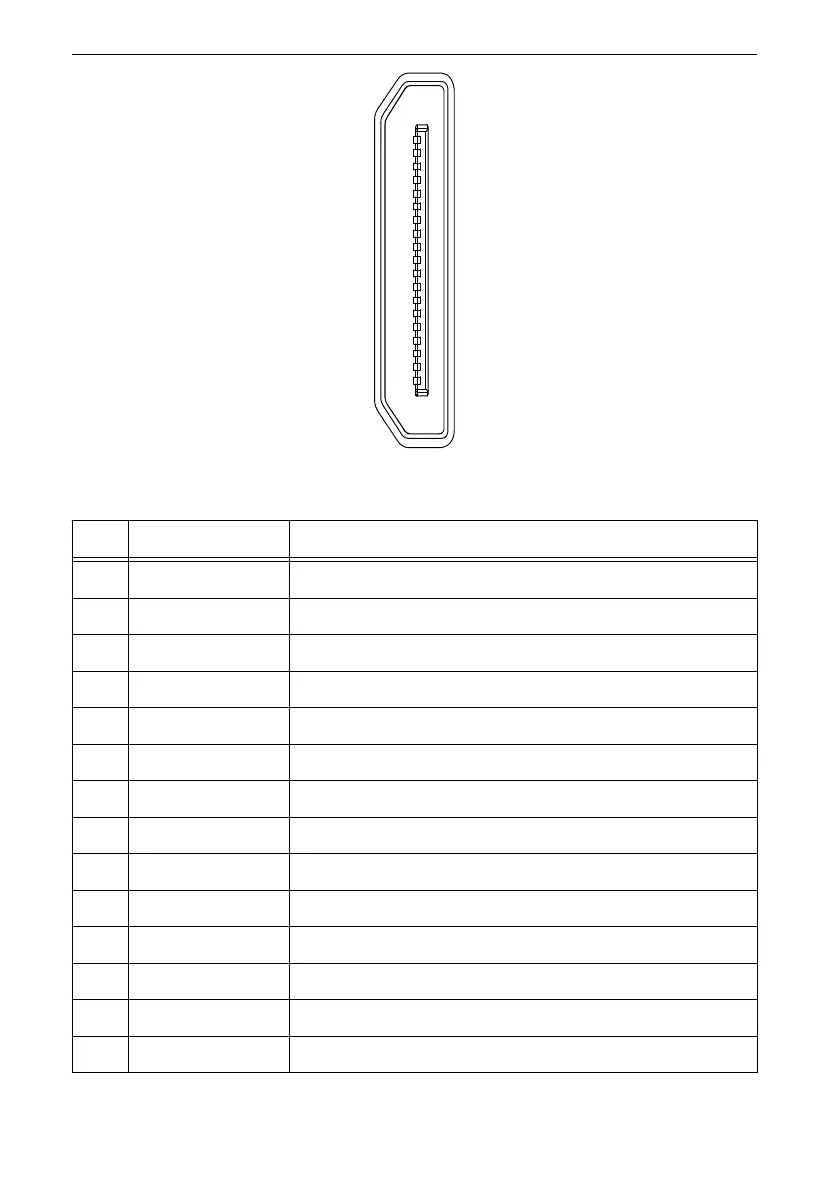

Table 4. AUX 0 Pin Signal Descriptions
Pin Signal Description
1 GND Ground reference for signals
2 NC No connection
3 GND Ground reference for signals
4 GND Ground reference for signals
5 NC No connection
6 GND Ground reference for signals
7 GND Ground reference for signals
8 AUX 0/PFI 0 Bidirectional PFI line
9 AUX 0/PFI 1 Bidirectional PFI line
10 GND Ground reference for signals
11 AUX 0/PFI 2 Bidirectional PFI line
12 AUX 0/PFI 3 Bidirectional PFI line
13 GND Ground reference for signals
14 AUX 0/PFI 4 Bidirectional PFI line
PXIe-5413 Getting Started Guide | © National Instruments | 9
