© National Instruments 3 NI sbRIO-960x/962x/963x OEM Instructions & Specifications
Figure 2 shows the location of features on the NI sbRIO device. The
features available vary between device models. Refer to Table 1 or the
appropriate section of the manual to see if a feature is available on your
model.

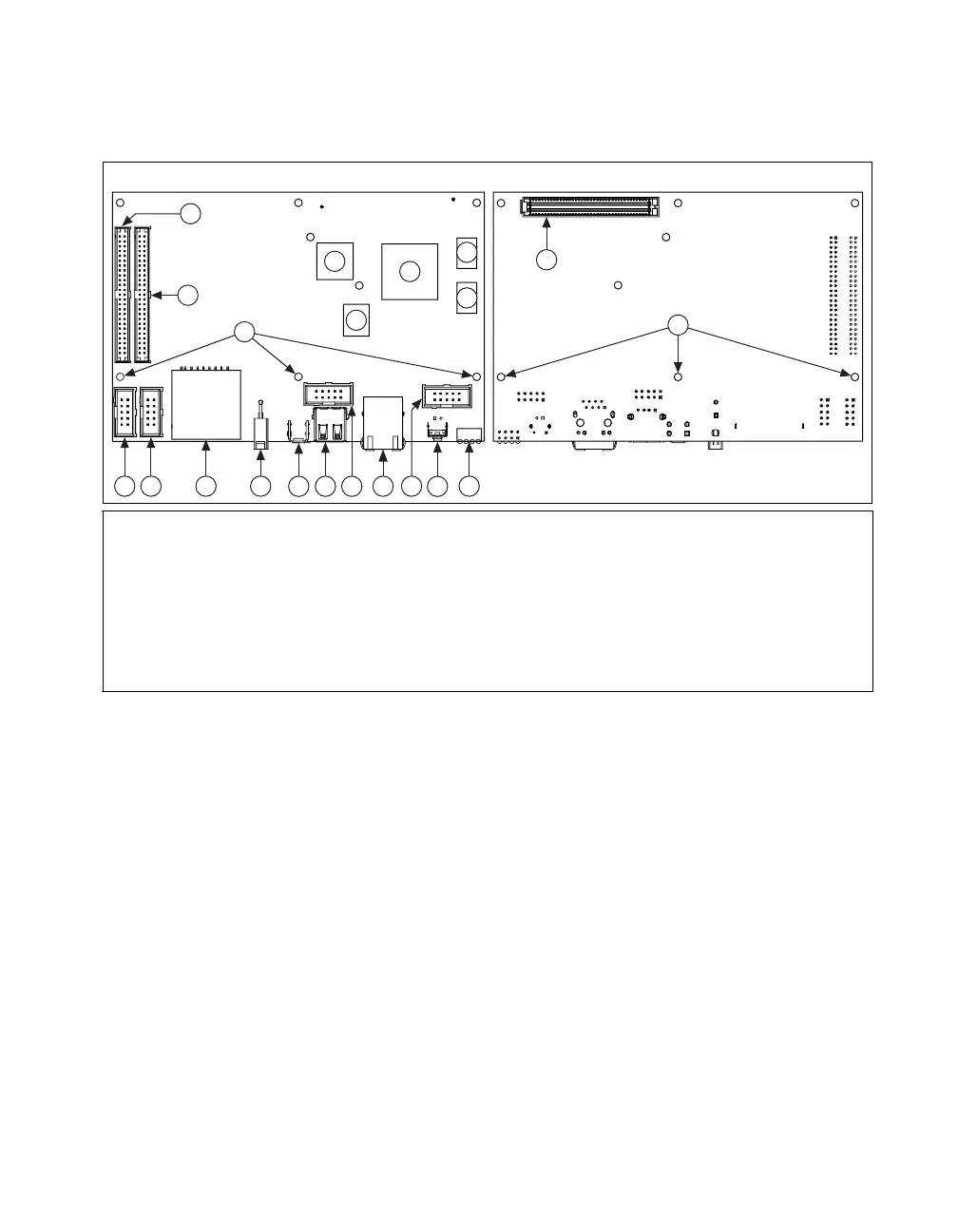

Figure 2. All possible components on the NI sbRIO Device
1 W502, RS-485 (COM3)
2 W503, RS-232 (COM2)
3 J504, SDHC
4 J506, Power Connector
5 Chassis Ground Bracket
6 J507, USB Host Port
7 W500, CAN (CAN0)
8 J505, RJ-45 Ethernet Port
9 W501, RS-232 Serial (COM1)
10 Reset Switch
11 LEDs
12 J502, DIO
13 J503, MIO
14 Mounting Holes Connected to Chassis Ground
15 FPGA
16 NAND Flash
17 Processor
18 DDR Memory
19 J1, RIO Mezzanine Card Connector
5
4
6
7
8
9
10
11
14
16
15
17
19
14
Primary Side
Secondary Side
31 2
12
13
18
18
