National Instruments sbRIO-9611 User Manual

NI sbRIO-961x/9612XT/963x/9632XT/964x/9642XT 4 ni.com

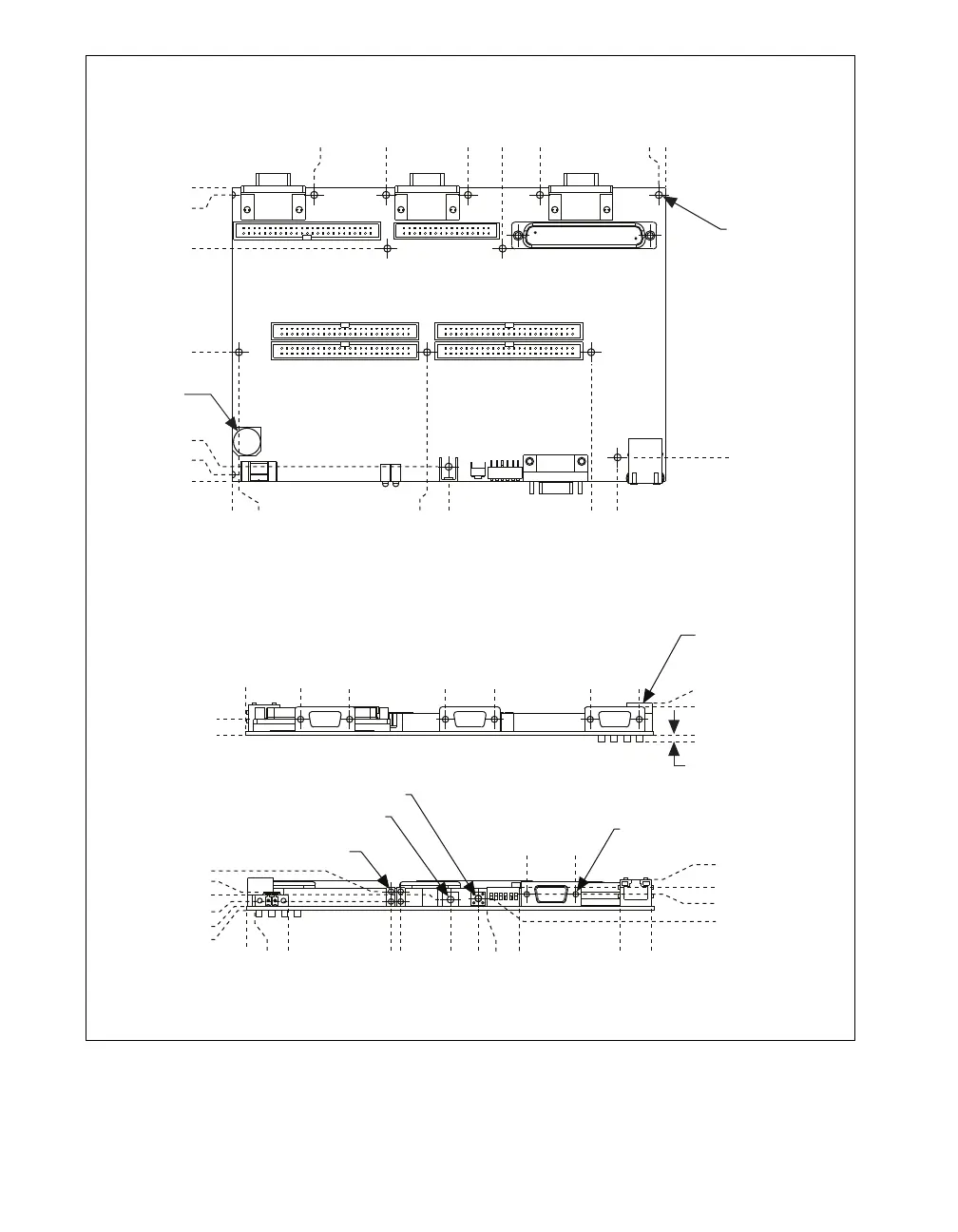

Figure 2. NI sbRIO-961x/9612XT/963x/9632XT/964x/9642XT
Dimensions in Inches (Millimeters)
0.166 (4.22)
0.000 (0)
0.847 (21.52)
4.838 (122.89)
5.492 (139.5)
5.633 (143.07) 6.617 (168.06)
7.503 (190.58)
8.138 (206.71)
2.905 (73.79) 3.100 (78.74)
4.100 (104.14) 4.659 (118.33)
6- 32 Threads
4-40 Threads
Ø 0.112 (2.84)
Ø 0.138 (3.50)
0.080 (2.03)
0.000 (0)
0.220 (5.59)
0.180 (4.57)
0.380 (9.65)
0.365 (9.28)
0.242 (6.16)
0.327 (8.31)
0.469 (11.91)
0.625 (15.88)
1.107 (28.12)
0.000 (0) 2.091 (53.11) 4.017 (102.03) 5.001 (127.03) 6.927 (175.95)
7.911 (200.94)
0.574 (14.58)
–0.110 (2.79)
Minimum Clearance
Needed Below Board
2 mm Clearance
Required Above
This Capacitor
0.651 (16.54)
0.327 (8.31)
0.000 (0)
2.440 (61.98)
4.100 (104.14)
0.000 (0)
0.000 (0.00)
0.125 (3.18)
0.275 (6.99)
2 mm Clearance
Required Above
This Capacitor
4.400 (111.76)
5.415 (137.54)
5.550 (140.97)
0.450 (11.43)
0.131 (3.33)
3.691 (93.75)
6.796 (172.62) 7.295 (185.29)
8.200 (208.28) 8.076 (205.13) 5.826 (147.98) 4.466 (113.44) 2.916 (74.07) 1.556 (39.52) 5.121 (130.07)
12×Ø 0.134 (3.40)
