You can install up to three board-only C Series I/O modules on the
NI sbRIO device. The following figure shows the dimensions of the
NI sbRIO device with three board-only C Series I/O modules installed.

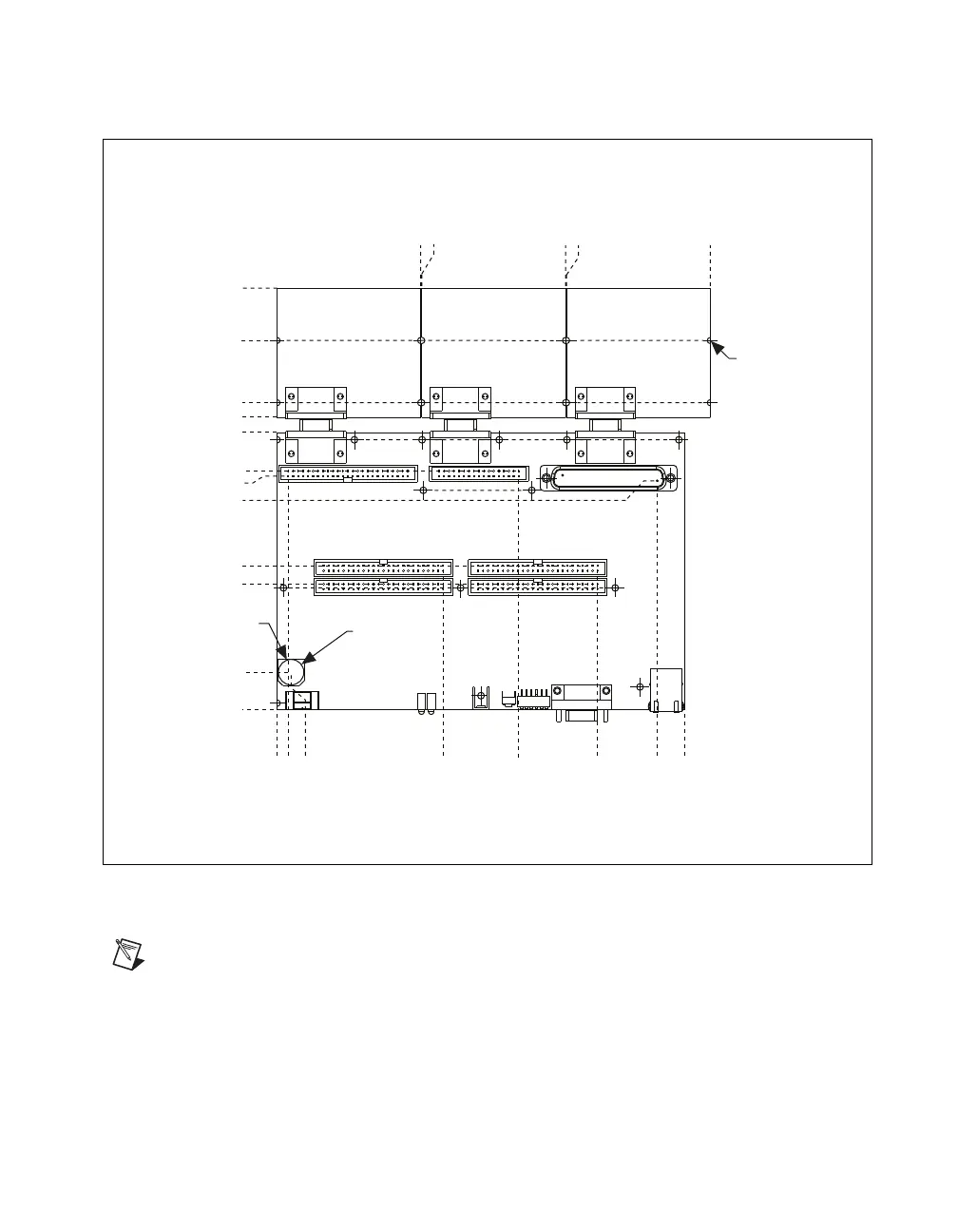

Figure 3. NI sbRIO-961x/9612XT/963x/9632XT/964x/9642XT with C Series Modules,
Dimensions in Inches (Millimeters)
Note
To maintain isolation clearances on the C Series modules, do not use mounting
hardware larger than 0.240 in. (6.1 mm) in diameter and maintain an air gap of at least
0.200 in. (5.0 mm) from the modules to anything else.
5.550 (140.97)
8.200 (208.28)
0.000 (0)
0.000 (0)
5.860 (148.84)
6.160 (156.46)
7.410 (188.21)
8.460 (214.88)
8×Ø 0.125 (3.18)
2.885 (73.28)
2.514 (63.86)
4.785 (121.55)
4.685 (119.00)
4.591 (116.60)
7.641 (194.08) 6.442 (163.63)
3.340 (84.84)
4.859 (123.42)
0.226 (5.74)
0.747 (18.97)
2 mm Clearance Required
Above This Capacitor
0.285 (7.24)
Ø 0.512 (13.00)
2.889 (73.38) 2.910 (73.91) 5.799 (147.29) 5.820 (147.83) 8.709 (221.21)
