Native Instruments TRAKTOR KONTROL S3 User Manual

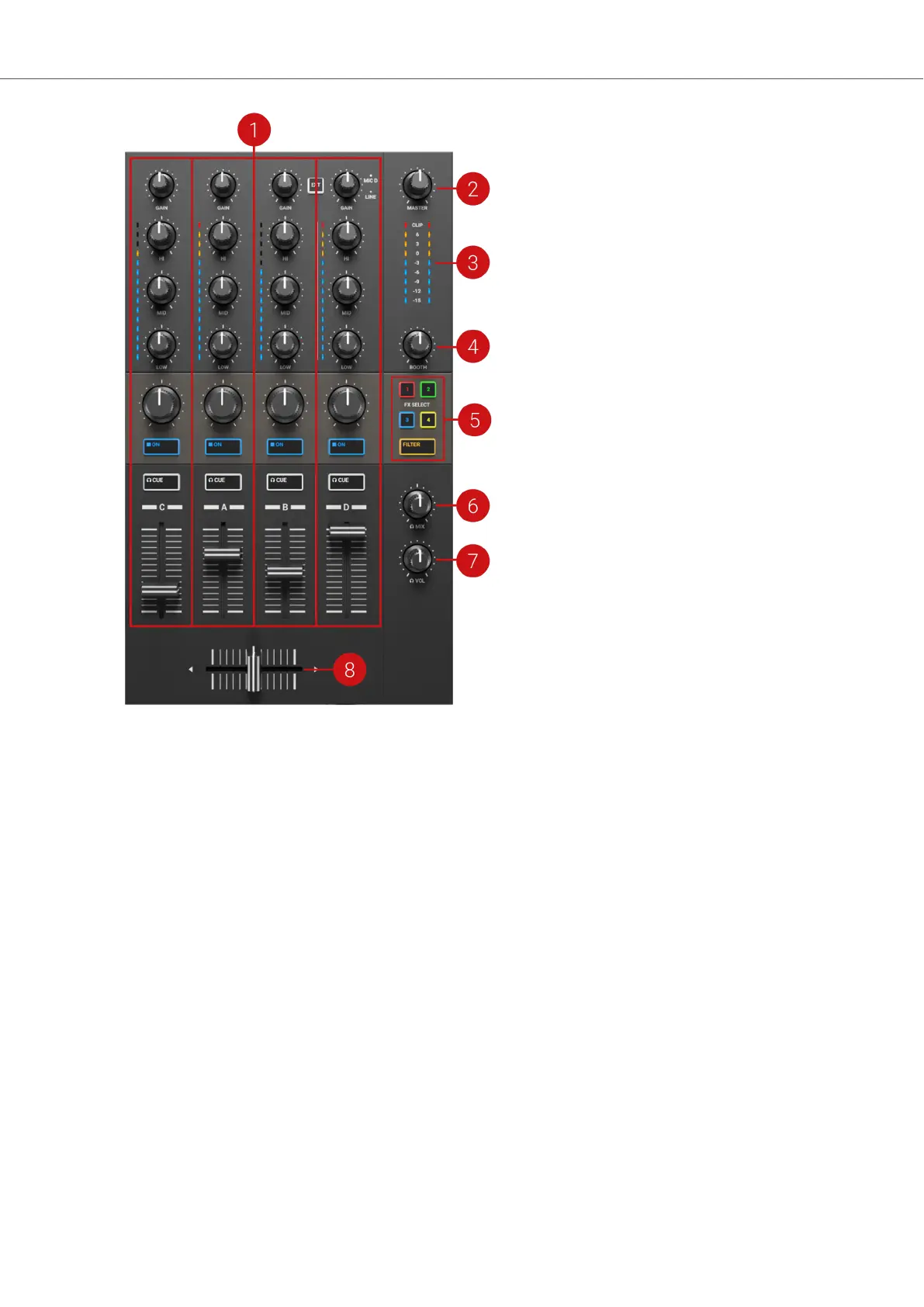

(1) Mixer Channel A, B, C, D: The Mixer channels receive the individual audio signals from the
Decks. Each Mixer channel contains controls to adjust the audio signal's frequency content and to
adjust the outgoing volume before the audio signal is sent to the MASTER output.
(2) MASTER knob: Adjusts the MASTER signal level.
(3) Master Level Meter: Provides visual feedback on the current Master Output volume level. The
blue LEDs indicate if the signal is below the Headroom area. The red LED indicates if the signal is
clipping. The yellow LEDs indicate if the audio signal is currently within the Headroom area before
the audio signal starts clipping.
(4) BOOTH knob: Adjusts the volume of the Booth output signal for the DJ monitors.
(5) MIXER FX SELECT buttons: Select the MIXER FX to be controlled by the individual MIXER
FX controls in the Mixer channels.
(6) MIX knob: Adjusts the signal mix between the MASTER signal and the CUE channel signal in
the headphones.
(7) VOL knob: Adjusts the level for the CUE channel.
TRAKTOR KONTROL S3 Overview
11
