26 ALGO® 5 Newborn Hearing Screener Service Manual
P/N 000976 Rev.A
• Remove the 16 M3 x 5 mm Phillips screws (Natus P/N 800212) that hold the
inner shell on (including the 2 screws that attach the plate with the
connectors) and carefully pry it open to expose the motherboard.

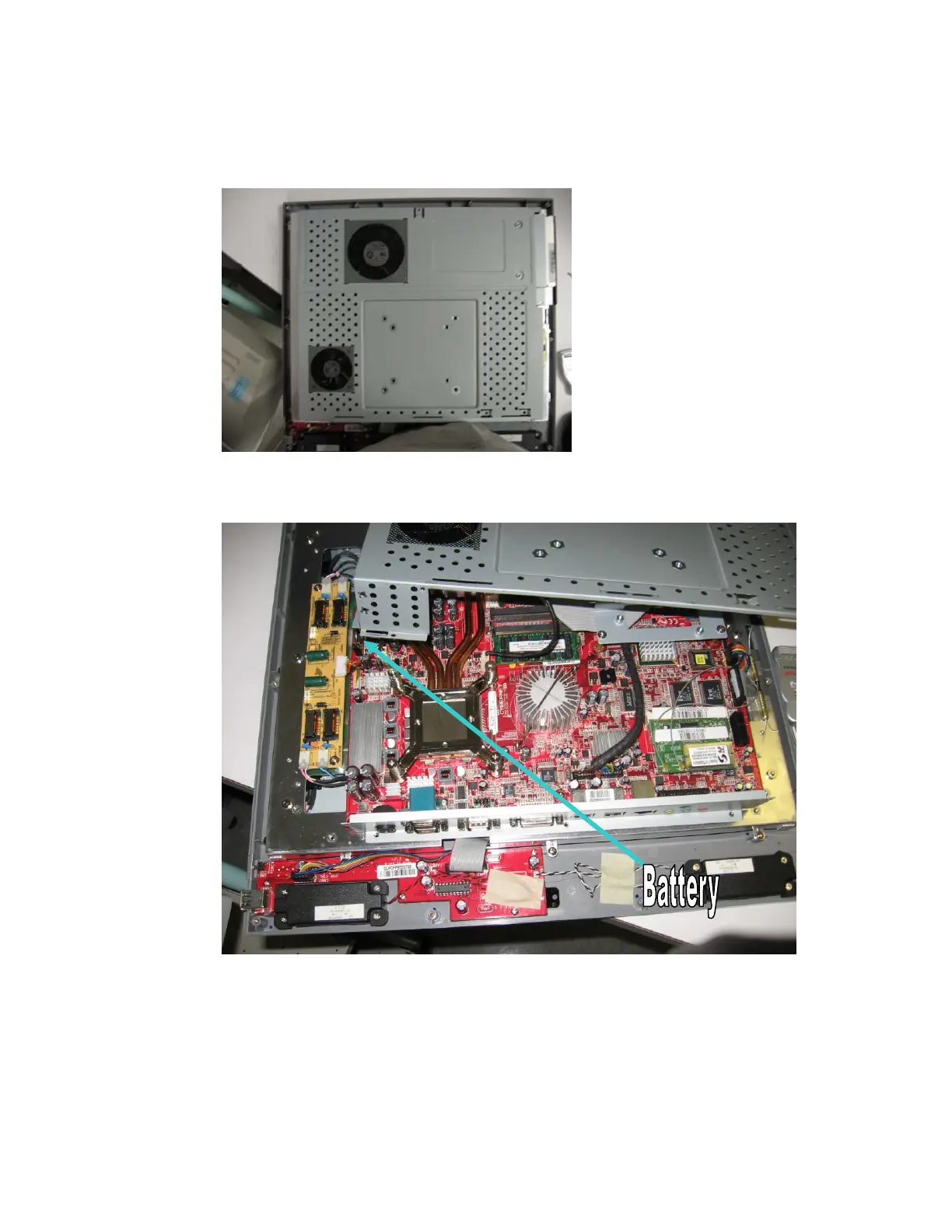

FIGURE 18: View outer shell Panel PC
FIGURE 19: Location of Battery on Motherboard Panel PC
