ALGO® 5 Newborn Hearing Screener Service Manual
P/N 000976 Rev.A
9

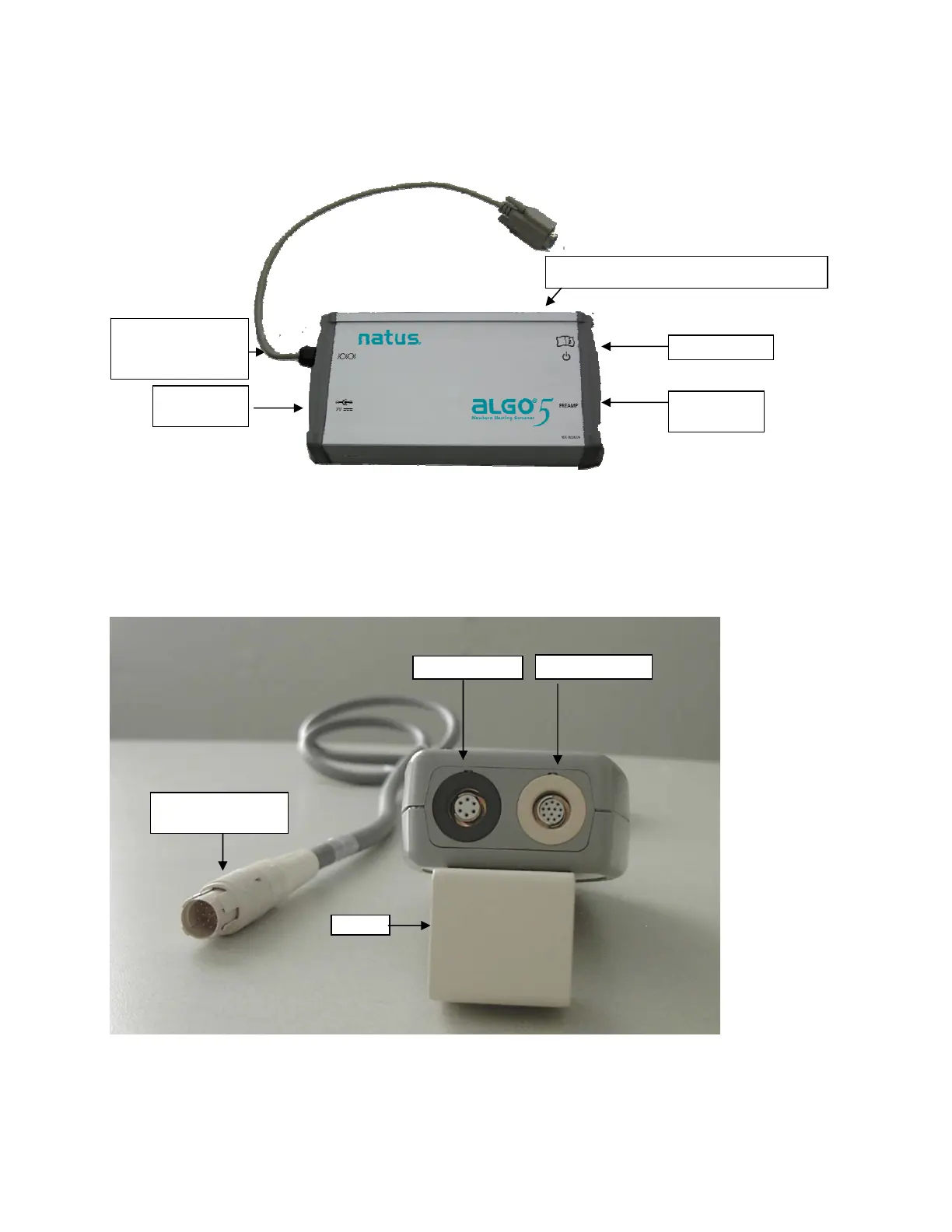

FIGURE 3: DSP Box
FIGURE 4: Preamplifier 5 (Preamp 5)
Power
Socket
Panel PC
Communication
cable
Status LED
Preamp
Socket
ATA Socket
PCA Socket
Preamp 5 Cable
Connector
Hook
DSP Serial Number Label on to
p
