NV30/NV40 Operations and Maintenance Manual Operating the transmitter
Page 2-110 Issue 3.3 2014-12-10
•IPA Voltage
•Average IPA Output Power
• Controller Temperature
The values associated with each of these fixed meters (cannot be changed to another meter) are of a
linear nature so that changes made to the Full Scale Voltage field (allowable range is 1- 6 V, defaulted
to 6 V) will be reflected in the other fields according to the following equation:
(Current Value/Full Scale Value) x Full Scale Voltage = Current Voltage
Press Apply to activate changes. Press Cancel to discard changes.

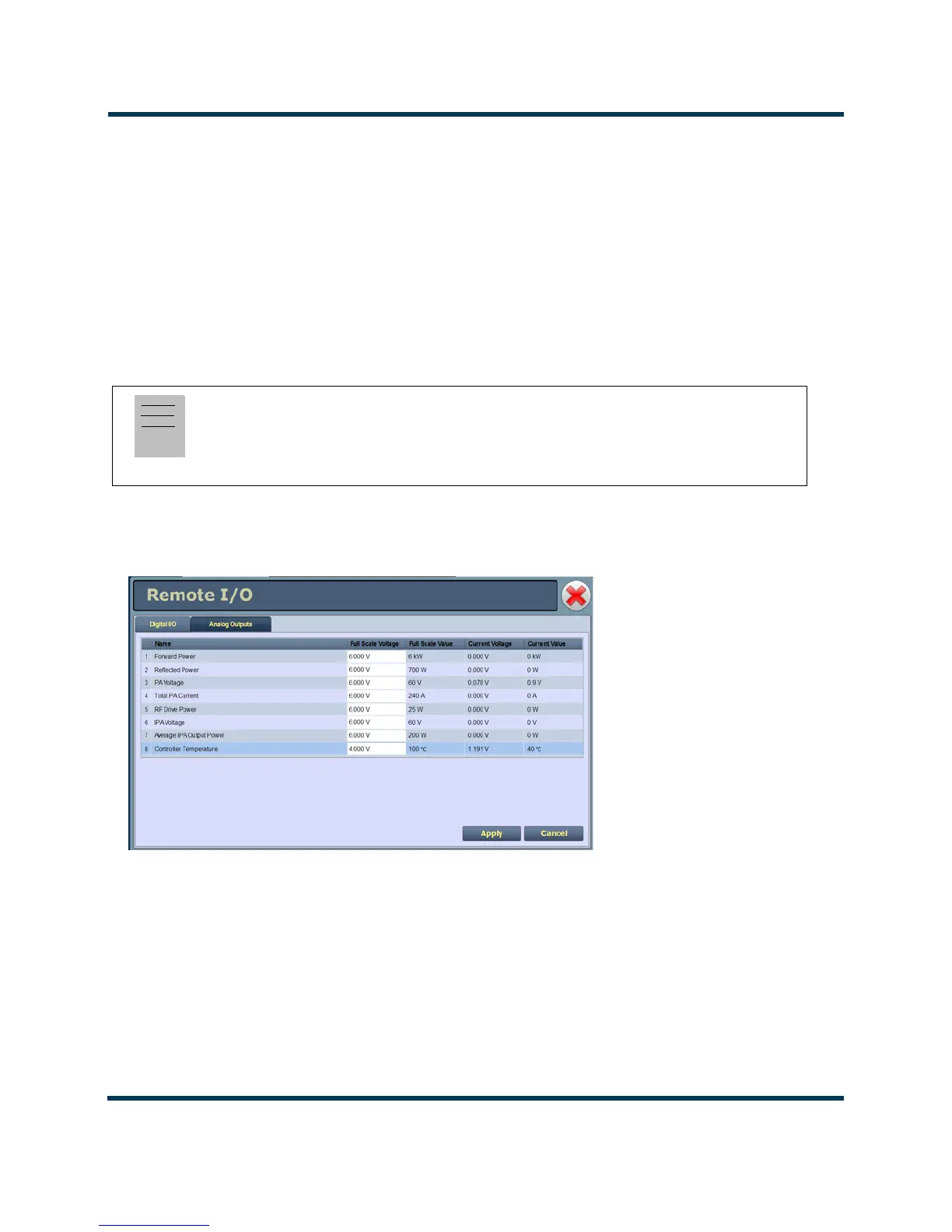

Figure 2.84: Analog Outputs Page
Note:
The Current Voltage reading reflects the value that can be measured at the associated remote
analog output pin for the given Current Value. See the NV series transmitter Pre-installation
Manual for actual remote analog output pin assignments.
