NV30/NV40 Operations and Maintenance Manual Non-standard maintenance
Issue 3.3 2014-12-10 Page 4-9

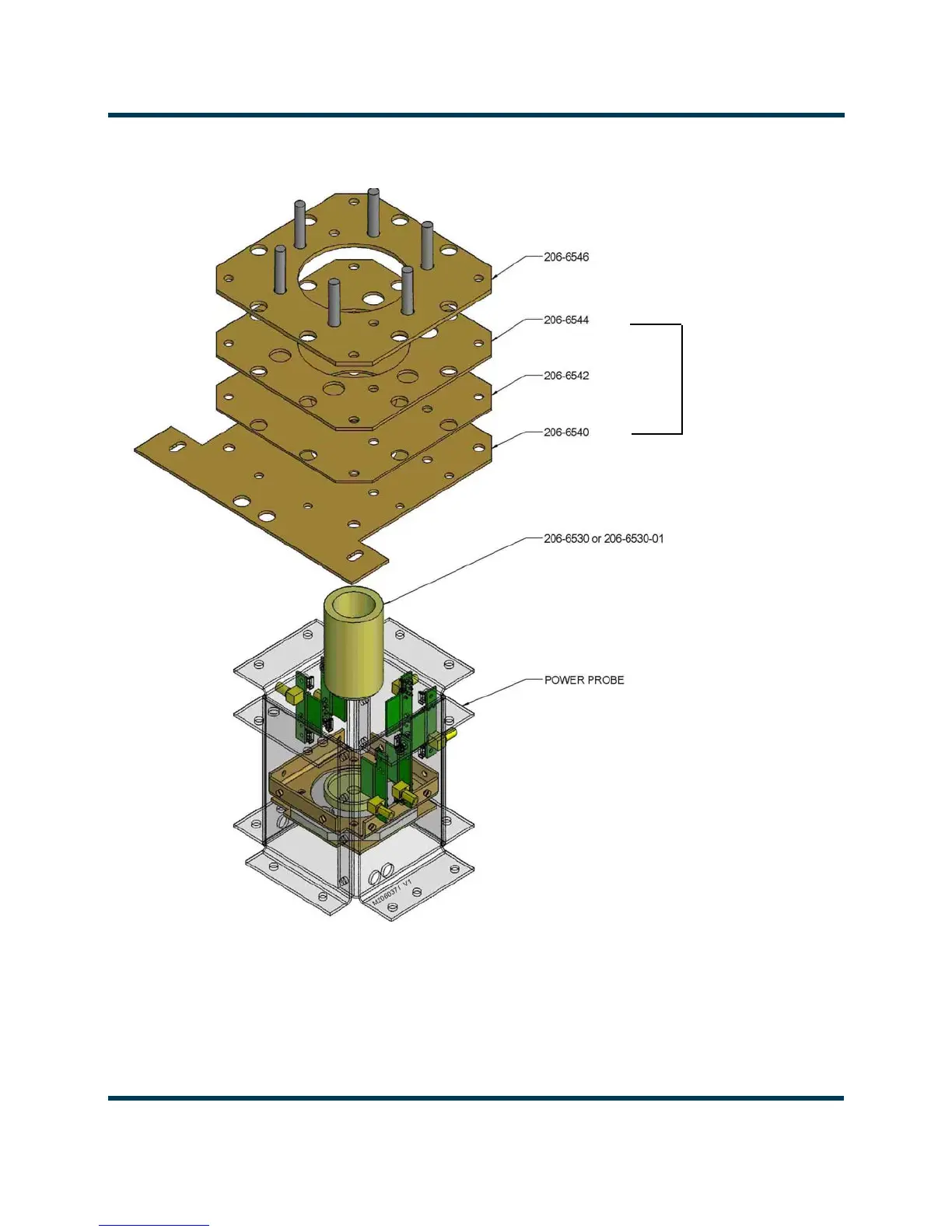

Figure 4.4: RF Output Connector Assembly Detail - 3-1/8 inch EIA
OUTPUT
CONNECTOR
CUP
OUTPUT PLATE
SPACER PLATES
206-6530-01
