NV30/NV40 Operations and Maintenance Manual Operating the transmitter
Issue 3.3 2014-12-10 Page 2-77

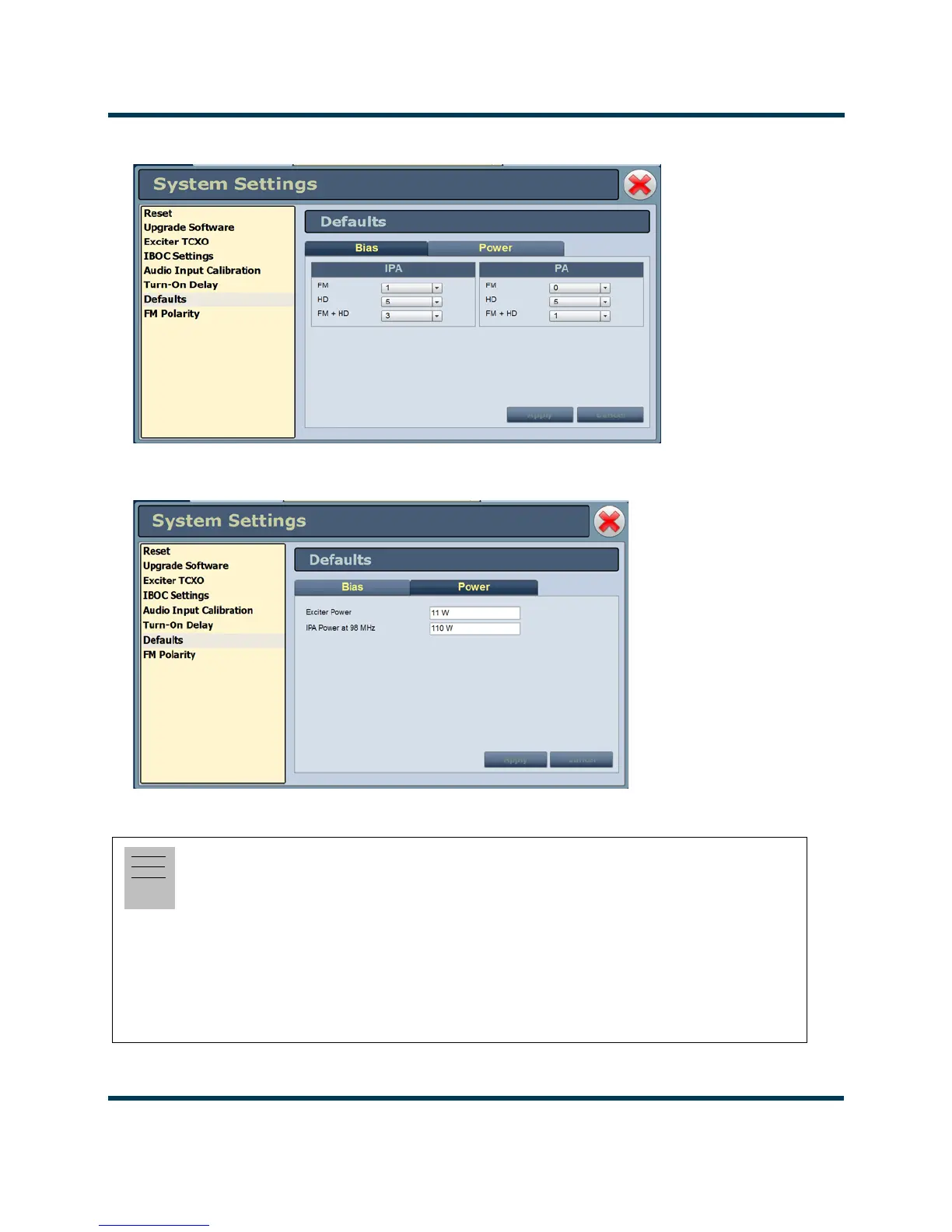

Figure 2.58: Defaults - Bias (IPA and PA default index values shown)
Figure 2.59: Defaults - Power
Note:
Default Exciter Power is transmitter specific; NV3.5/NV5 = 11W; NV7.5/NV10 = 25W;
NV15/NV20 = 65W and NV30/NV40 = 130W.
Default IPA Power at 98MHz is 110W.
These values are factory determined and should not require adjustment. These values apply for FM
mode only.
