68

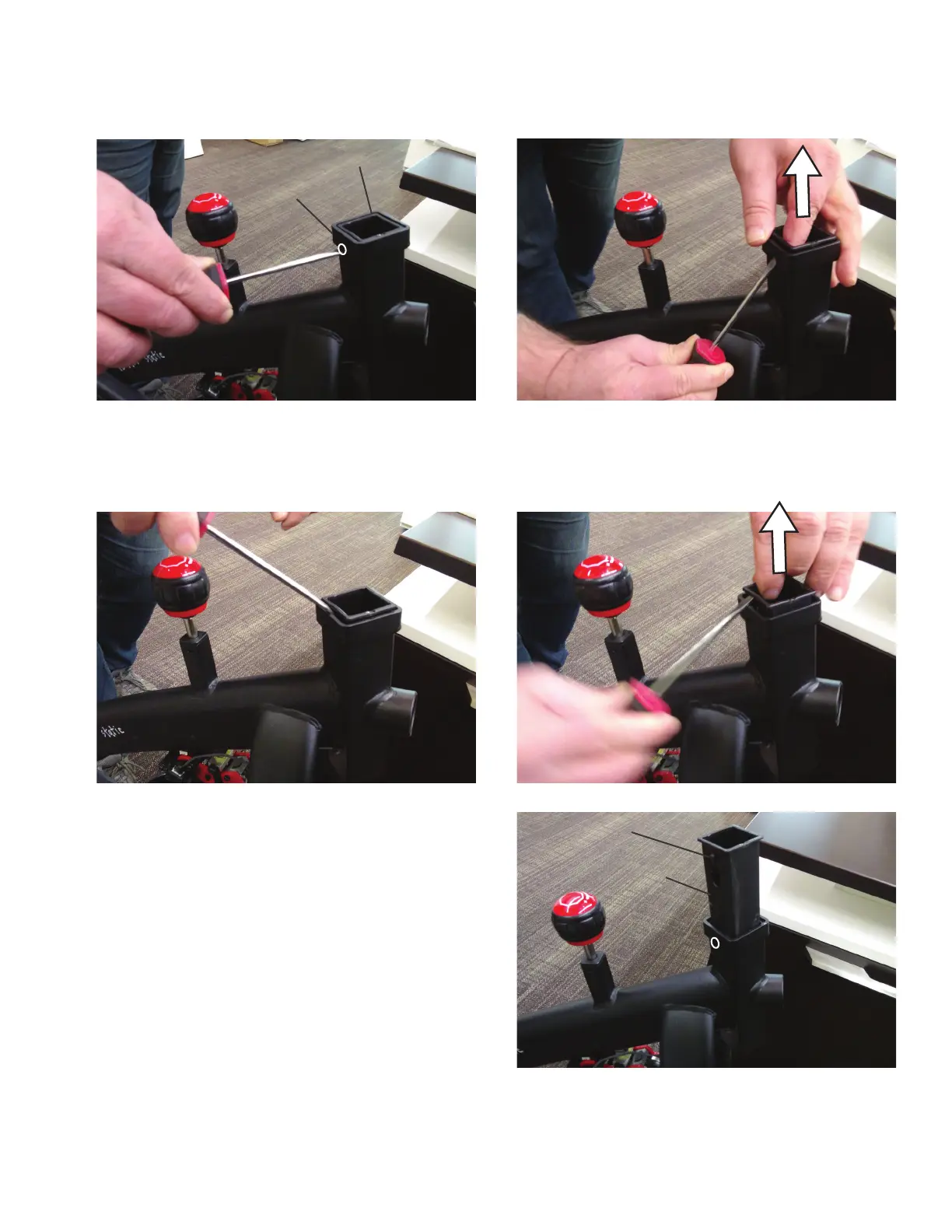

10. On the right-rear side of the Handlebar Post, there is a small opening
(indicated by oval) where the Handlebar Bushing Tab is secured. Place
the end of a small standard screwdriver into the opening, and push the tab
in while pivoting upward the Bushing.
Securing Tab
Handlebar Post Bushing
Handlebar Post
Handlebar Post Bushing
11. With the Handlebar Post Bushing released, place the end of the
screwdriver under the lip of the Bushing. Pivot upward until the Handlebar
Post Bushing is released. Continue pushing upward to remove the
Bushing.
12. Install the new Handlebar Post Bushing into the Frame Assembly. Be
sure to orient the new Handlebar Post Bushing so the securing tab sets
into the small opening.
13. Re-install all remaining parts that were removed in reverse order.
14. If not replacing the Seat Post Bushing, skip to Step 21.
