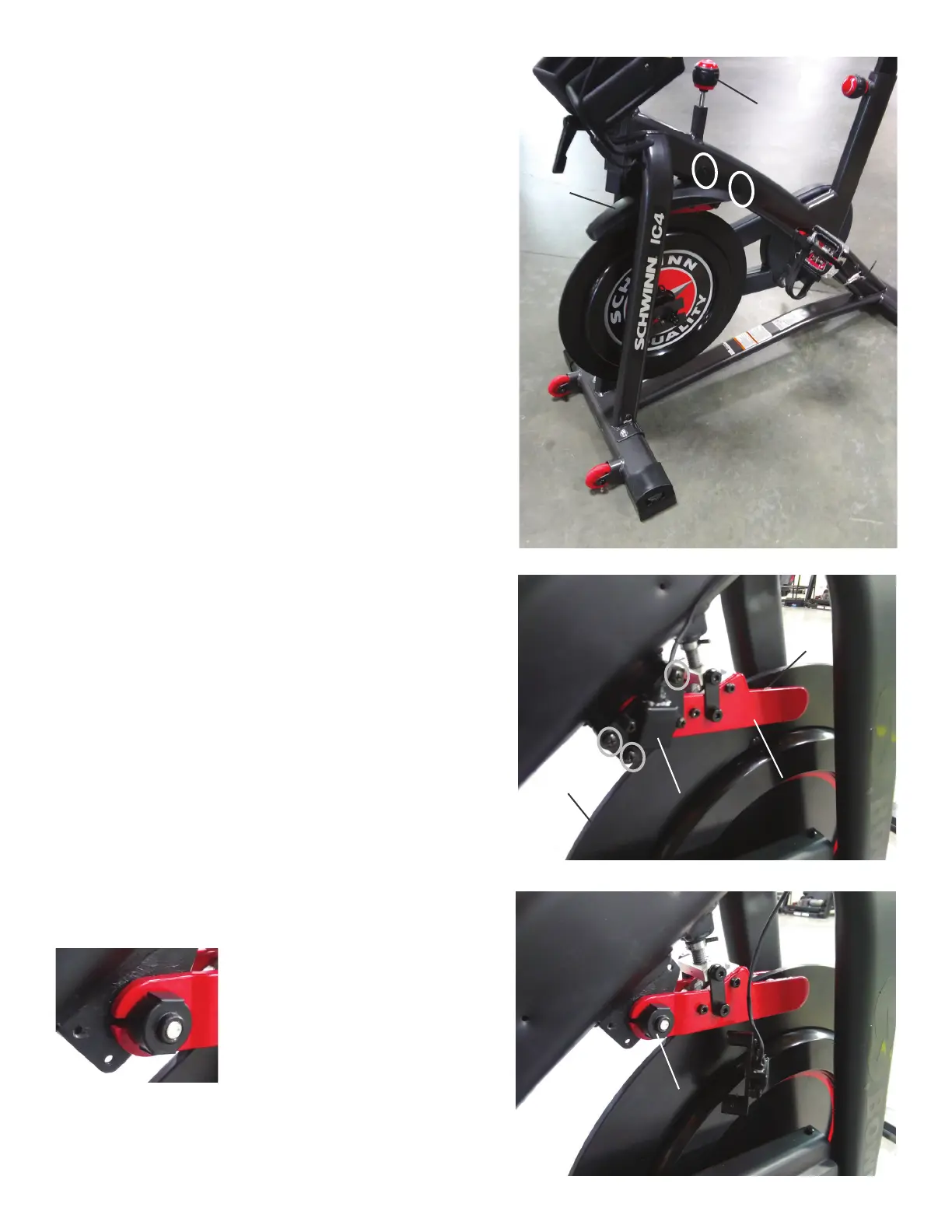

7. Using a #2 Phillips screwdriver, loosen and remove the hardware
(indicated on one side by ovals) that attaches the Fender to the Main
Frame. Set the hardware safely aside for reassembly.
NOTICE: Hold the Fender so that it does not fall.
8. Remove the Fender from the front of the machine after noting how
the Resistance Cable routes through it. Place the Fender outside the work
area.
9. Loosen the Resistance Knob to the minimum resistance setting.
10. Using a #2 Phillips screwdriver, remove the hardware (indicated by
ovals) that secures the Resistance Sensor. Allow the Resistance Sensor
to hang from the Cable.
NOTICE: Do not crimp the cable.
11. Remove the Resistance Sensor Magnet after noting the at
segments are oriented up and downward. This will assist with re-
assembly.
Fender
Resistance Knob
Brake Assembly
Resistance
Sensor
Flywheel
Brake
Magnet
Resistance Sensor
Magnet
