86

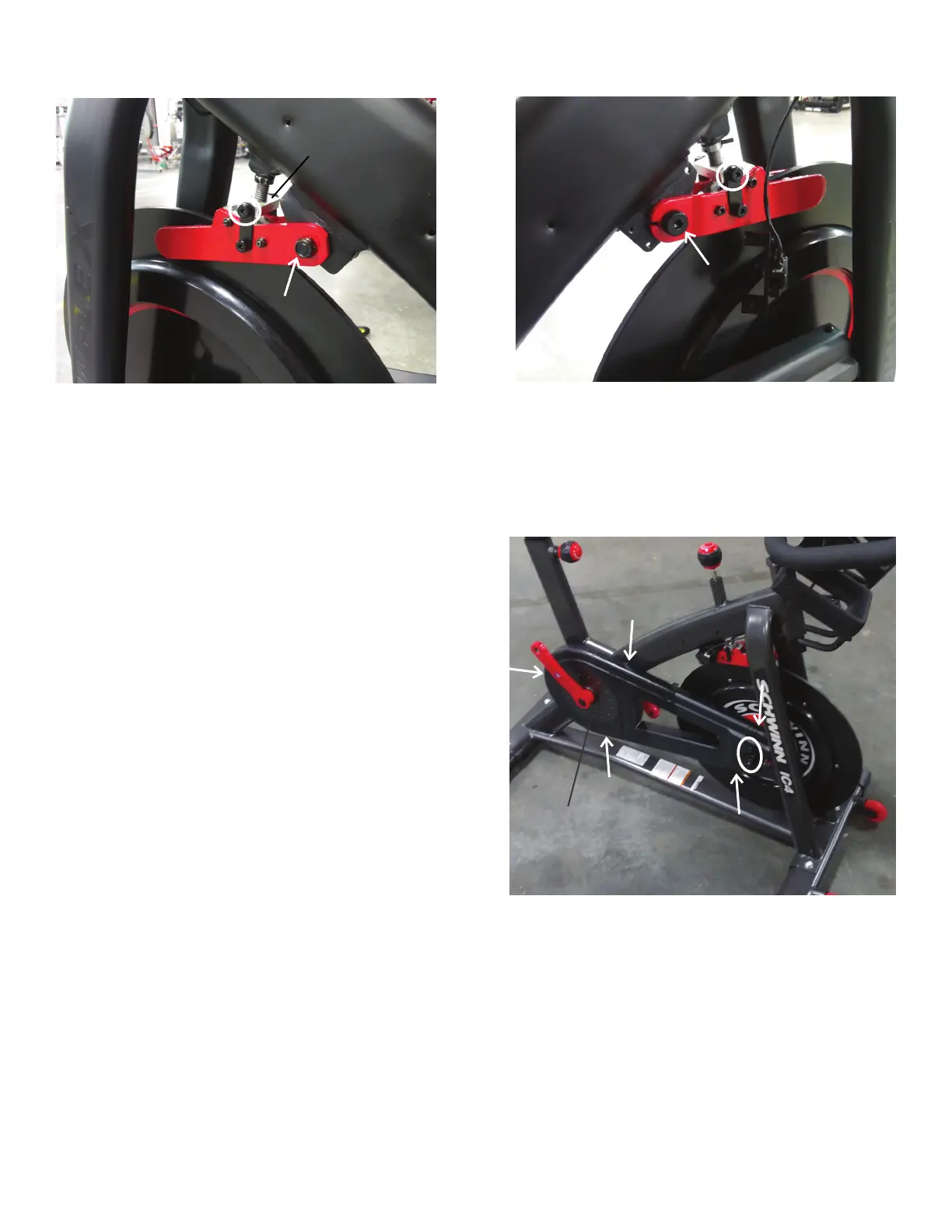

13. Using a 3.5mm hex wrench, remove the hardware (indicated by
ovals) that attaches the Brake Assembly to the Resistance Nut from both
sides of the machine. Carefully remove the Brake Assembly.
NOTICE: Be prepared to support the Brake Assembly.
14. Using a #2 Phillips screwdriver, remove the indicated hardware from
the Drive Belt Cover. Carefully remove the Drive Belt Cover and set it
safely aside for reassembly.
Note: The oval indicates the two machine screws with washers.
Drive Belt Cover
12. Using a 10mm open end wrench and a 5mm hex wrench, remove the
hardware (indicated by arrows) from both sides of the machine.
Resistance Nut
Note: Please disregard the Right Crank Arm in the above
image. It was removed during an earlier step.
To Next Page
