137

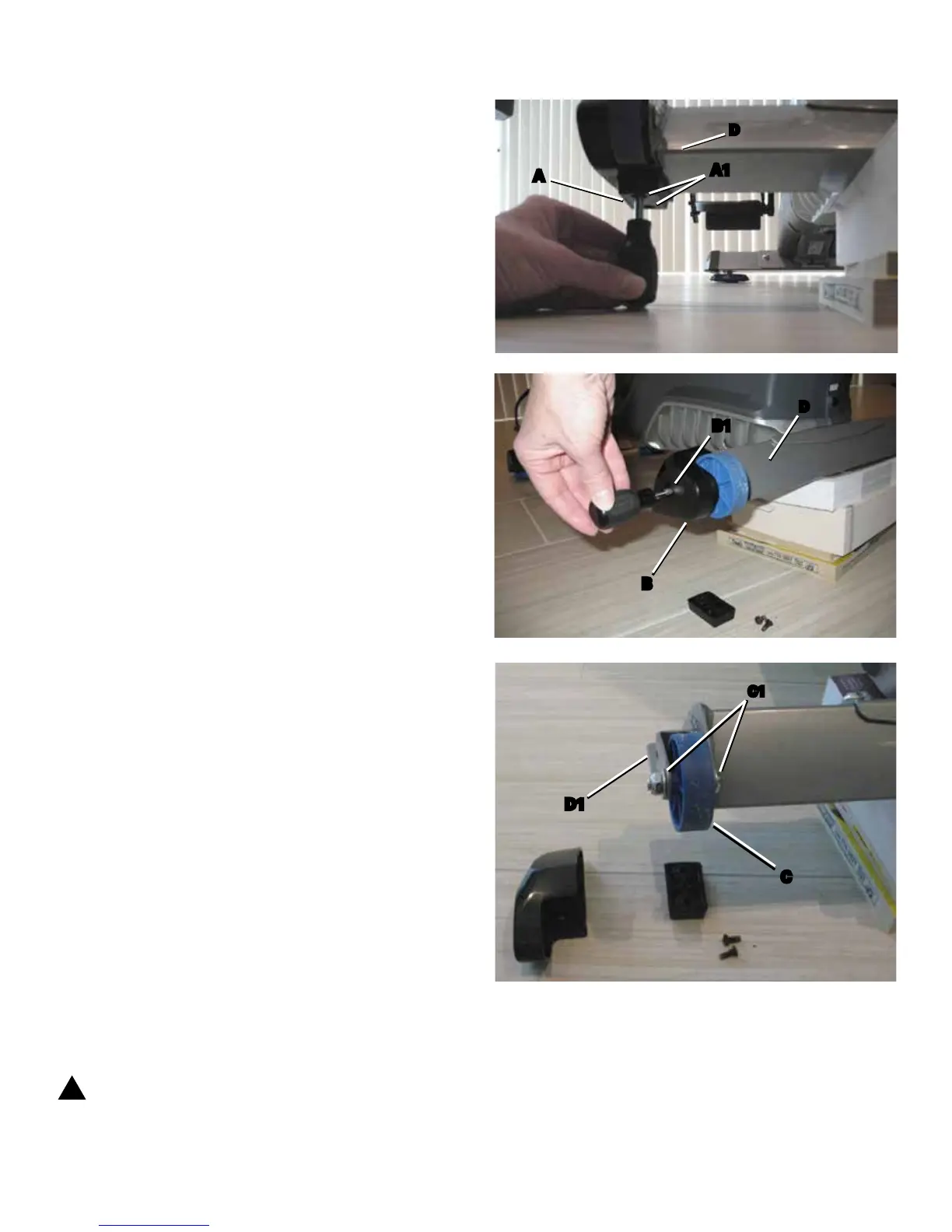

Note: Your machine may not match the image. For reference only.
1. Place a static object (like a book or box) under the front
stabilizer (C). The static object should not be compressible.
2. Using a short #2 Phillips screwdriver, loosen and remove
the screws (A1) from the Footpad (A), and set them safely
aside. Remove the Footpad from the front stabilizer (D). Set
the Footpad and screws safely aside.
3. Loosen and remove the screw (B1) from the Endcap
assembly (B) and set it safely aside. Remove the Endcap
from the front stabilizer (D). Set the Endcap and screw safely
aside.
4. Using the 6mm hex key and 13mm wrench, loosen and
remove the hardware (C1) from the old Transport Wheel
assembly (C). Remove the old Transport Wheel from the
front stabilizer bracket (D1). Set the Transport Wheel and
hardware safely aside.
5. Installation is the reverse procedure.
NOTICE: Before fully attaching the Endcap, be sure that
the Transport Wheel can turn freely.
6. Dispose of the old parts.
7. Final Inspection
Inspect your machine to ensure that all hardware is tight and
components are properly assembled.
!
Do not use until the machine has been fully
assembled and inspected for correct performance
in accordance with the Owner’s Manual.
A
D
A1
C1
C
D1
B1
B
D
