Nautilus E618 Service Manual
5
of 1
of 1 rating
137 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
13
N
Q
QQ
SS
RR
T
FF
A
B
C
I
E
G
H
J
R
S
K
L
M
X
U
V
W
DD
F
O
P
TT
R
S
AA
BB
CC
Y
Z
D
EE
VV
UU
II
JJ
HH
LL
GG
KK
PP
OO
NN
U
MM

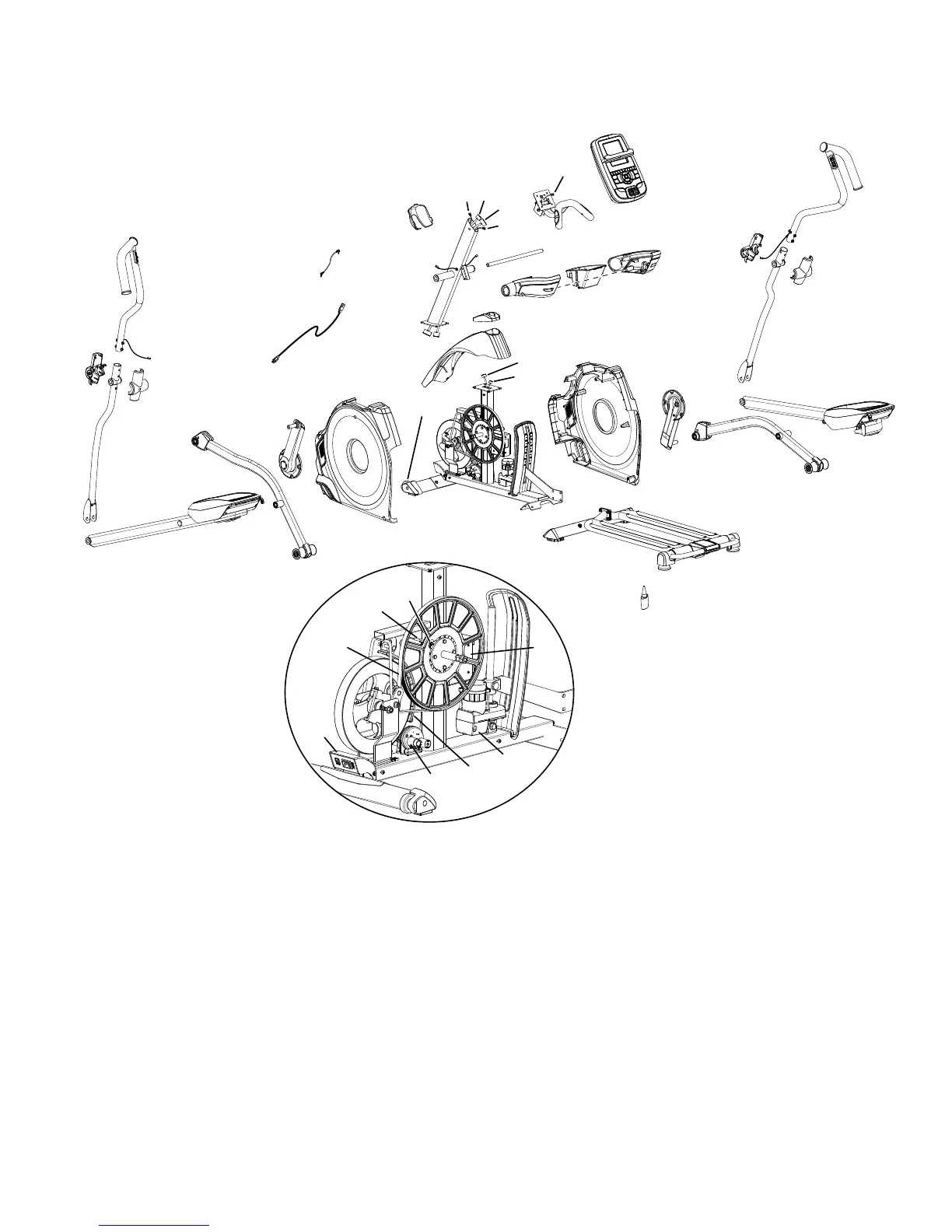

Maintenance P
arts
12
14
Table of Contents
Table of Contents
1
Important Safety Instructions
2
Safety Warning Labels and Serial Number
3
FCC Compliance
3
Grounding Instructions
4
Specifications
4
Maintenance
5
Heart Rate Chest Strap Battery Replacement
5
Moving the Machine
6
Leveling the Machine
6
Connectivity
7
Troubleshooting
8
Console Service Mode
11
Maintenance Parts
13
Electrical Layout
15
Motor Control Board (MCB)
16
Replacement Procedure Skill Level
17
Set the Brake Tension (Calibration)
18
Adjust the Belt Tension
24
Replace the Tensioner Assembly
30
Replace the Brake Assembly
36
Replace the Console
42
Replace the Console Mast and Water Bottle Holder
46
Replace the Crank Arms
51
Replace the Input/Output (I/O) Cable in the Console Mast
55
Replace the Drive Belt and Flywheel
60
Replace the Front Stabilizer
68
Replace the Incline Adjuster Assembly
70
Replace the Remote Incline or Resistance Cables to Handlebars
76
Replace the Lift Motor
81
Replace the Lift Motor Wire in the Console Mast
89
Replace the Motor Control Board (MCB)
94
Replace the Pedals and Legs
101
Replace the Power Switch Assembly
104
Replace the Rail Assembly
109
Replace the Servo Motor
113
Replace the Shrouds
120
Replace the Speed Sensor
125
Replace the Static Handlebar
130
Replace the Upper and Lower Handlebar Arms
133
Replace the Transport Wheels, Endcaps and Footpads
136
Other manuals for Nautilus E618
Assembly Manual / Owner's Manual
56 pages
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Nautilus E618 and is the answer not in the manual?
Ask a question
Nautilus E618 Specifications
General
Display
LCD
Programs
29
Heart Rate Monitoring
Contact and telemetry enabled
Bluetooth Connectivity
Yes
User Profiles
4
Maximum User Weight
300 lbs
