23

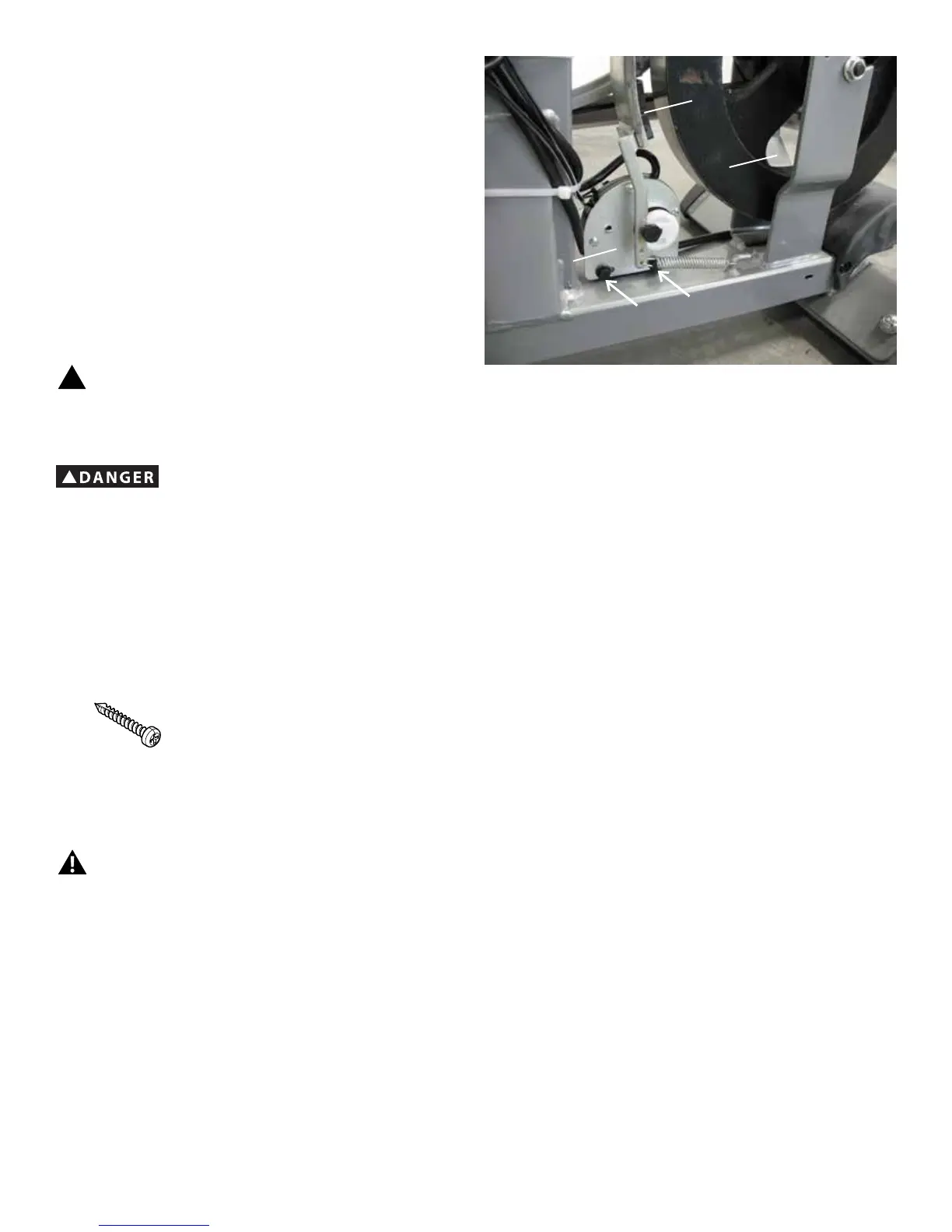

17.ToadjusttheBraketension,loosenthe2hexheadboltsand
move the Servo Motor assembly until the closest point on the Brake
Magnet is within 3.0mm (1/8”) of the Flywheel. Tighten the bolts.
Note: If the cardboard is not 3mm (1/8”) thick, you can use the pages
ofapaperbackbooktomeasurethegap.Approximately36
pages (sheets) = 3mm.
18. Remove the cardboard from between the Brake Magnet and the
Flywheel.
19. Before fully attaching the Shrouds, power up the machine to
verify that the Magnet Arm can move freely, and that the Brake
MagnetandFlywheeldonottouchatthemaximumresistancelevel.
!
Machine is on. Current is active. There is risk of electrical
shock. Be sure to keep ngers clear of all pinch hazards
when you change the resistance level.
Brake Magnet
Flywheel
Servo Motor
20. Turn the power switch to off and disconnect all power and allow to sit for 5 minutes.
!
To reduce the risk of electrical shock or unsupervised usage of the equipment, always unplug the power cord from the
wall outlet and wait 5 minutes before cleaning, maintaining or repairing this machine. Place the power cord in a secure
location.
21. Installation is the reverse procedure.
PuttheLeftShroudinpositionrsttoalignthescrewsfortheRightShroud.Installthetopscrewsrst.BesurethetabsintheMotorizedLiftCover
snap into the Side Shrouds.
NOTICE: This step may require two people. Be sure not to crimp any cables.
Note: Self-tapping screws attach the Shrouds to the Frame.
Installation does not require the use of the crank puller. Be sure the Crank Arms are connected at 180° from each other.
22. Inspect your machine to ensure that all hardware is tight and components are properly assembled.
Do not use until the machine has been fully assembled and inspected for correct performance in accordance with the Owner’s
Manual.
After adjusting the Brake Assembly, the resistance levels of the machine may be different. The user should adjust their workout levels accordingly.
