Nautilus E618 Service Manual

49

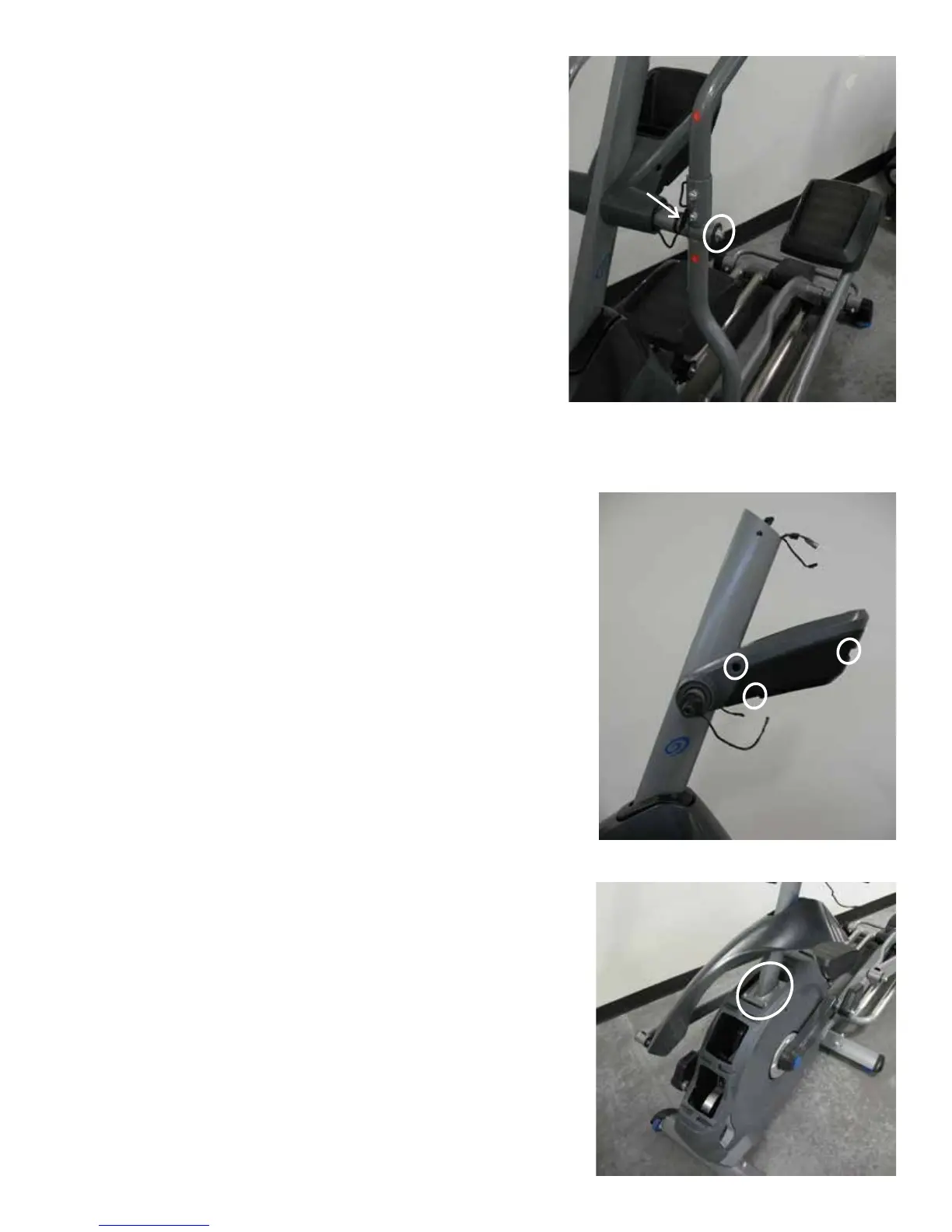

6. Disconnect the indicated Cable (with arrow) from the Upper Handlebar
that goes into the Console Mast.
7.Usinga6mmhexwrenchanda13mmwrench,removethehardware
from the Lower Handlebar Arm and the Arm Pivot Rod. The hardware on
both ends of the Arm Pivot Rod will need to be held to remove it.
8. Remove the Lower Handlebar Arms.
9. Using a #2 Phillips screwdriver, remove the 5 screws (3 indicated on left
side, two on right side) from the Water Bottle Holder.
If you are only replacing the Water Bottle Holder—go to Step 14.
If you are replacing the Console Mast—continue to Step 10.
10. Remove the Arm Pivot Rod from the Console Mast and set it safely
aside for reassembly.
Note: Be aware that the Arm Pivot Rod is coated with lubrication. Place it
on a rag or piece of cardboard to contain the lubrication.
11. Bend the edges of the Upper Shroud to disengage the inside tabs from
the Main Assembly, and slide the Shroud Cap and Upper Shroud up the
Console Mast.
12.Usinga6mmhexwrench,removethehardware(indicated)fromthe
Console Mast. Slightly pull the Mast up and disconnect the cables. Set the
hardware aside for reassembly.
NOTICE: Do not crimp the cables. Do not allow the cables to fall
down into the Main Unit or into the Console Mast. This
step may require two people.
13. Remove the Console Mast from the Upper Shroud.

Nautilus E618 Specifications

General

Display	LCD
Programs	29
Heart Rate Monitoring	Contact and telemetry enabled
Bluetooth Connectivity	Yes
User Profiles	4
Maximum User Weight	300 lbs
