Nautilus E618 Service Manual

86
Power Inlet (line)
Power Inlet (neutral)
Lift Motor Wire (to
Console)
Lift Motor position
potentiometer
Servo Control
Lift motor common
(neutral)
Lift Motor CW (line)
Lift Motor CCW (line)

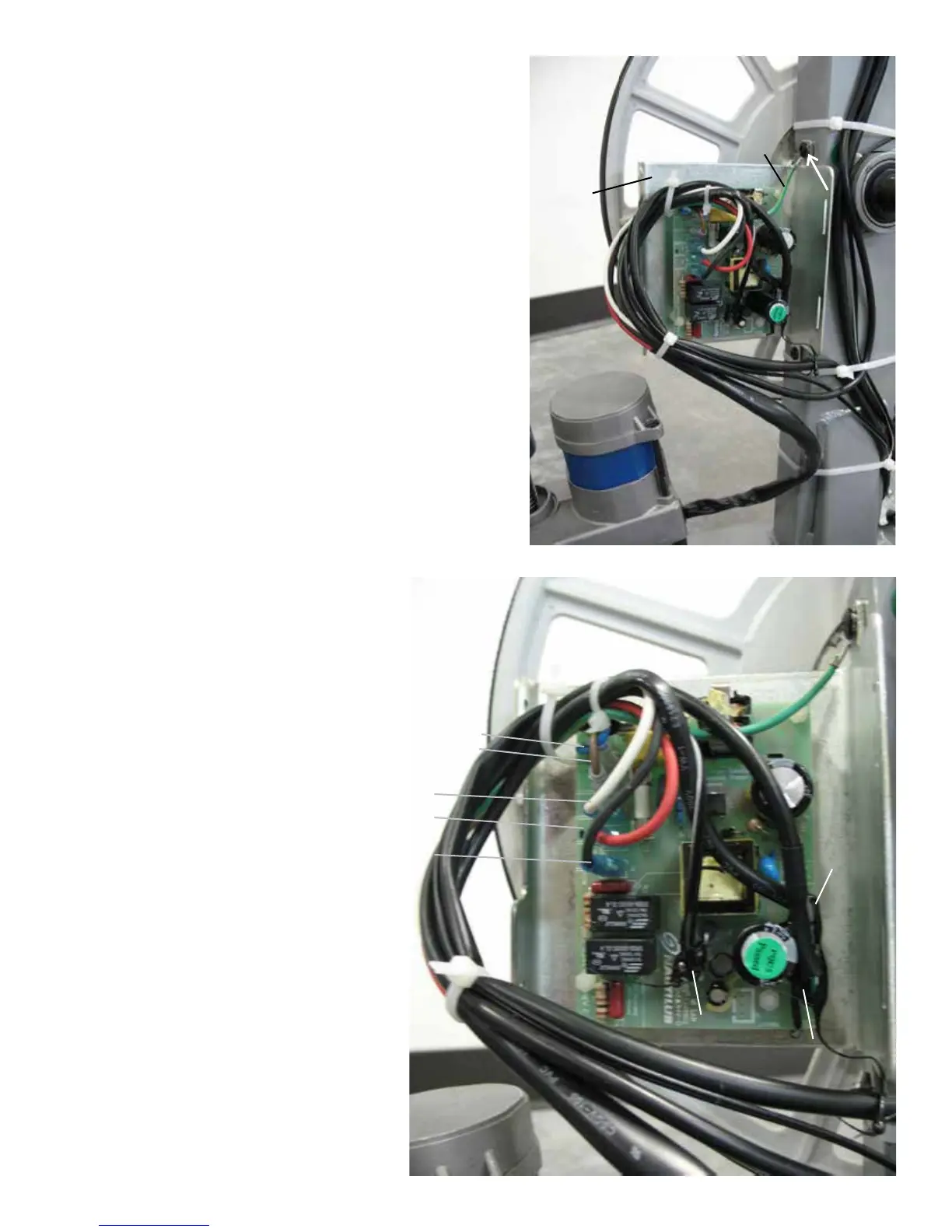

19. Using a #2 Phillips screwdriver, remove the top screw to free the Lift Motor
ground wire. Hand tighten the top screw to hold the MCB Assembly in position
on the Frame until reassembly.
20. Disconnect the Lift Motor cable from the Motor Control Board after noting
the connector locations.
Note: Be sure to note where all cables attach for re-assembly.
Lift motor ground wire
MCB
Assembly

Nautilus E618 Specifications

General

Display	LCD
Programs	29
Heart Rate Monitoring	Contact and telemetry enabled
Bluetooth Connectivity	Yes
User Profiles	4
Maximum User Weight	300 lbs
