99
18. Reassembly is the reverse procedure. Secure the cables
with zipties.
PuttheLeftShroudinpositionrsttoalignthescrewsfor
theRightShroud.Installthetopscrewsrst.
NOTICE: This step may require two people. Be sure
not to crimp any cables.
Note: Self-tapping screws attach the Shrouds to the Frame.
Be sure the tabs in the Motorized Lift Cover snap into the
Side Shrouds.
Installation does not require the use of the crank puller. Be
sure the Crank Arms are connected at 180° from each other.
19. Inspect your machine to ensure that all hardware is tight
and components are properly assembled.
Do not use until the machine has been fully
assembled and inspected for correct perfor-
mance in accordance with the Owner’s Manual.
Note: After replacing the MCB Assembly, the resistance
levels of the machine may be different. The user
should adjust their workout levels accordingly.

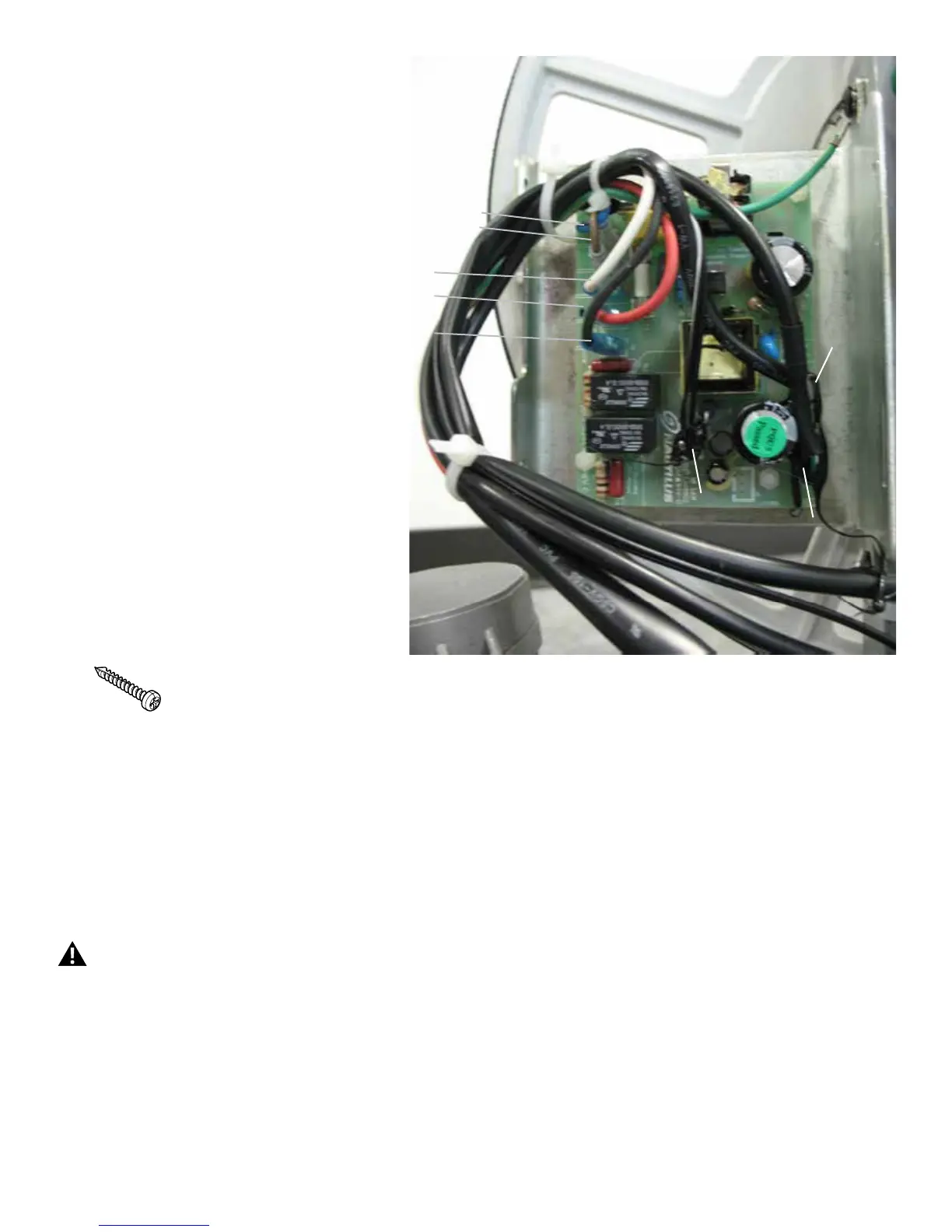

Power Inlet (line)
Power Inlet (neutral)
Lift Motor Wire (to
Console)
Lift Motor position
potentiometer
Servo Control
Lift motor common
(neutral)
Lift Motor CW (line)
Lift Motor CCW (line)
To Next Page
