Nautilus E626 User Manual

7
A decal has been applied to all right (“ R ”) and left (“ L ”) parts to assist with assembly.

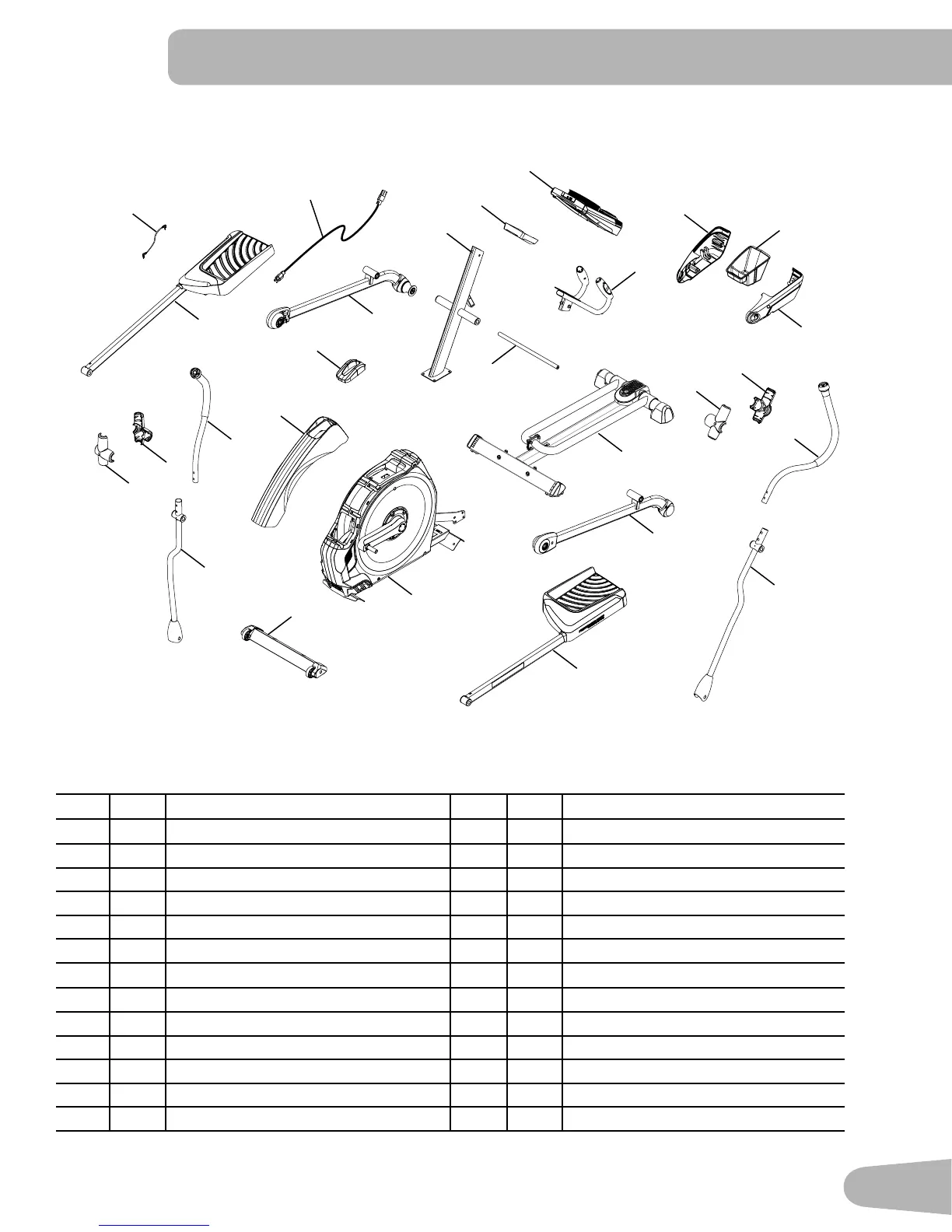

Item Qty Description Item Qty Description
1 1 Console Mast 14 1 Lower Left Handlebar Arm
2 1 Console Junction Cover 15 1 Left Pedal
3 1 Console 16 1 Frame
4 1 Static Handlebar 17 1 Front Stabilizer
5 1 Water Bottle Holder Shroud, Right 18 1 Lower Right Handlebar Arm
6 1 Water Bottle Holder 19 1 Upper Right Handlebar Arm
7 1 Water Bottle Holder Shroud, Left 20 1 Upper Shroud
8 1 Upper Left Handlebar Arm 21 1 Shroud Cap
9 2 Handlebar Shroud, Outer 22 1 Right Leg
10 2 Handlebar Shroud, Inner 23 1 Right Pedal
11 1 Rail Assembly 24 1 MP3 Cord
12 1 Arm Pivot Rod 25 1 Power Cord
13 1 Left Leg 26 1 Silicone Lubricant, Bottle (not shown)
PARTS
1
2
3
5
12
4
6
7
9
10
8
11
13
14
15
16
17
18
20
9
10
19
22
23
21
25
24

Nautilus E626 Specifications

General

Bottle holder	Yes
Product color	Black, Grey
Number of programs	29
Maximum user weight	136 kg
Number of resistors	25
Training displayed parameters	Calories, Distance, Time
