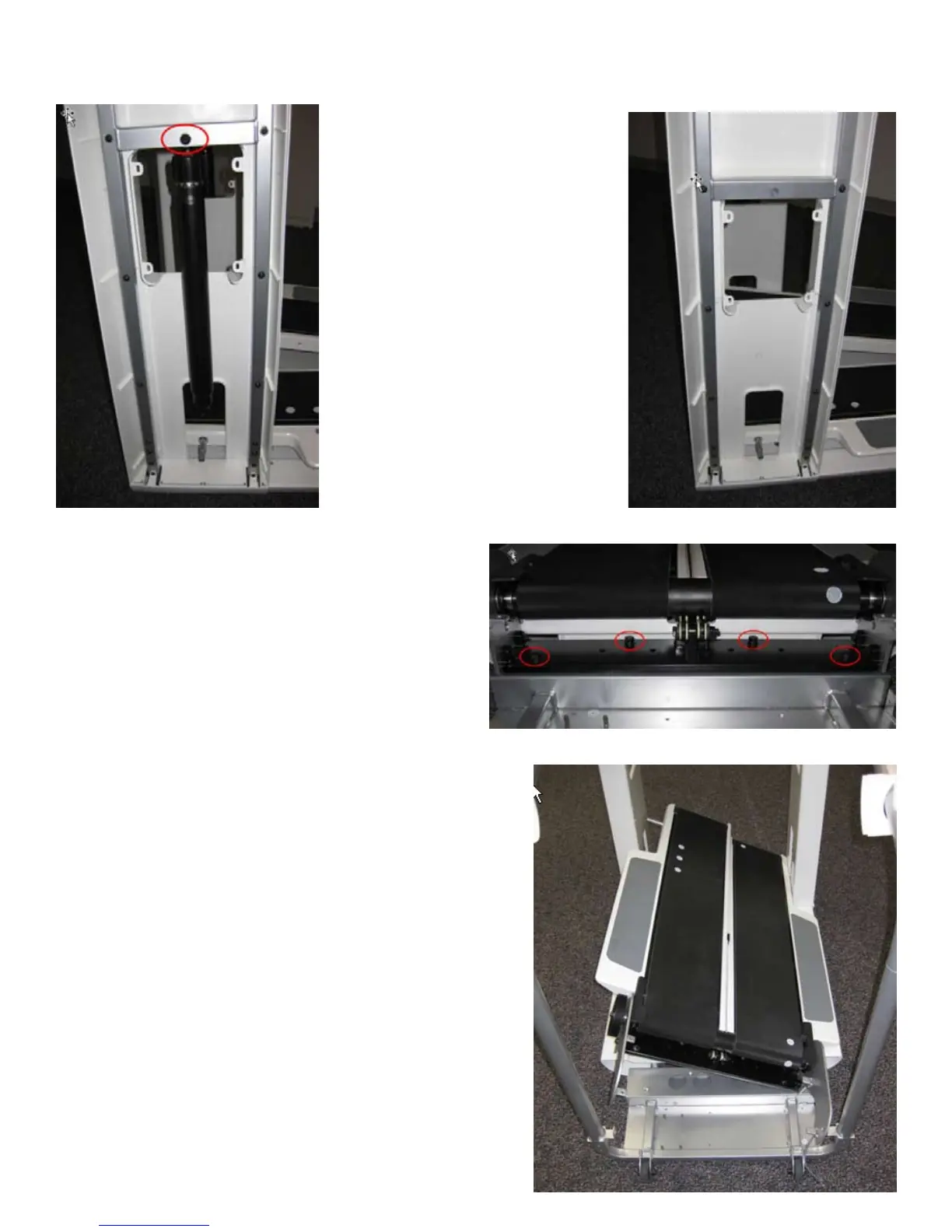

15. Remove the upper Cylinder bolt using a 5 mm hex key and 13 mm wrench.
16. Remove Cylinders.
17. Remove the 4 indicated bolts using a 13 mm wrench.
18. Tilt the Treadle Assembly to the side until the Shock Mounting Post clears the
plastic Upright.
