Nautilus NR 2000 - Computer; Computer Lower Case

ASSEMBLY INSTRUCTIONS

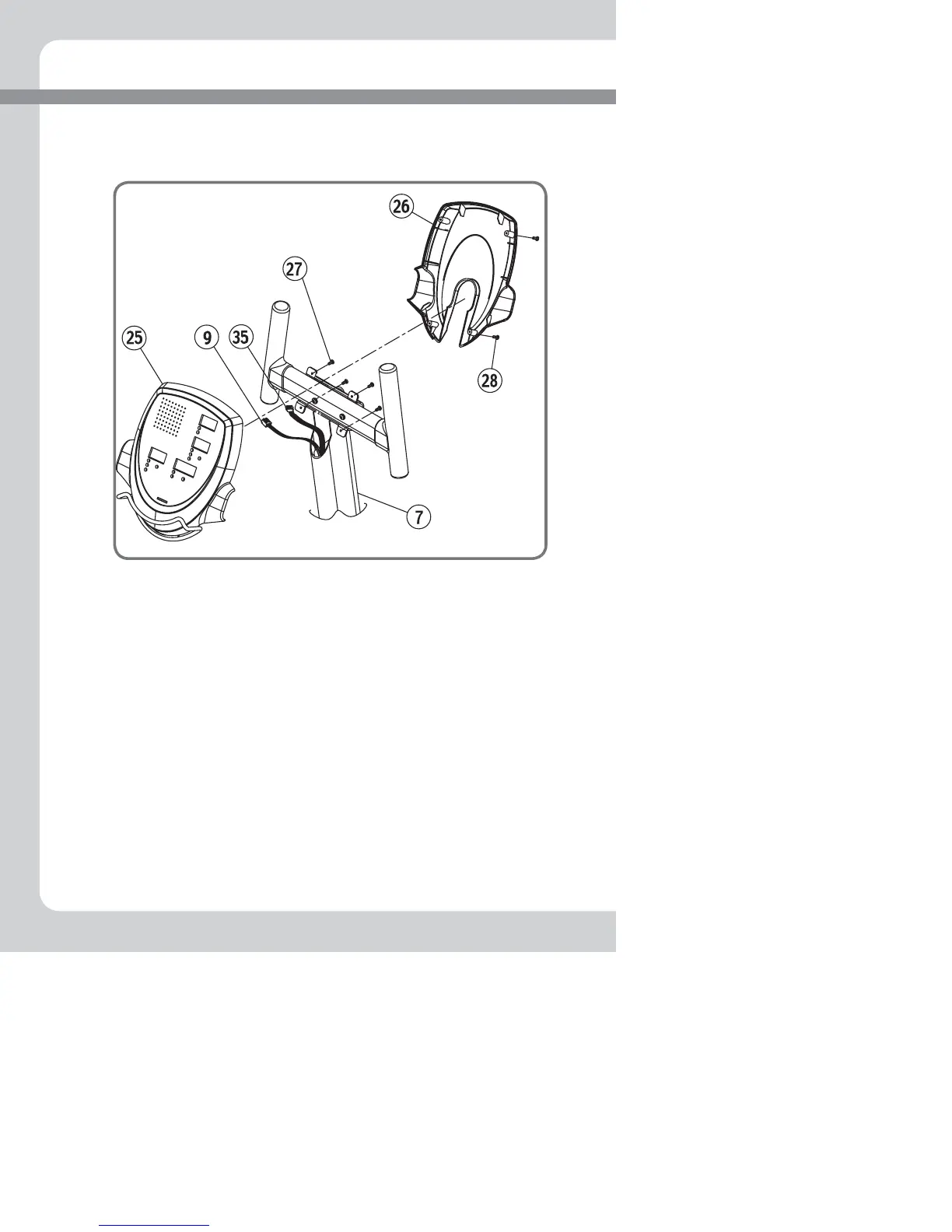

STEP 7: Attaching the Computer Console
Plug the upper speed sensor wire (9), and the upper heart rate wire (35) into the
back of computer (25). Attach the computer (25) to the handlebar mast (7) using
4 – 10mm pan head screws (27). Then attach the computer lower case (26) to the
computer (25) using 4 - 12mm pan head screws (28).
