24

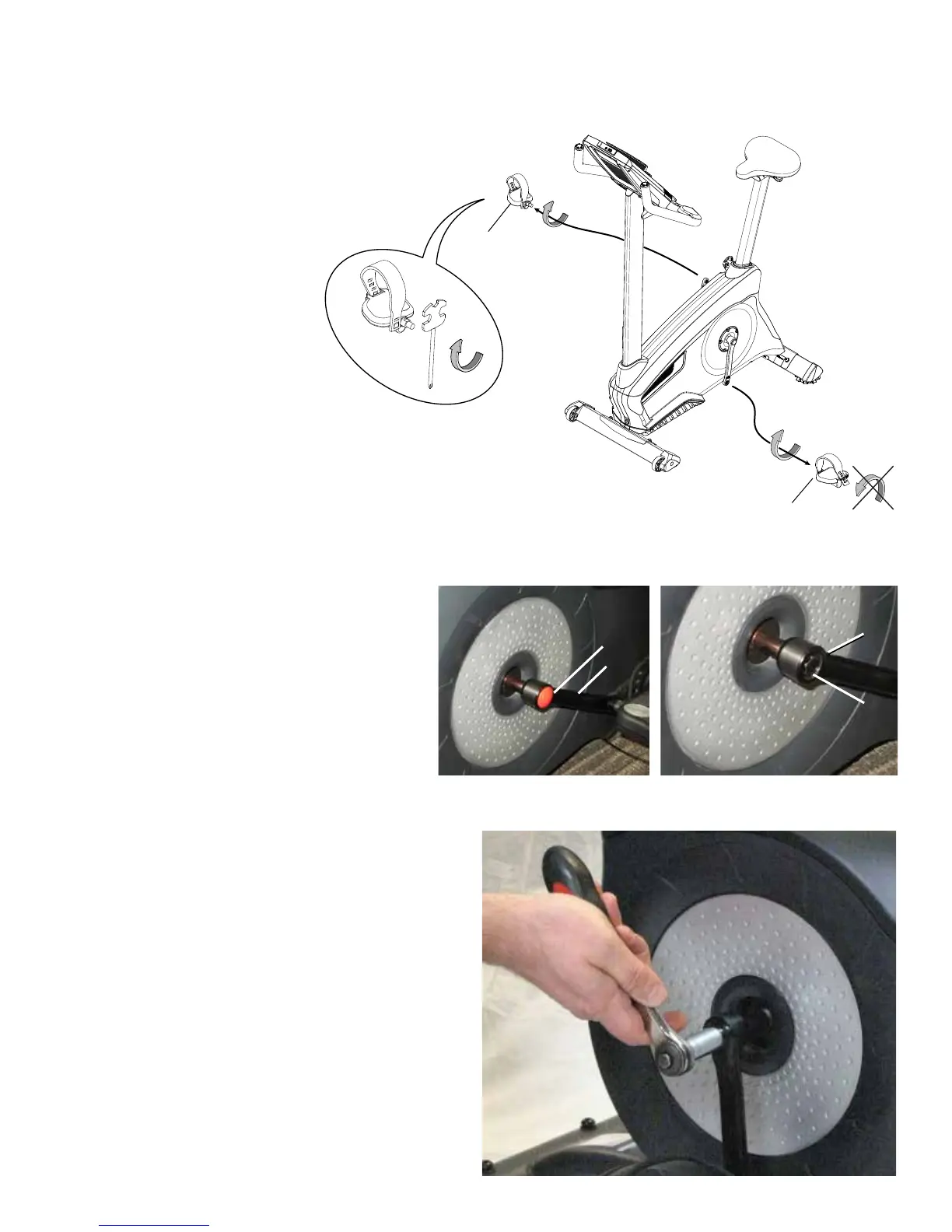

Note: Your machine may not match the image. For reference only.
1. Loosen and remove the old Pedals. Set them safely aside for
reassembly.
Note: The Left Pedal is reverse-threaded. Orientation is based
from a seated position on the bike. The Left Pedal has an “L”,
the Right Pedal an “R”.
2. Using a athead screwdriver, remove the threaded Cap (A) from the
Crank Arm (B) to expose the Hex Head Bolt (C).
3. Using a wrench and socket, remove the Hex Head Bolt (C).
(R)
(L)
A
B
C
B
Crank arm shown is on a Schwinn
®
170 bike.
To Next Page
