Chapter 1: Product Overview

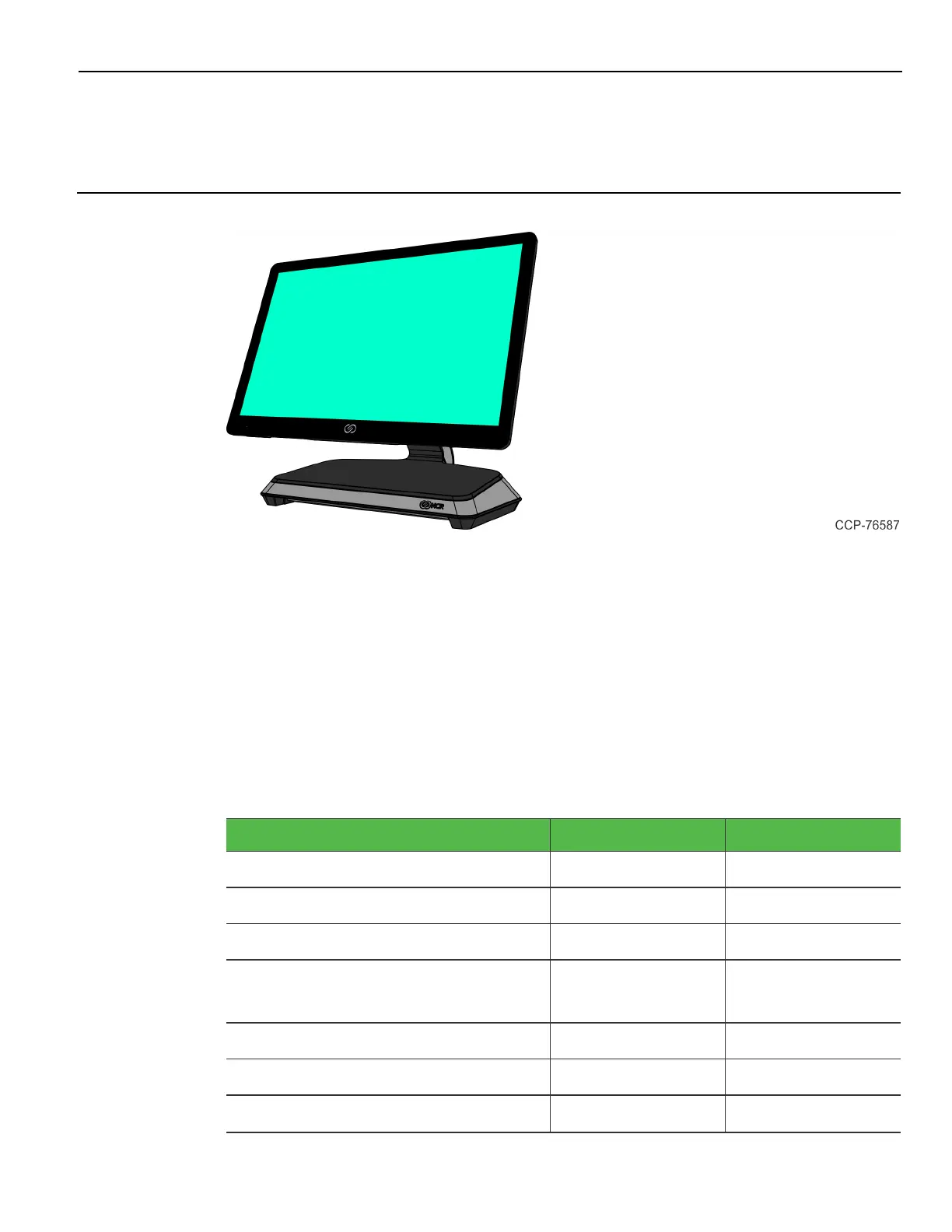

The NCR CX7 All-in-One POS (7772), powered by Intel’s 8th Generation Coffee Lake
chipset, features a sleek design, packed with superior performance. The new, stylish
design provides a wide range of configuration versatility. The ability to configure with
an I/O board that accommodates environments with more USB devices or an I/O board
that accommodates environments with more serial devices gives customers the
flexibility that prevents additional expansion boards or hubs.
The CX7 offers two I/O configurations for the base:
• Retail I/O Base
• Hospitality I/O Base
I/O Board Connectors Retail I/O Hospitality I/O
USB-C to Head 1 1
12VPowered USB 3 1
24VPowered USB 1 1
Serial 1 x RJ50
1 x DB9
4 x RJ12
2 x RJ45
USB3.0 (5V) 2 2
DisplayPort 1 1
Cash Drawer (12/24 V) 1 (dual port) 2
