7.2 Starting up the service station
Connect the cables for the service station as shown in the following figure.
 Plug in the Orderman power supply.
 Plug in the Ethernet network cable.

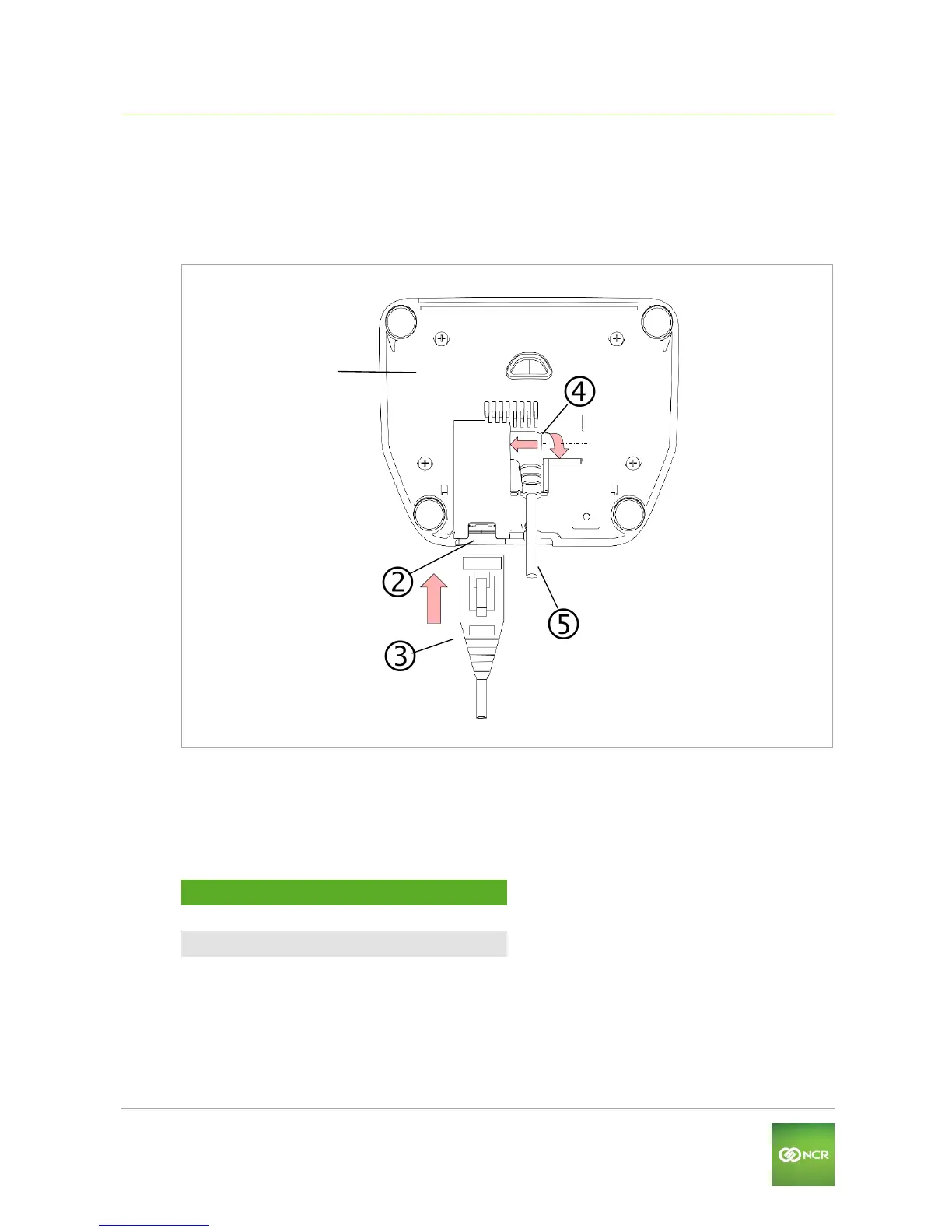

Fig. 11: Connections for the service station
 Service station
 RJ45 Ethernet port
 Ethernet cable
 Plug for Orderman power supply
 Power supply cable
Data transmission
Cable category
100Mbit
Cat5 or higher
1Gbit
Cat5e or higher
 Ensure the power supply cable is correctly routed. Insert the plug fully
into the socket and press the cable to the underside of the housing.
 Plug the network cable into the socket until it clicks. If the cable is
plugged in correctly and the network is active, the LEDs will flash on the
socket and the "Network status LED" lights up.





