18 | Set up and Installation
4.4 Wiring Diagrams

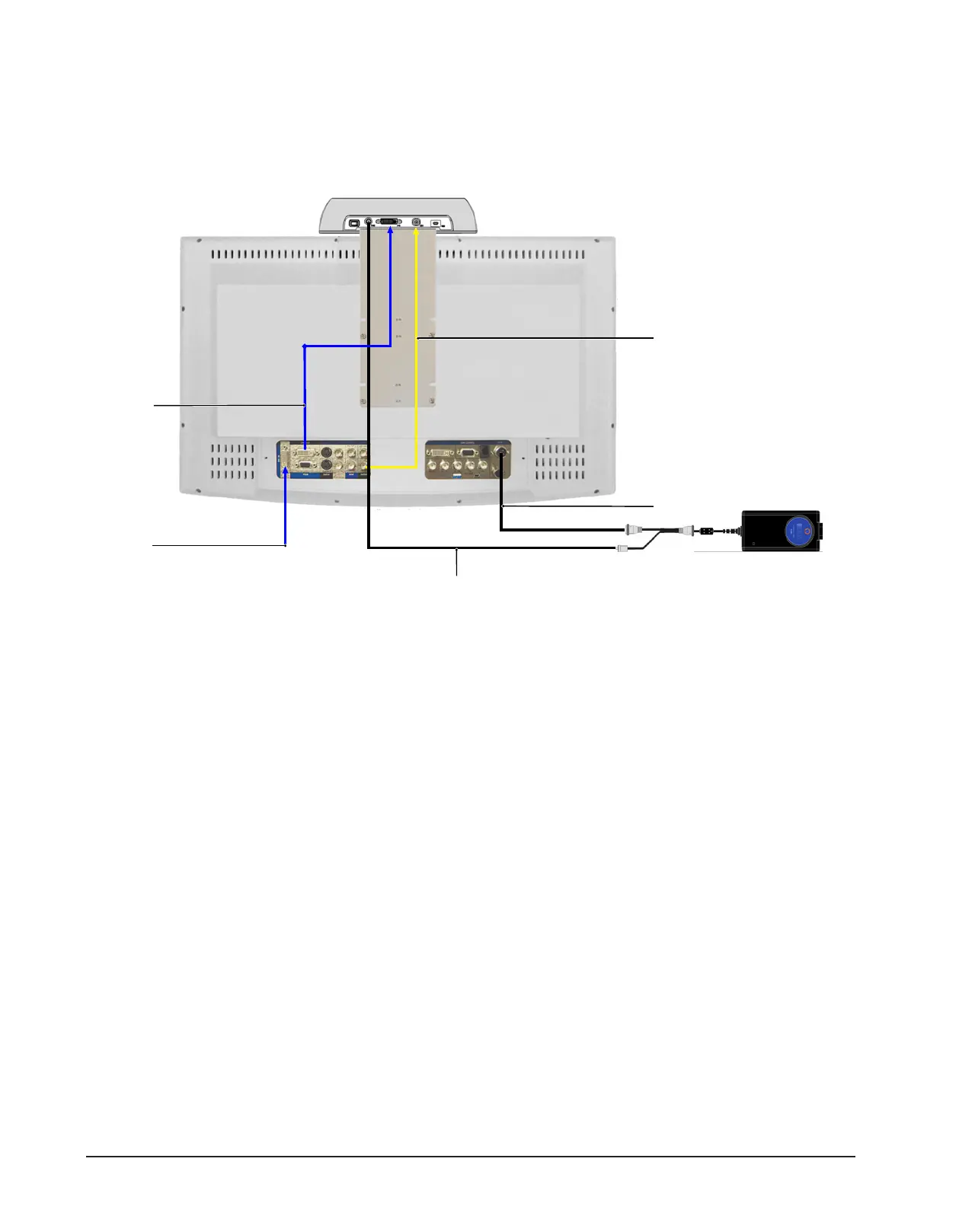

ZEROWIRE® G2 Transmitter Wiring
(1)
(2)
(3)
(4)
(5)
(1) DVI video source
(2) DVI output (DVI cable)
(3) SDI output (optional 3G-SDI cable)
(4) Power to display (24VDC)
(5) Power to transmitter (24VDC)
