Set up and Installation | 13

4 Set up and Installation

4.1 Connector Panels

(1)

(2)

(3) (4) (5) (6) (7) (8)

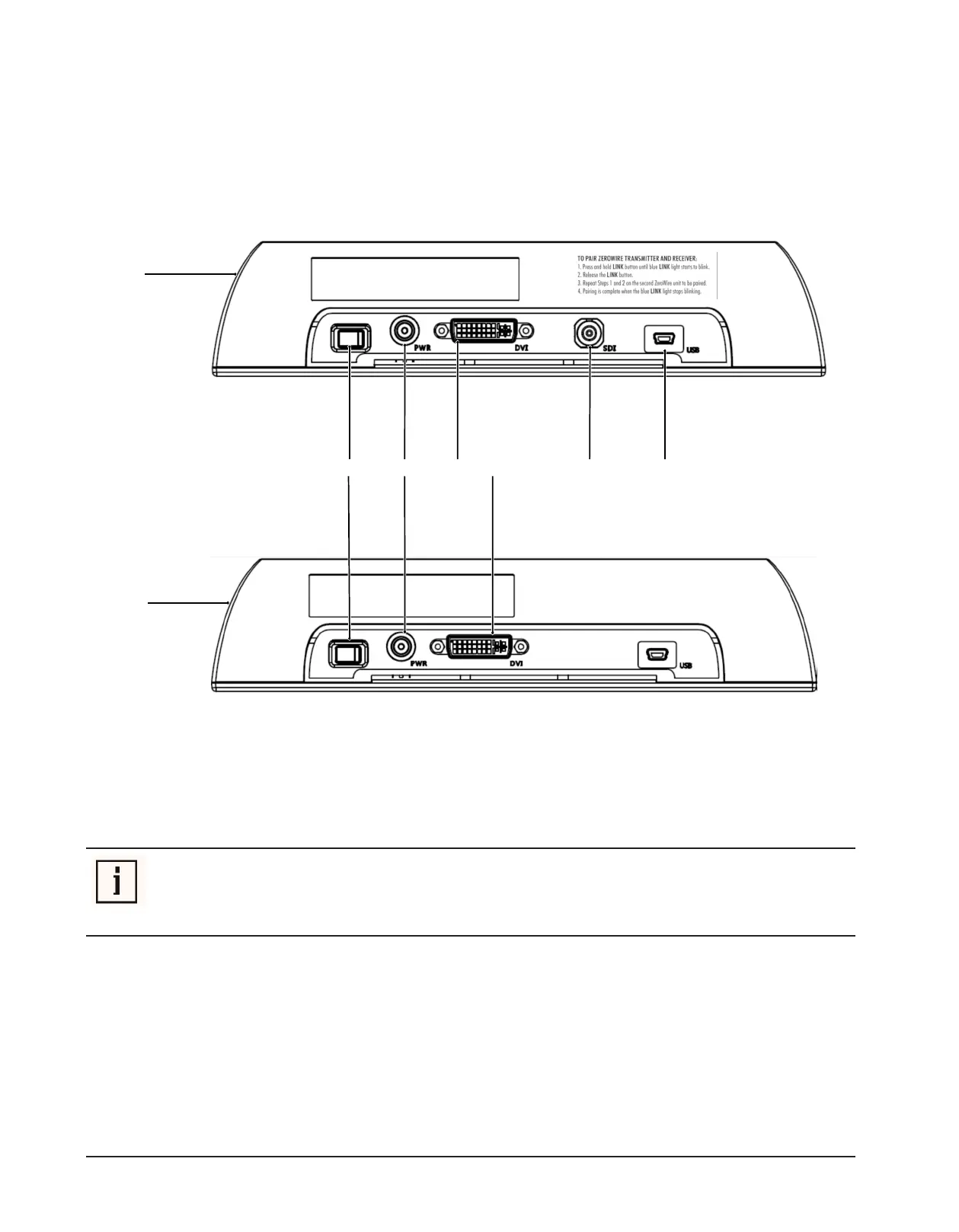

ZEROWIRE® G2 Transmitter and Receiver connector panels

(1)

ZEROWIRE® G2 Transmitter

(5) DVI input

(2)

ZEROWIRE® G2 Receiver

(6) DVI output

(3) ON/OFF switch (7) 3G-SDI input

(4) Power connector (8) USB ports (for firmware updates)

NOTE!

USB ports

are used for

installing updates

to the Transmitter or Receiver firmware, and

not

for use as a general purpose I/O port
