Motor settings (MTR)
Within the motor settings, the Run state, Direction, Motor Type and Diameter
of the motor can be altered. These settings can be changed in the MTR menu.
These settings are all focused directly on the E-roller and its functionalities. A
detailed description of each setting is described below.
Motor run
With the Run setting, the E-roller can be switched On or O. Using this
setting, the motor can be switched on and o without using an external I/O
signal. For example, this can be very useful for testing the E-roller during
installation.
Direction
The direction setting is used to alter the spin direction of the E-roller. The
motor can spin clockwise or counter- clockwise (CW or CCW). In IO-mode
one can also select “IO-Driven”. With this setting active, the controller will
follow the direction provided via external I/O. “Low” signal means CW, “High”
signal means CCW.

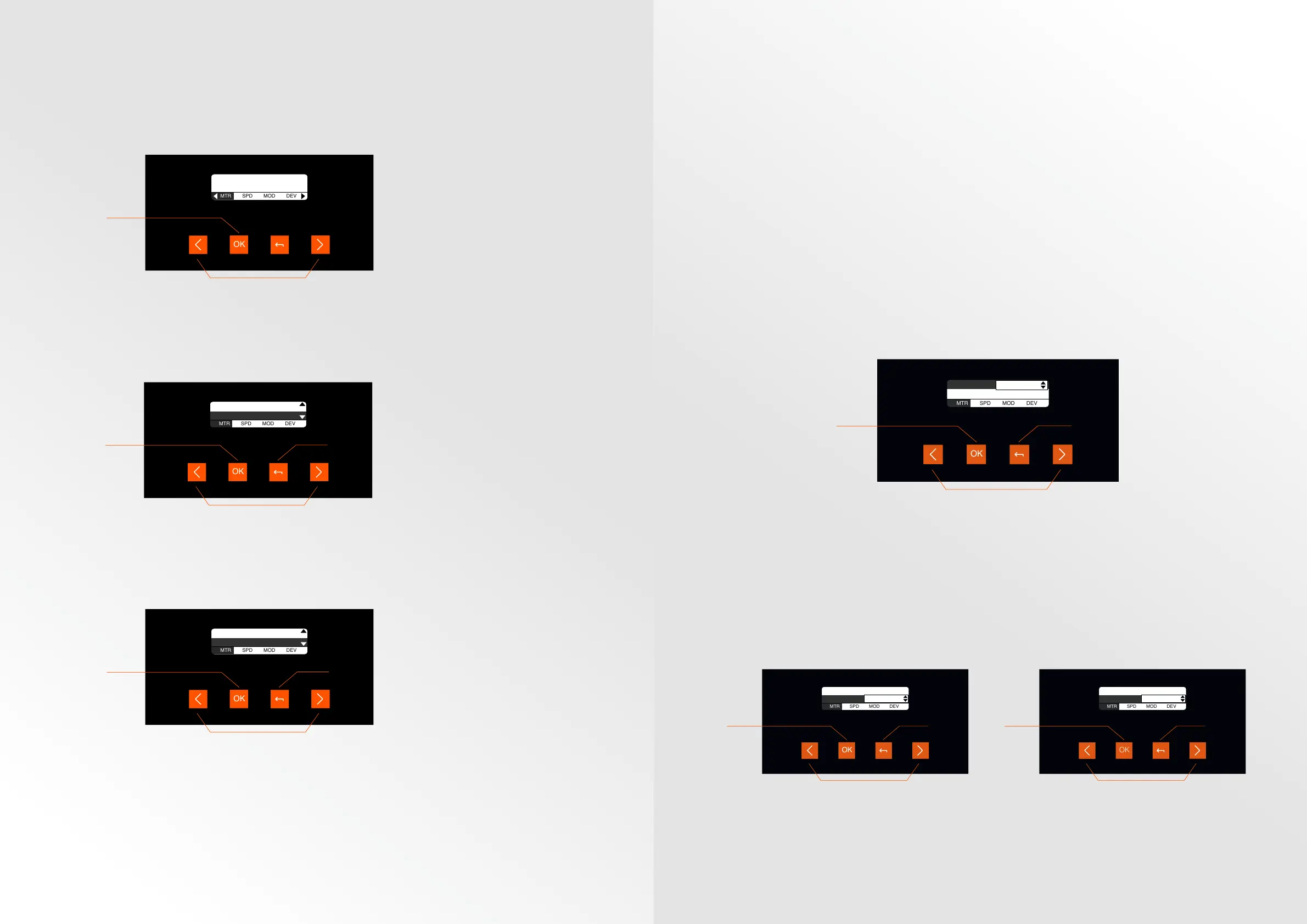

Sub-menu explanation
There are some menus that
contain submenus with more
settings. To open the settings
within these submenus, first
open the desired menu in
which you want to change a
setting using the OK button.
Opening this submenu opens
up more settings to select
and change. You can close
this submenu by pressing the
BACK button. You can also
select one of the new settings
using the OK button. After
which you can change the
setting like any other setting.
After selecting a menu you
can scroll through the settings
located in this menu. In here
you can find the submenu
containing more settings, you
can open this submenu using
the OK button.
Motor Run:
Direction:
O
CW
Scroll through menus
Select desired menu
CW
> Setup
Direction:
Scroll through settings
Select desired submenu
Back
200 rpm
50 mm
+ Diameter:
+ Type:
Change setting
Select desired setting
Back
Motor Run:
Direction:
On
CW
Change setting
Confirm selection
Back
Motor Run:
Direction:
On
CW
CW
Scroll through settings
Confirm selection
Back
Motor Run:
Direction:
On
CW
IO Driven
Scroll through settings
Confirm selection
Back
